Blower Motor Resistor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1996 Mazda B4000, 1996 Mazda B3000, 1996 Mazda B2300, 1995 Mazda B4000, and 1995 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

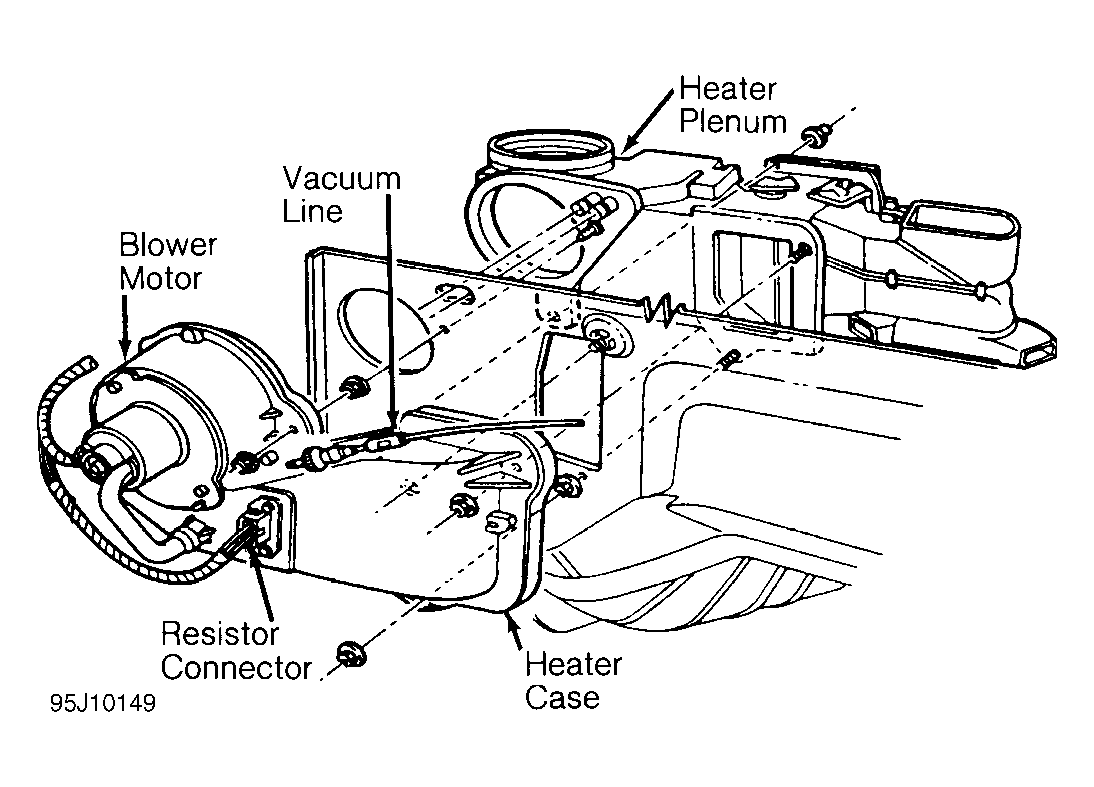

Remove blower motor resistor from blower case. See Figure . Using ohmmeter, check resistance between indicated resistor terminals. See BLOWER MOTOR RESISTOR RESISTANCE table. Replace resistor if resistance is not as specified.
BLOWER MOTOR RESISTOR RESISTANCE
| Blower Switch Position | Terminals | Ohms |
|---|---|---|
| Low | ORG/BLK & RED/ORG | 2.4-3.0 |
| Medium-Low (M1) | ORG/BLK & LT. GRN/WHT | 0.7-0.9 |
| Medium-High (M2) | ORG/BLK & YEL/RED | 0.22-0.28 |
