Engine Controls - Tests W/Codes - 2.0L M/T
>>
Diagnostic Trouble Code Charts
>>
DTC P1195: EGR Boost Sensor
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
DTC P1195: EGR Boost Sensor

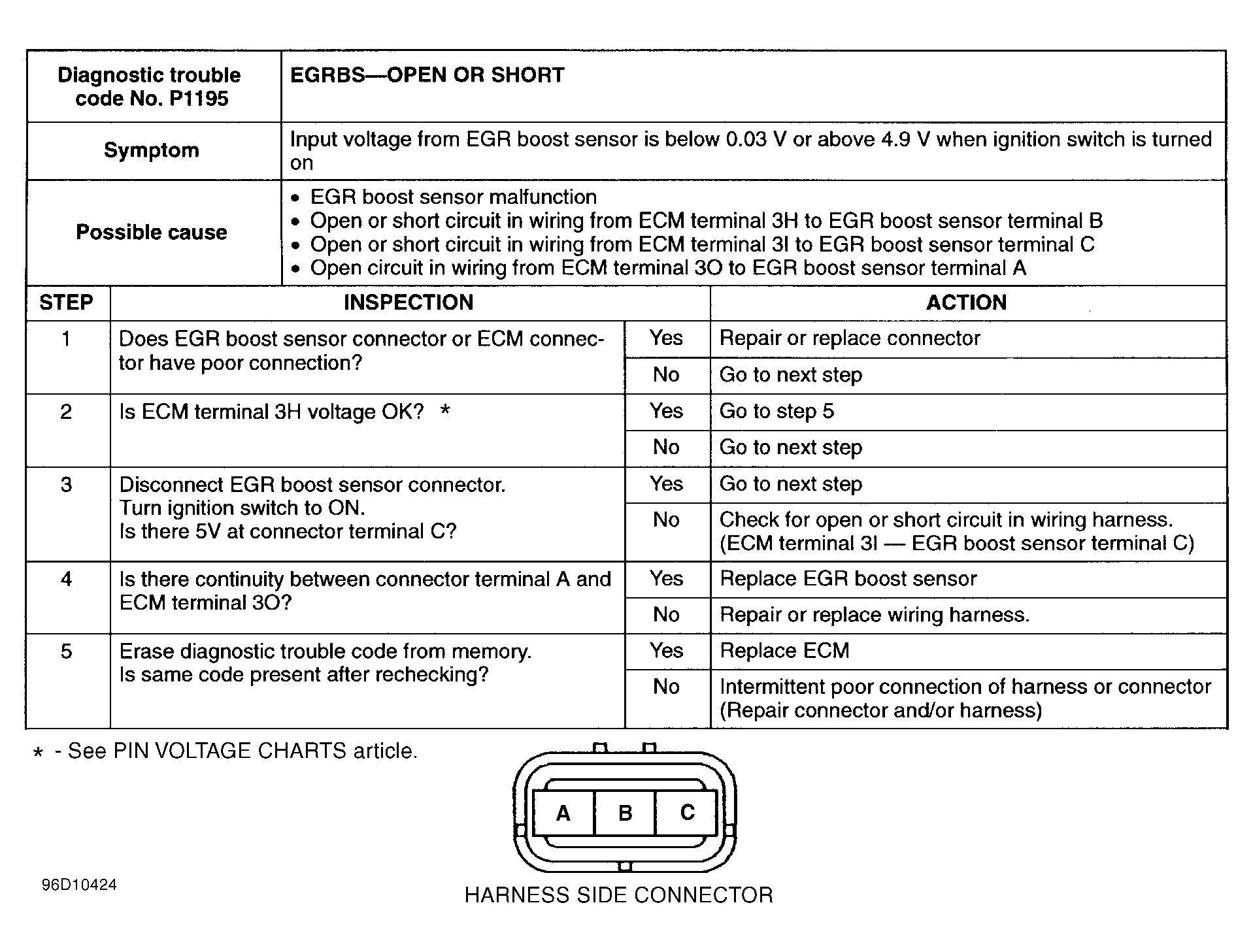

Fig 1: DTC P1195 EGR Boost Sensor
Courtesy of MAZDA MOTORS CORP.
