Control Assembly: Service and Repair

Control Unit Disassembly / Assembly

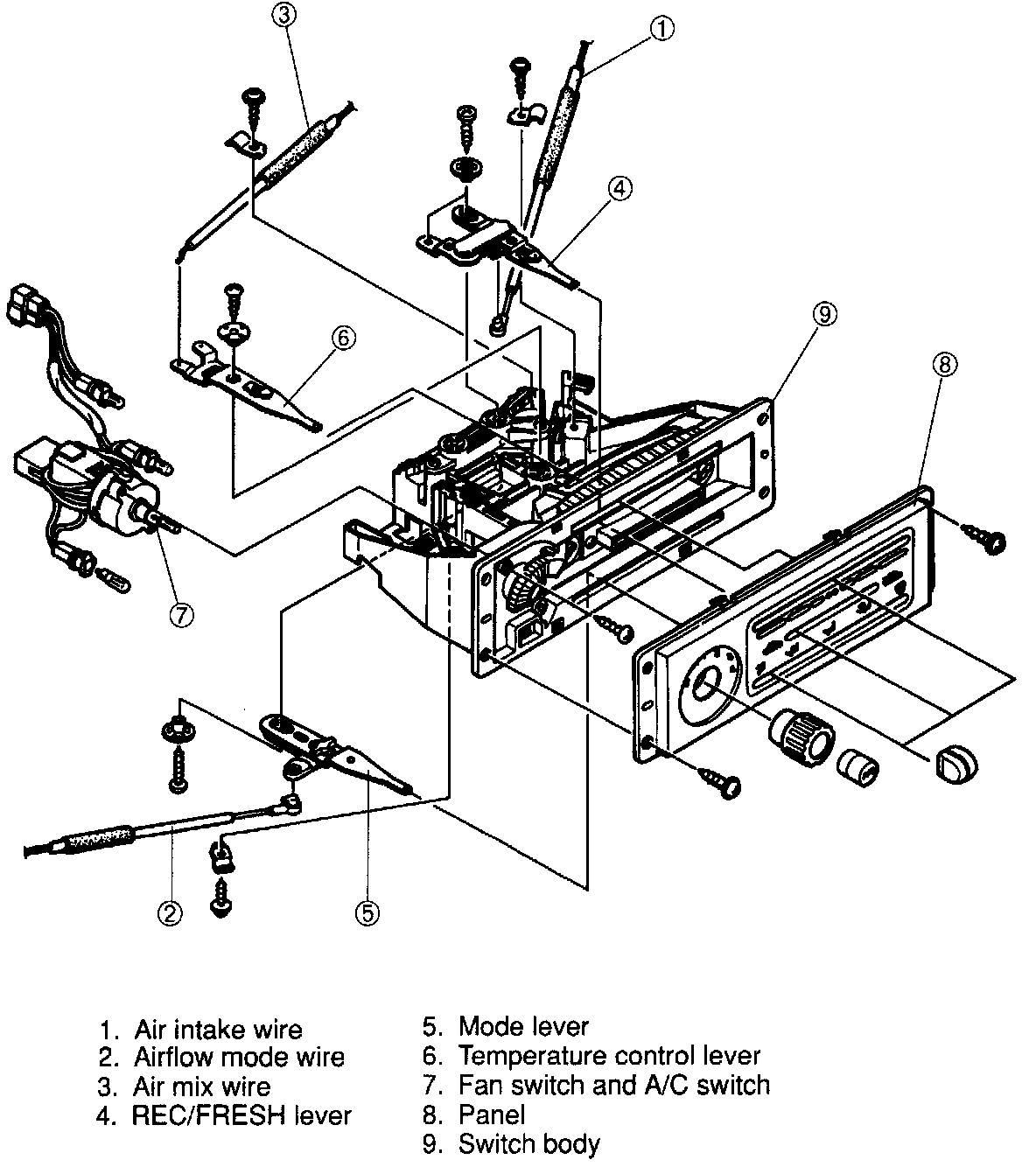

1. Disassemble in the order shown in the figure.
2. Assemble in the reverse order of disassembly.
