Cooling System Specifications: Adjustment: Alternator

Loosen alternator bolts and adjust belt deflection by levering generator outward and applying tension. See Fig 1 and Figure . See ADJUSTMENT SPECIFICATIONS  . Tighten bolts to specification. See TORQUE SPECIFICATIONS  .

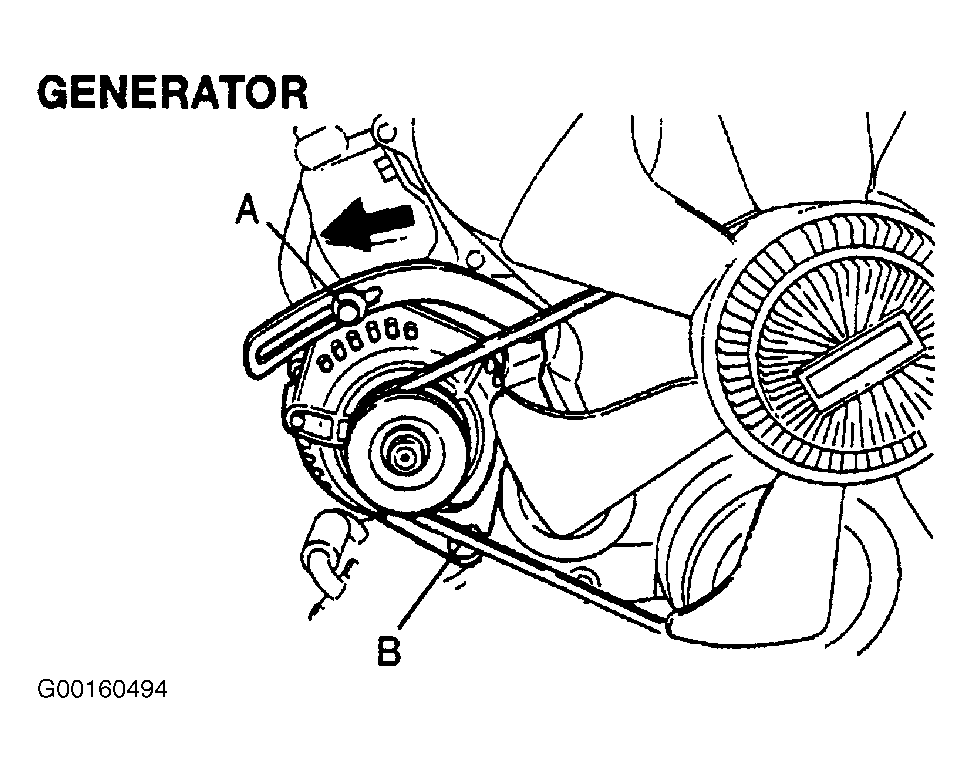

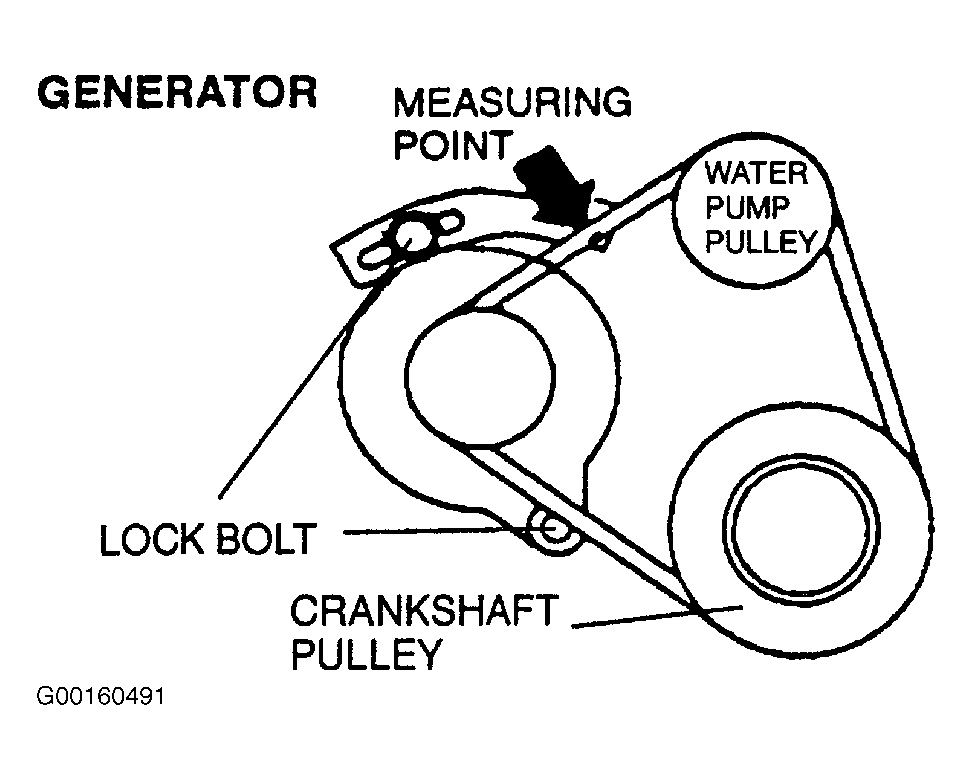

Fig 1: Adjusting Alternator Belt

Courtesy of MAZDA MOTORS CORP.
