DTC P0340: Camshaft Position Sensor Circuit Malfunction

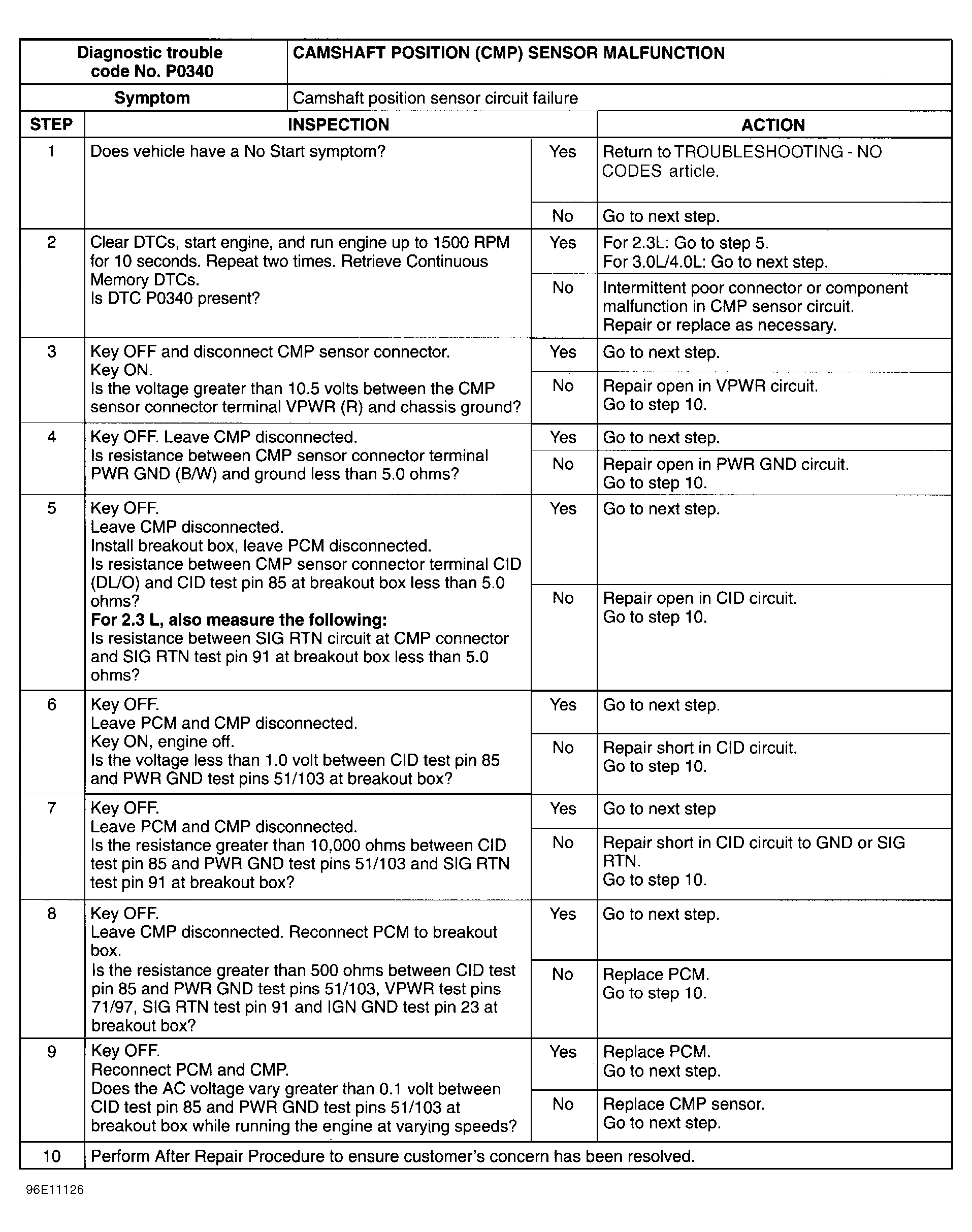

Fig 1: DTC P0340 CPS CIRCUIT Malfunction
G96E11126

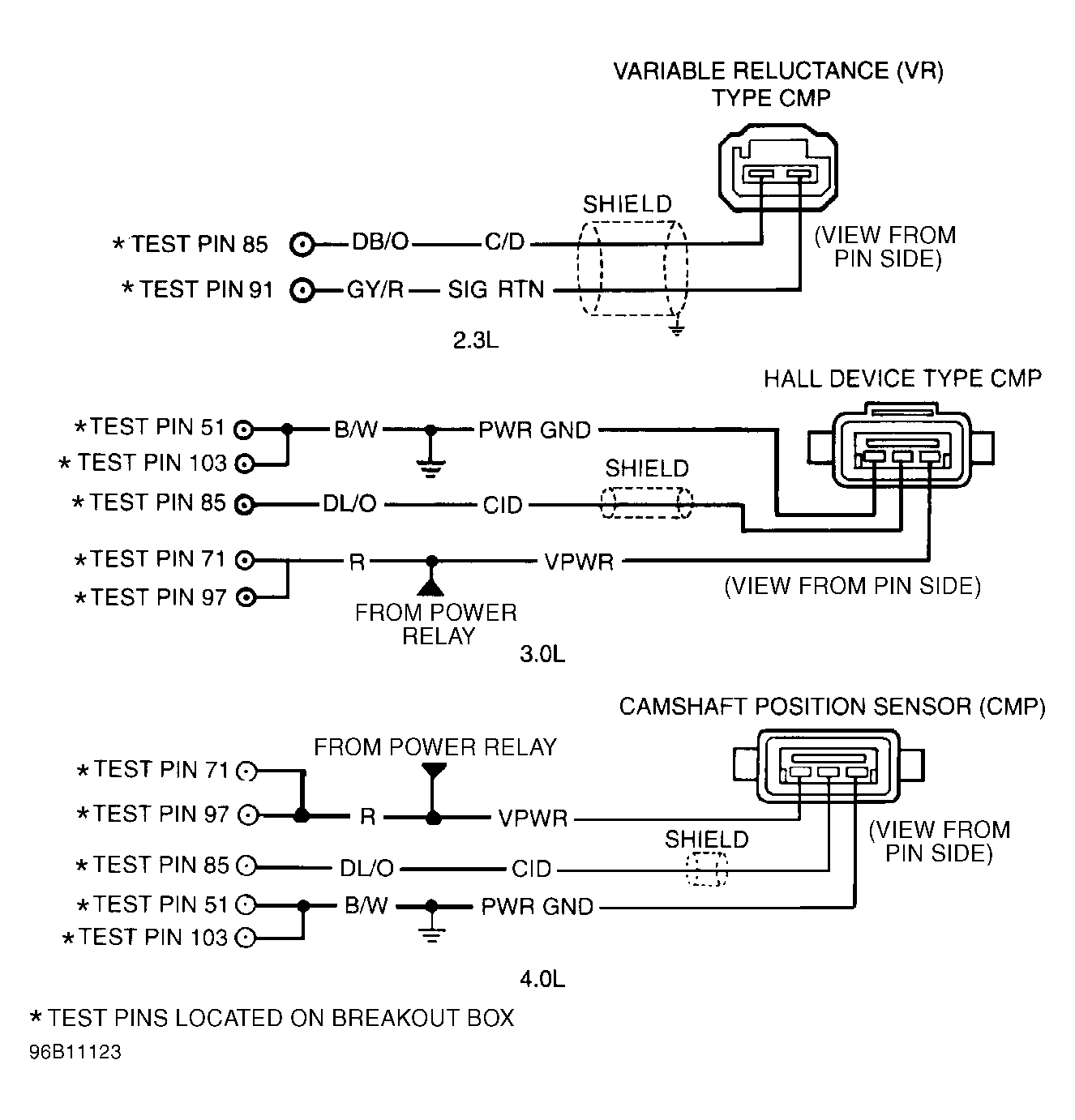

Fig 2: CMP Sensor CIRCUIT Diagram
G96B11123
