With Automatic Transaxle

EXHAUST SYSTEM COMPONENT
REMOVAL / INSPECTION / INSTALLATION
1. Remove in the order shown in the figure.
2. Inspect all parts and repair or replace as necessary.
3. Install in the reverse order of removal.

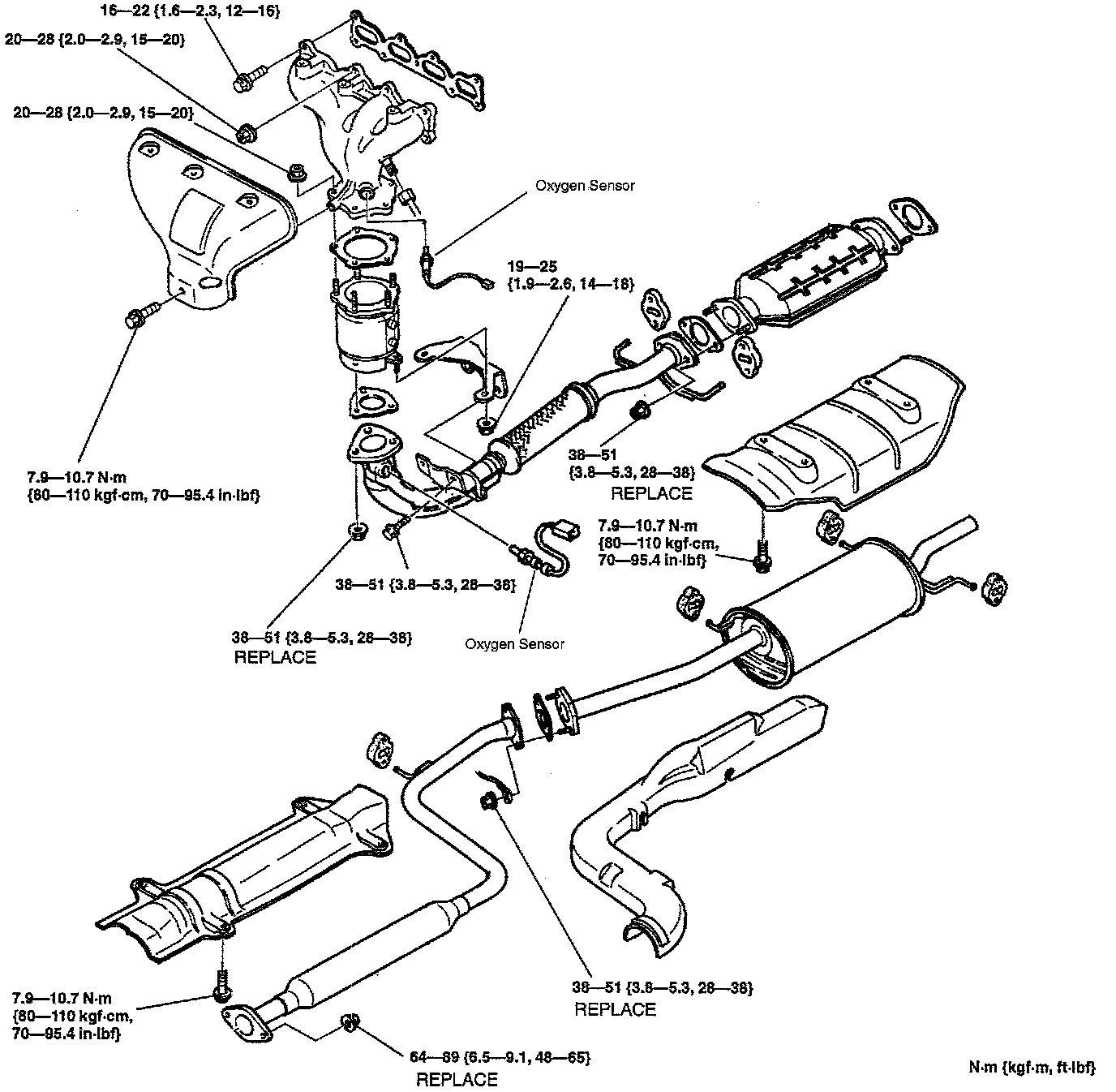

Exhaust System:

1. Main silencer
2. Presilencer
3. Three way catalytic converter
4. Heated oxygen sensor (rear)
5. Front pipe assembly
6. Warm up three way catalytic converter
7. Exhaust manifold insulator
8. Heated oxygen sensor (front)
9. Exhaust manifold
