Basic Starting System Wiring Diagrams

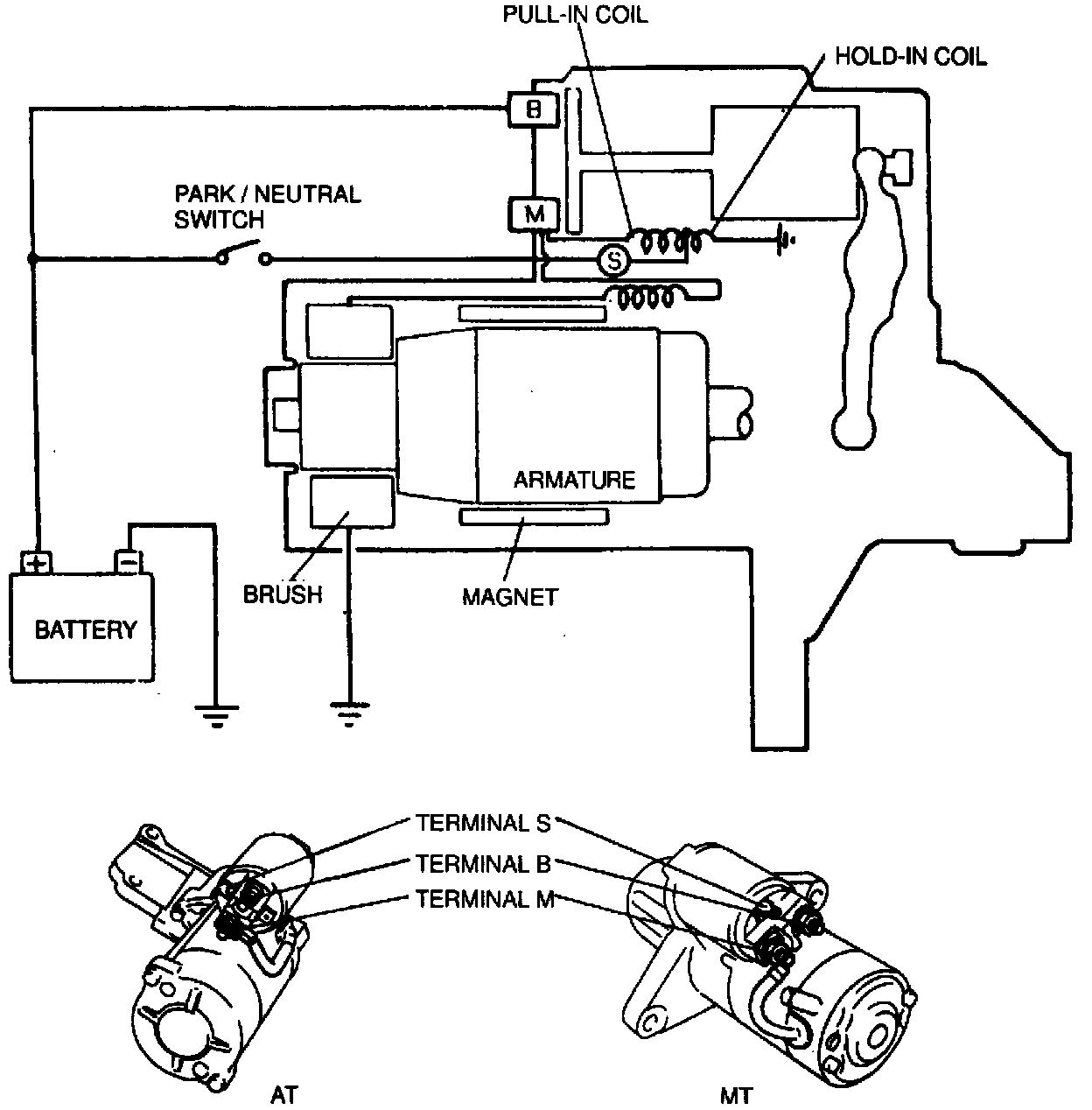

Fig. 16 Conventional (Direct Drive) Starter Wiring Diagram & Terminal Identification:





Fig. 17 Planetary Gear Reduction Starter Wiring Diagram:





Fig. 18 Standard Gear Reduction Starter Wiring Diagram:
