Code 23: Fuel THERMOSENSOR

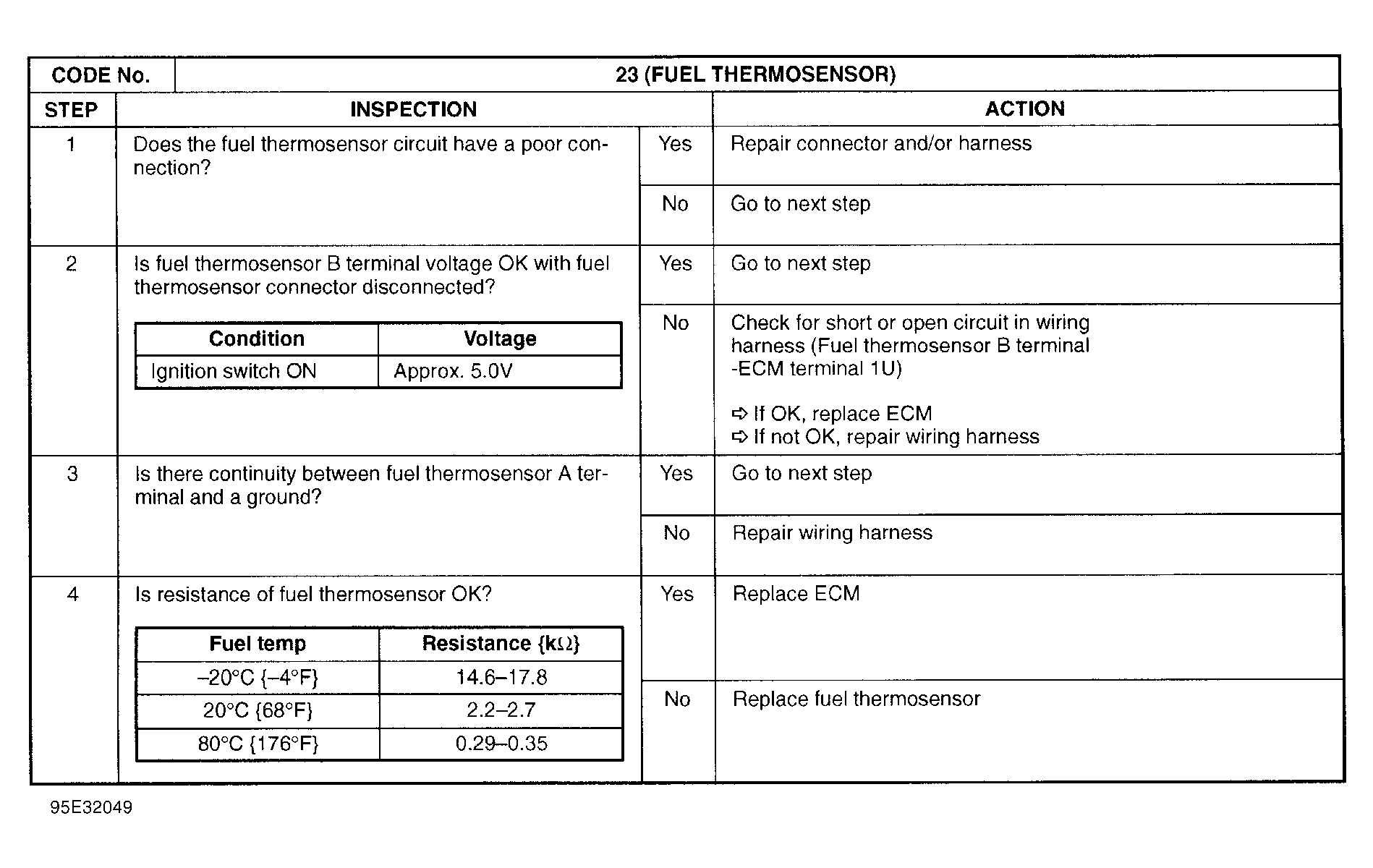

Fig 1: Trouble Code No. 23 Fuel Thermosensor
G95E32049
Fig 2: Trouble Code No. 23 Fuel Thermosensor Circuit Diagram
G95I32050
