Code 31: Secondary Air By-Pass Valve

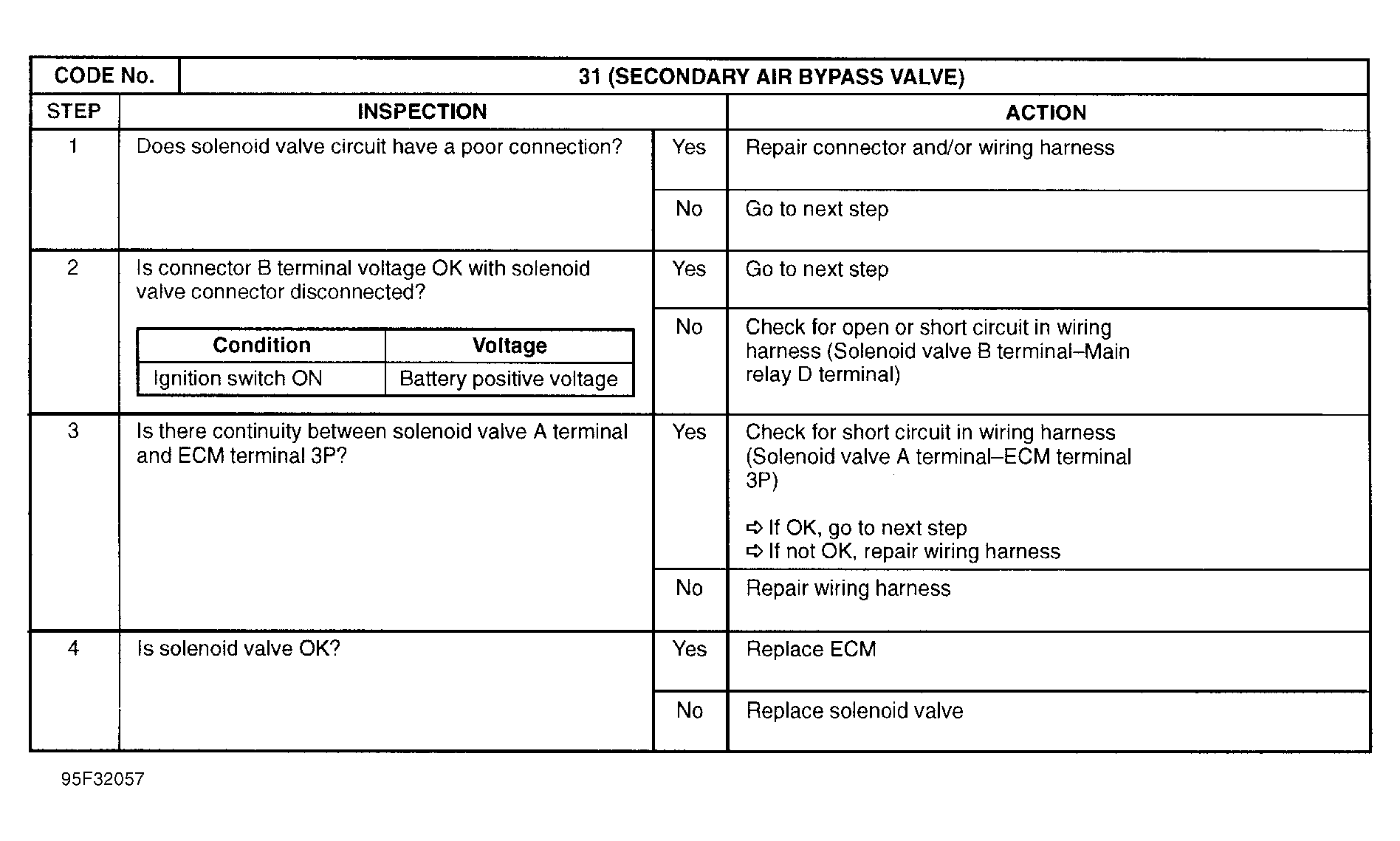

Fig 1: Trouble Code No. 31 Secondary Air By-Pass Valve
G95F32057

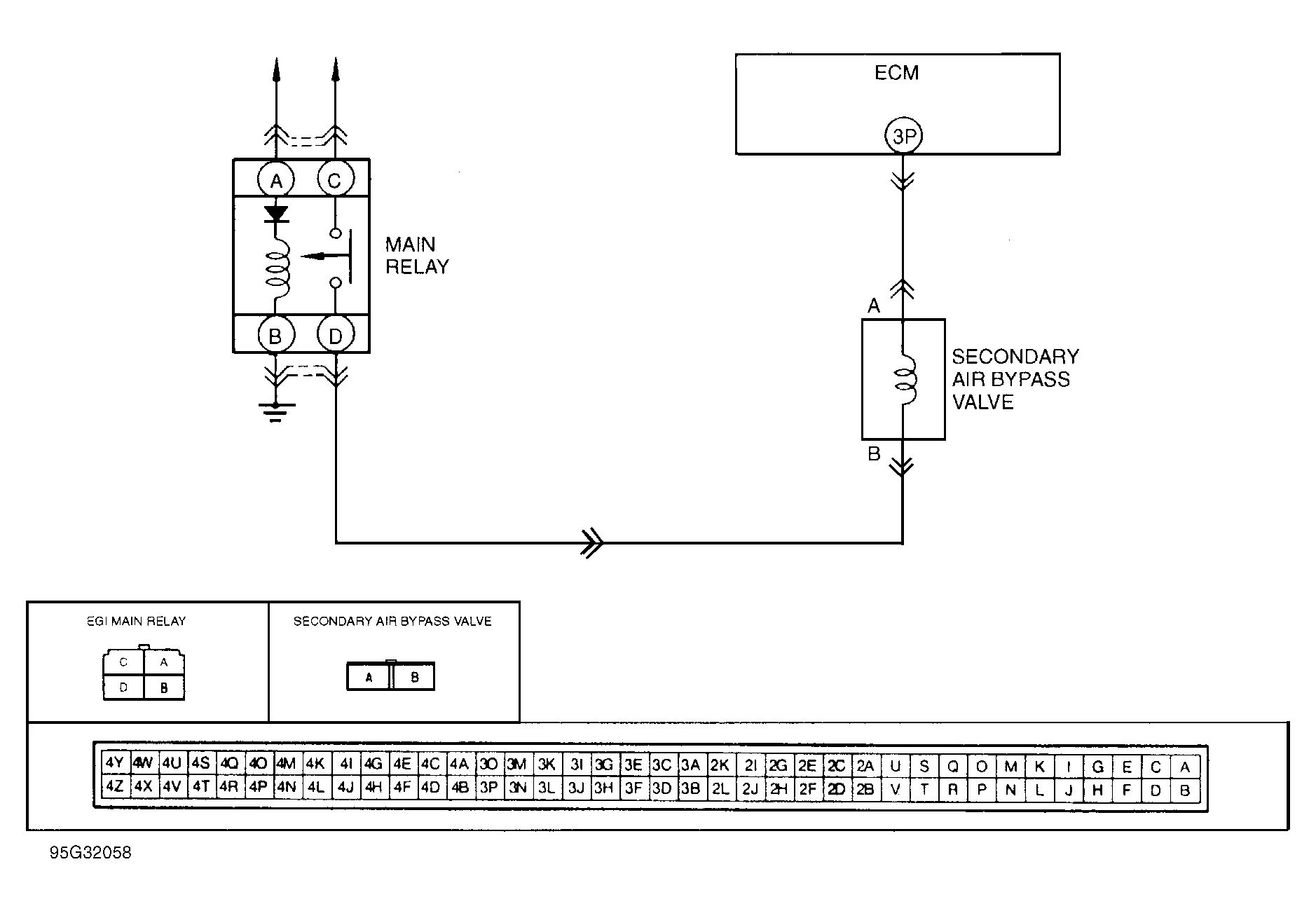

Fig 2: Trouble Code No. 31 Secondary Air By-Pass Valve Circuit Diagram
G95G32058
