Cruise Control Switch: Testing and Inspection
Refer to
Fig. 48
for testing.

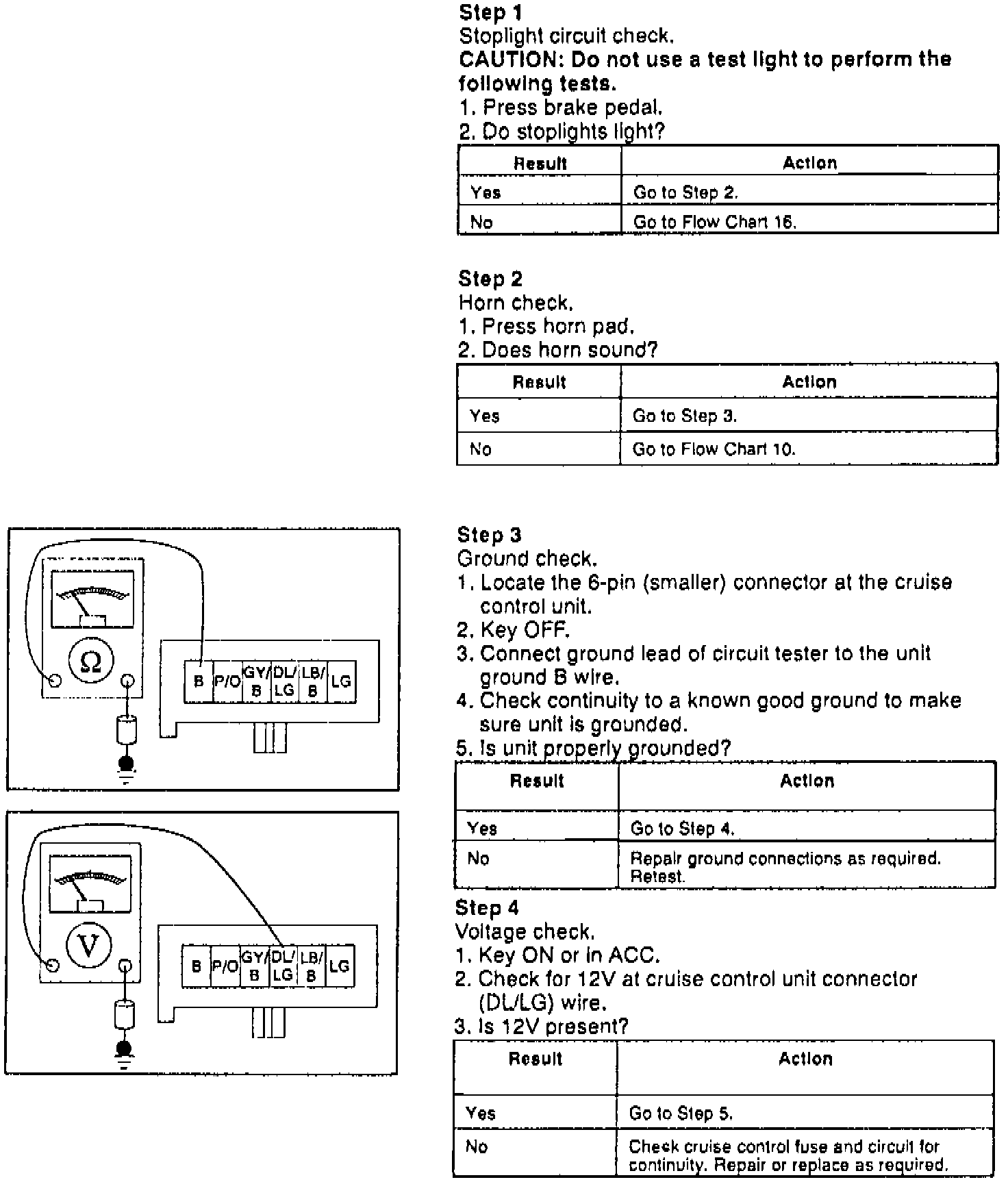

Fig. 48 Control Switch & Circuit Test (part 1 Of 5):

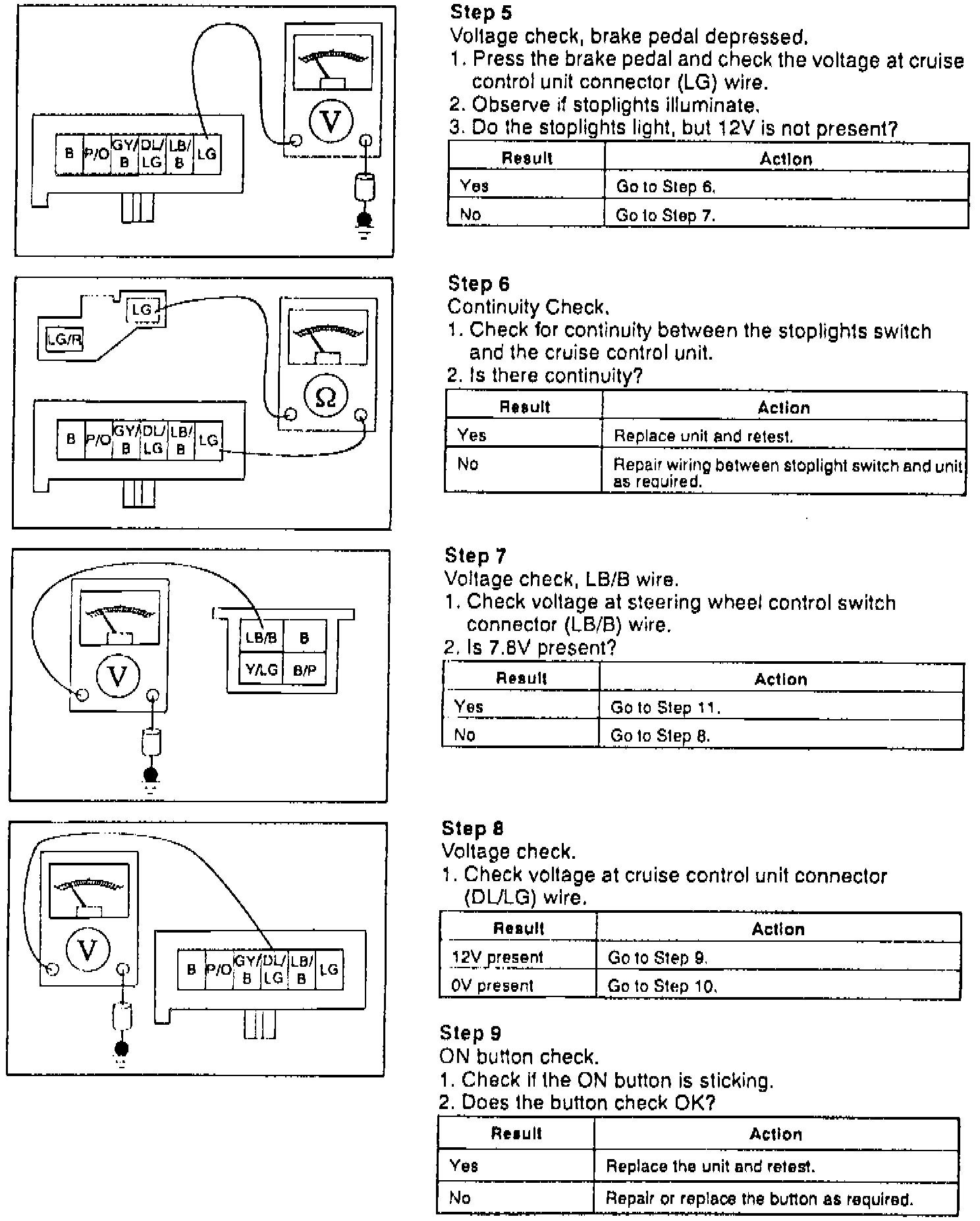

Fig. 48 Control Switch & Circuit Test (part 2 Of 5):

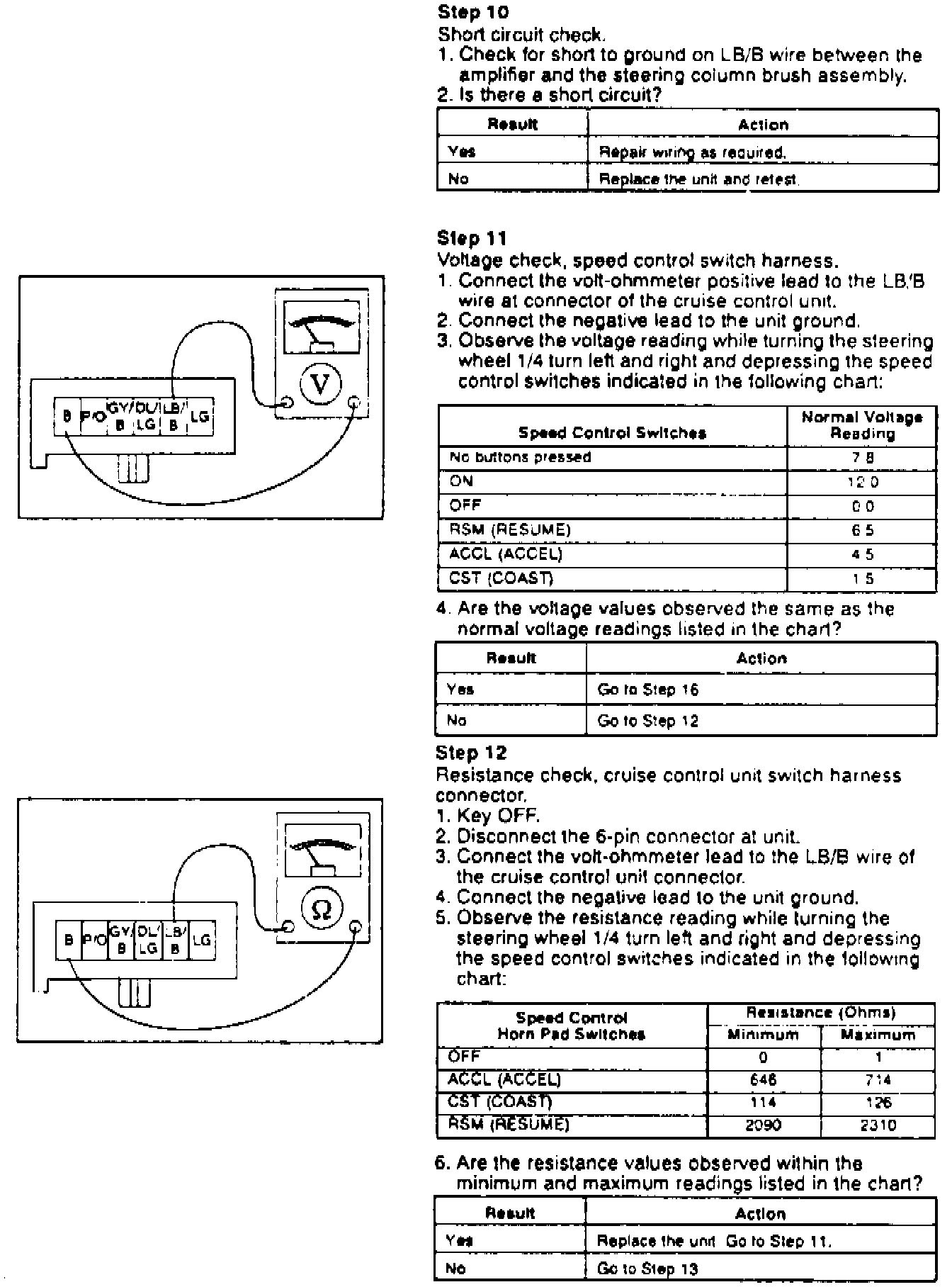

Fig. 48 Control Switch & Circuit Test (part 3 Of 5):

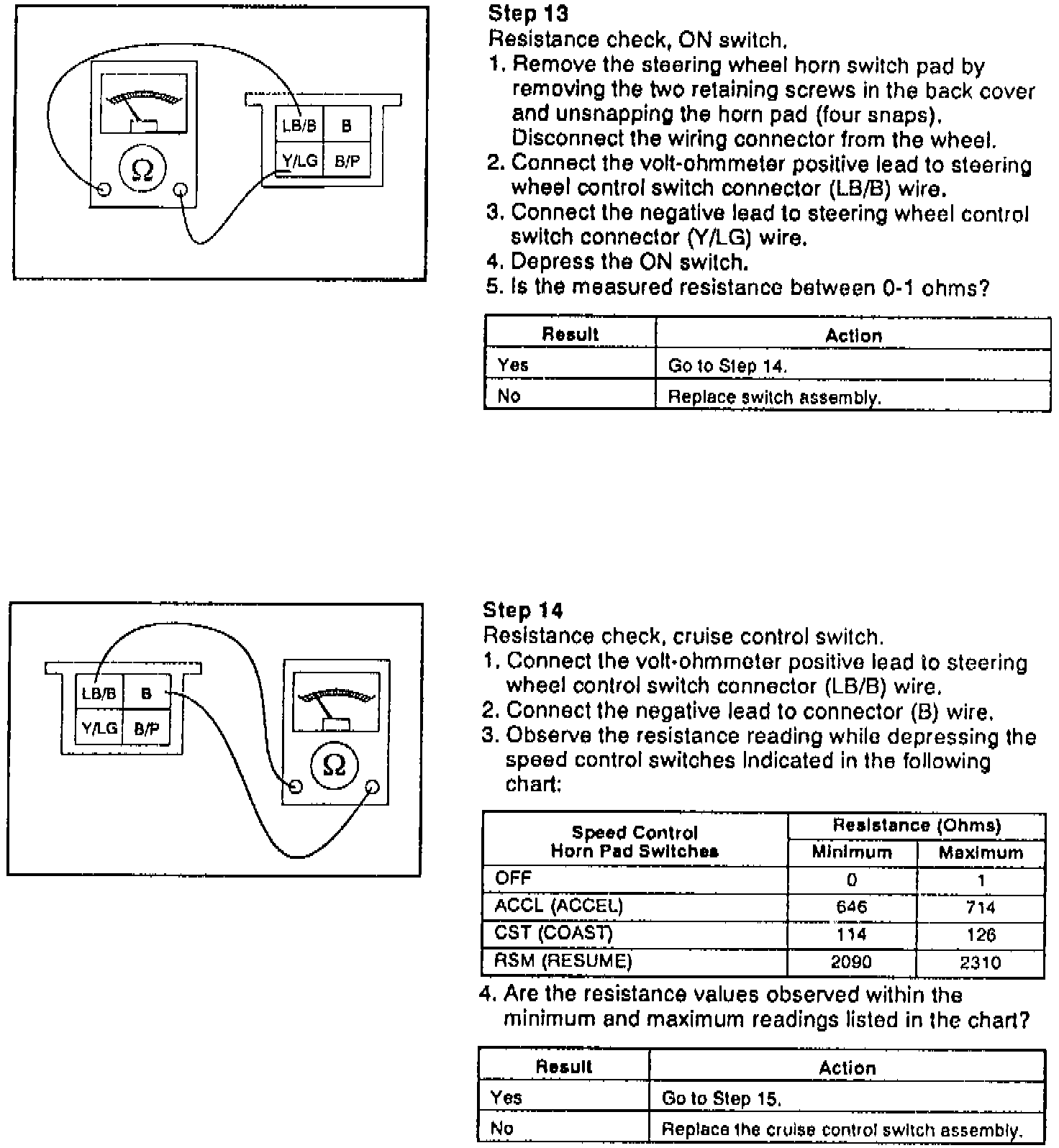

Fig. 48 Control Switch & Circuit Test (part 4 Of 5):

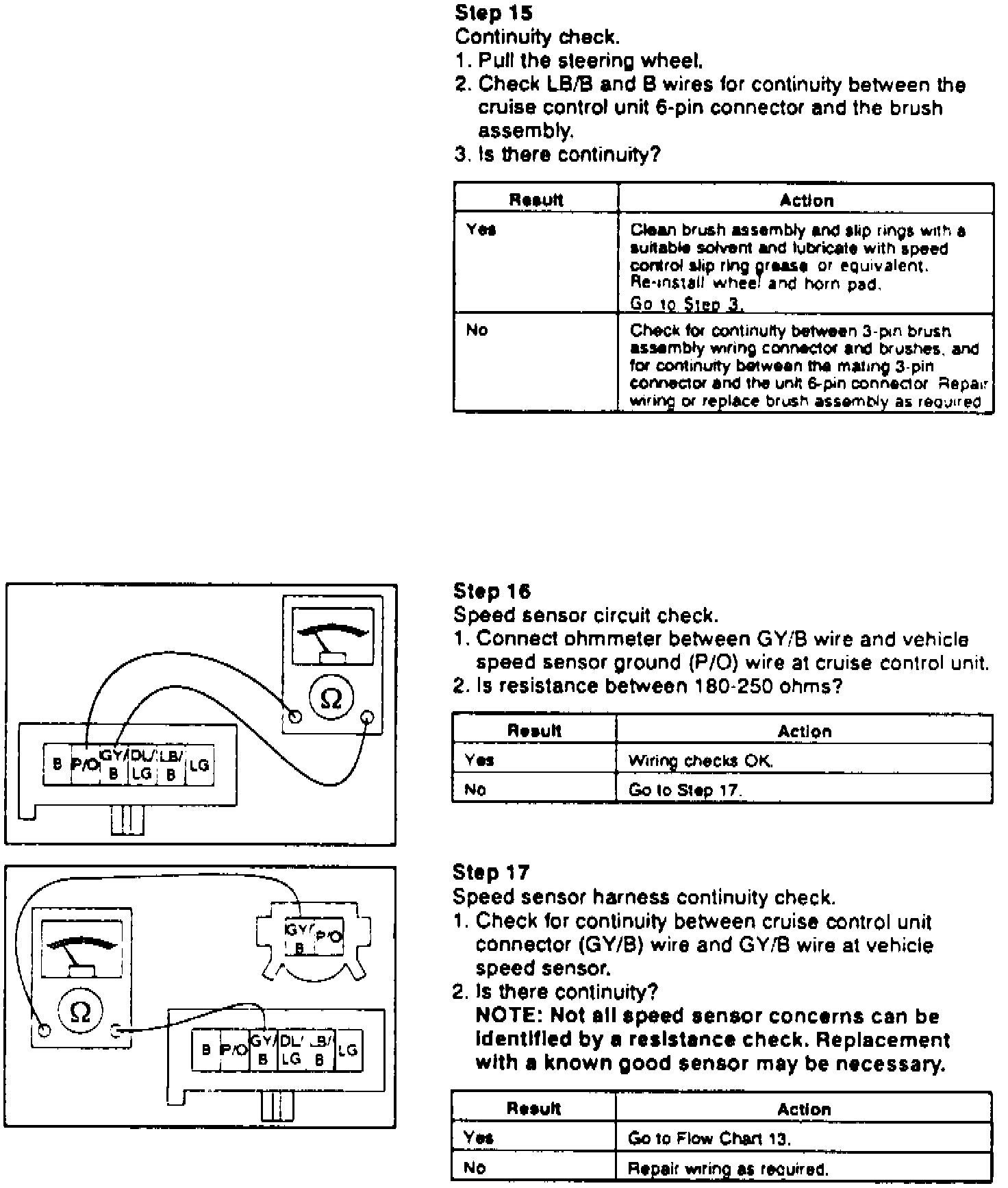

Fig. 48 Control Switch & Circuit Test (part 5 Of 5):
