Code 9: Engine Coolant Temperature Sensor

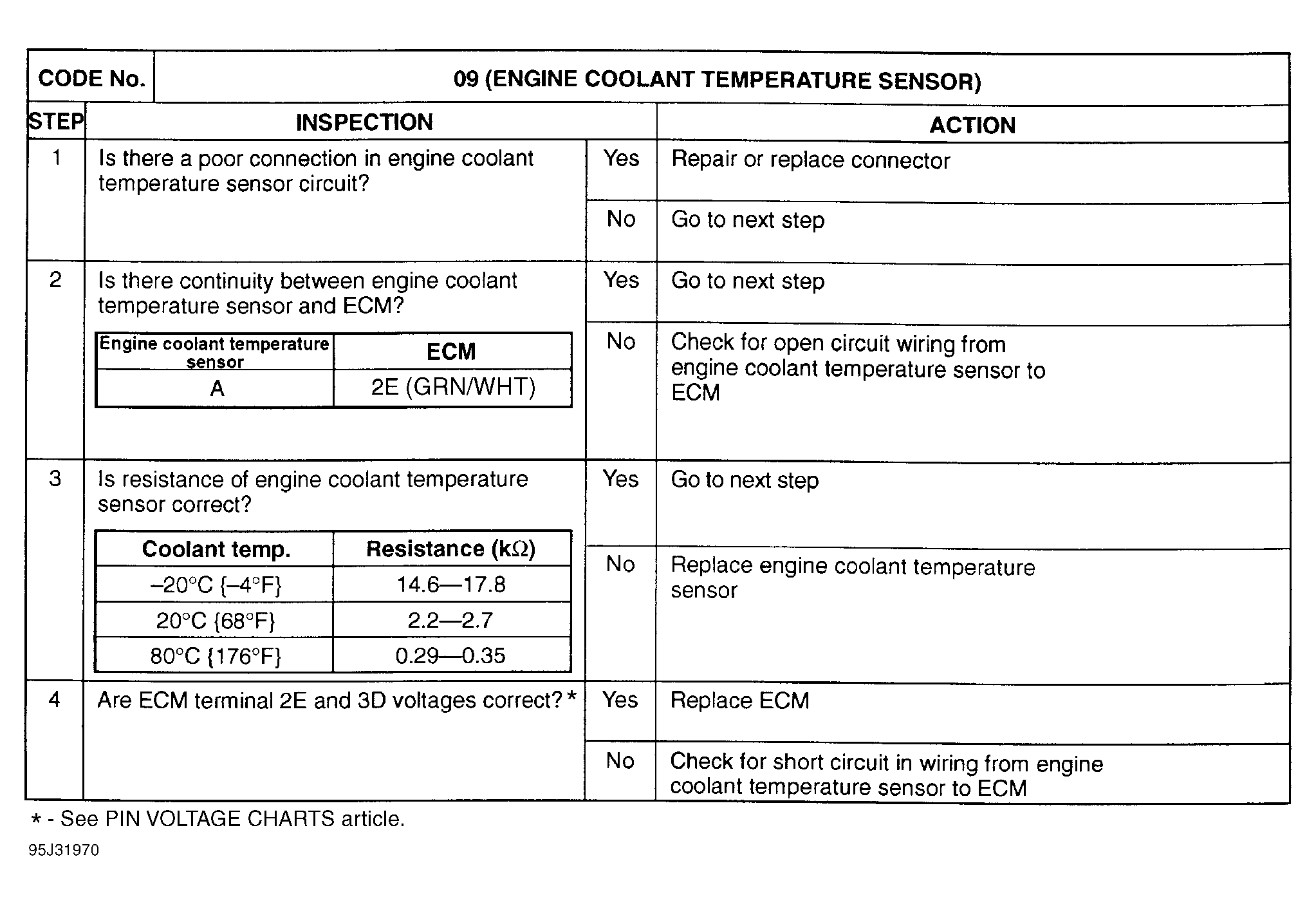

Fig 1: Trouble Code No. 9 Engine Coolant Temperature Sensor
G95J31970

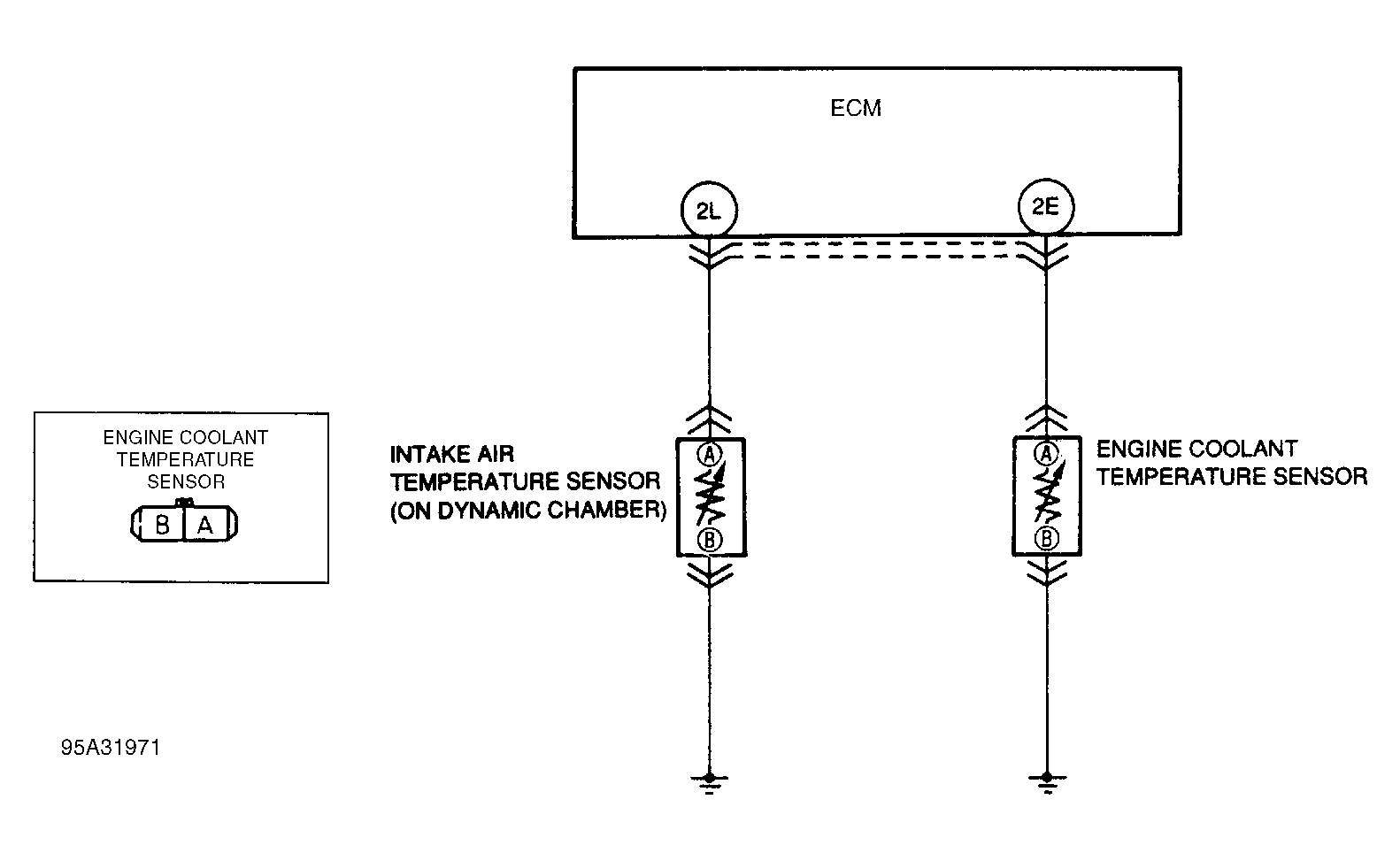

Fig 2: Trouble Code No. 9 Engine Coolant Temperature Sensor Circuit Diagram
G95A31971
