Code 10: Intake Air Temperature Sensor - In Volume Air Flow Sensor

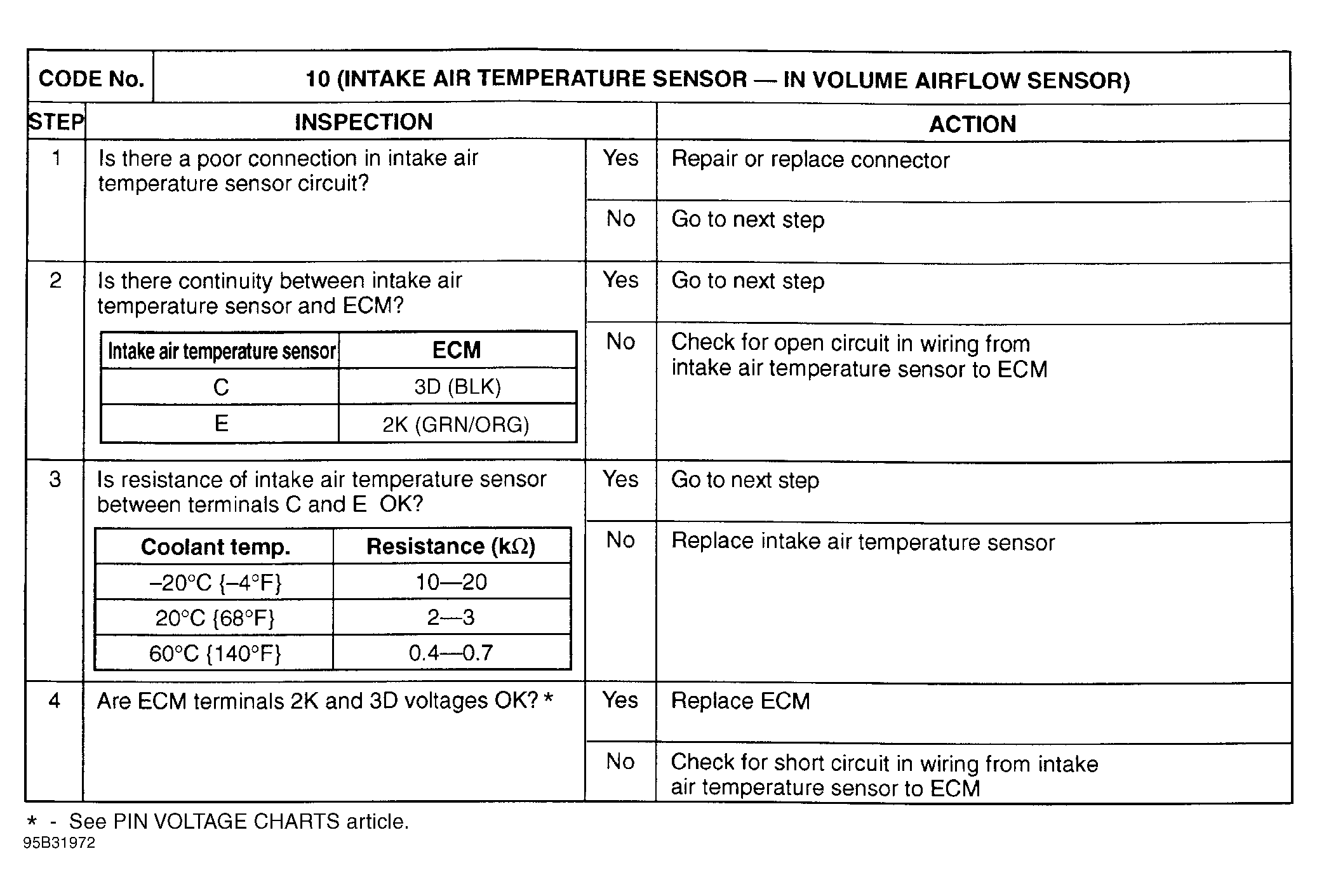

Fig 1: Trouble Code No. 10 Intake Air Temperature Sensor - In Volume Air Flow Sensor
G95B31972

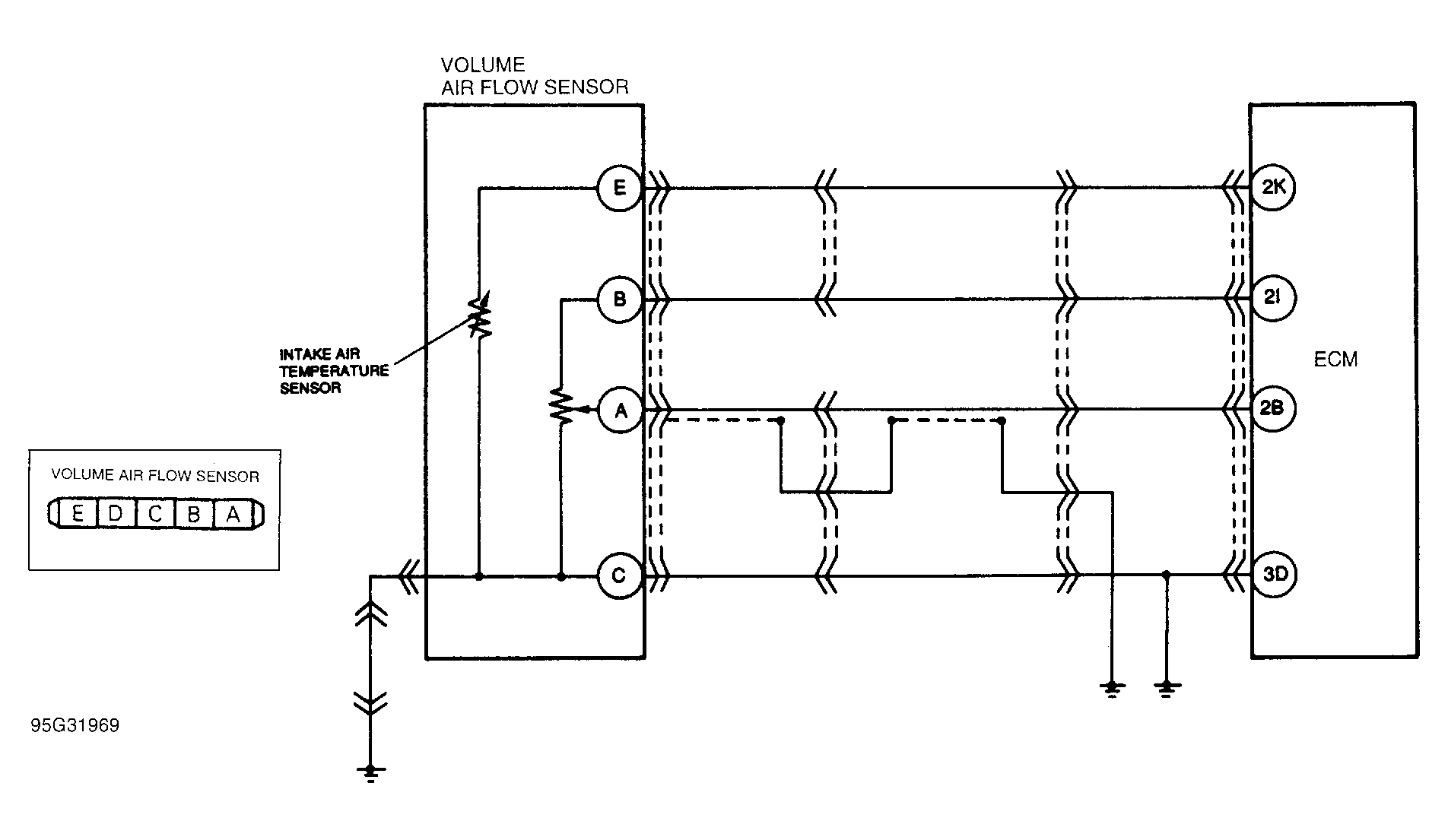

Fig 2: Trouble Code No. 10 Volume Air Flow Sensor Circuit Diagram
G95G31969
