Mazda
>>
1995
>>
929 V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Terminals 2M-2T
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Terminals 2M-2T

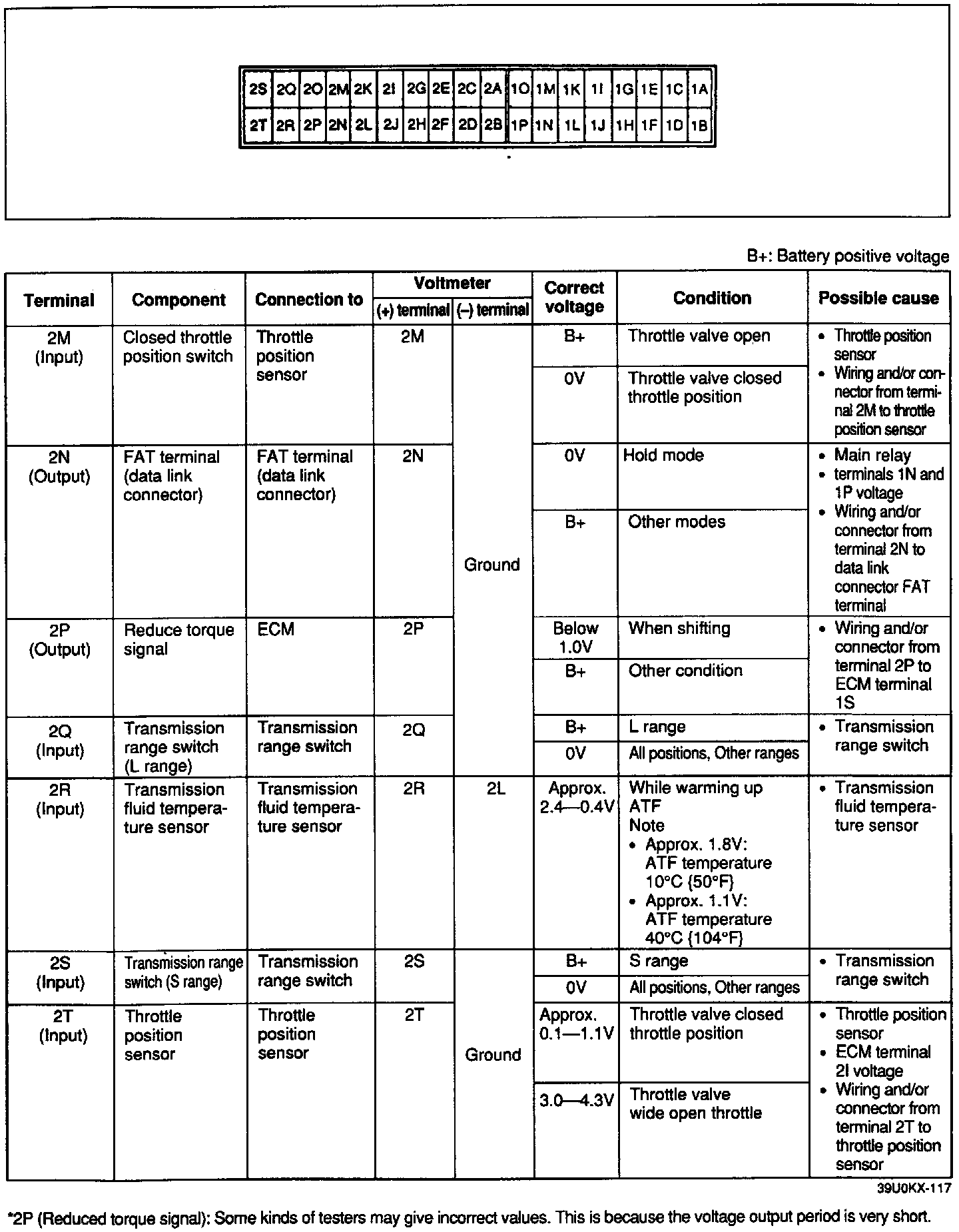

Terminal Voltage Chart:
