Terminal Voltage (Results)

TERMINAL TROUBLESHOOTING CHARTS

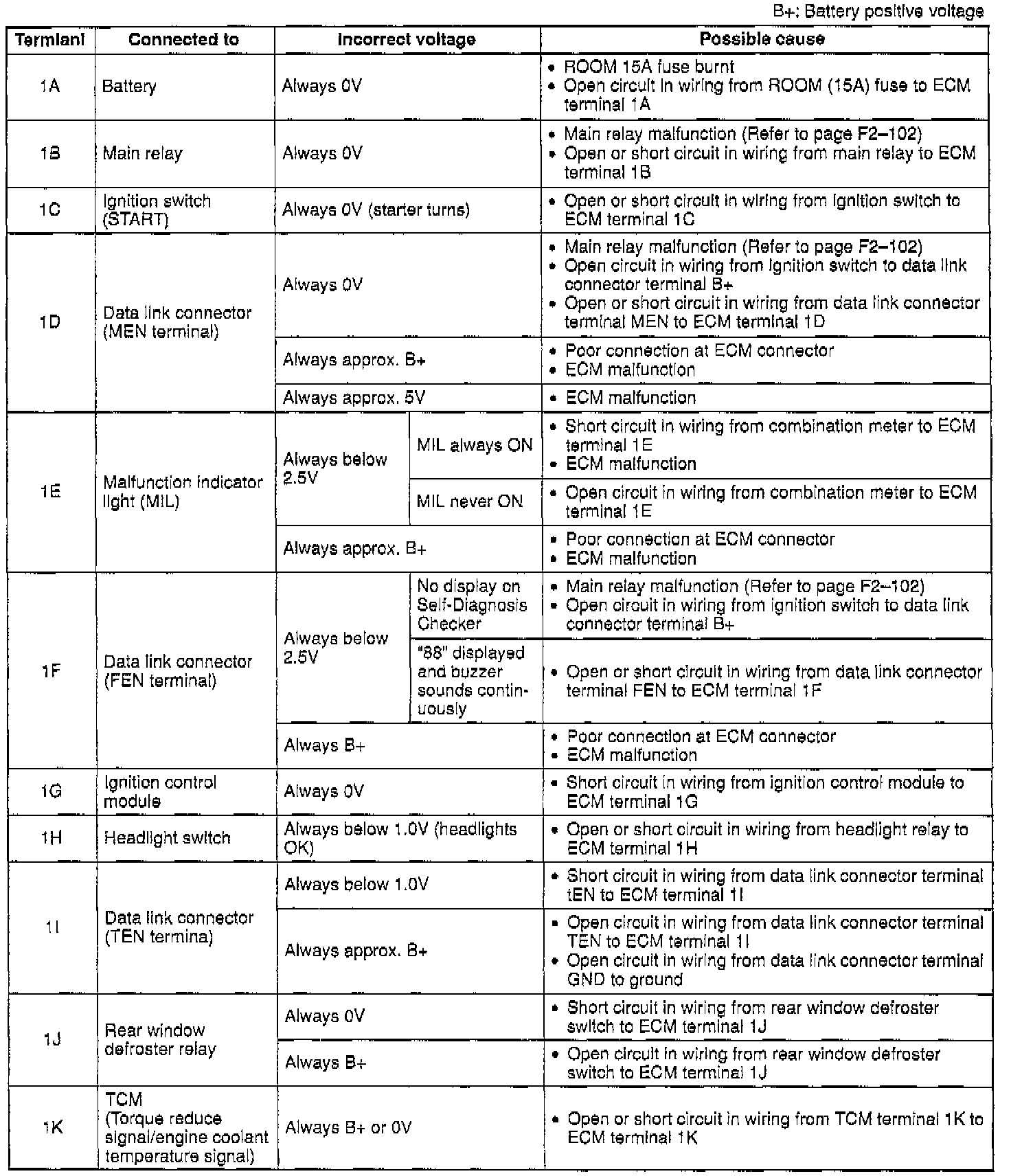

1A THROUGH 1K

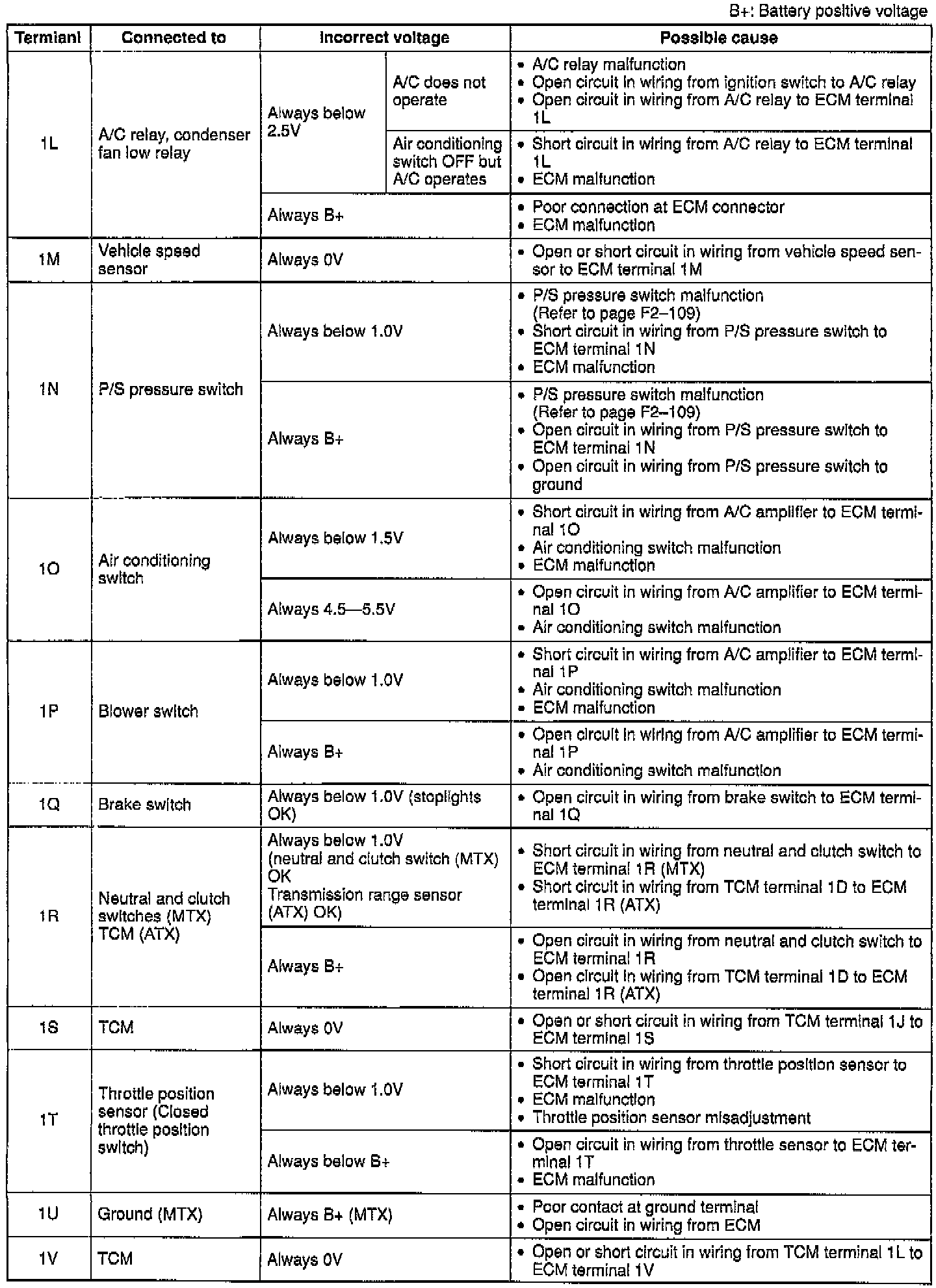

1L THROUGH 1V

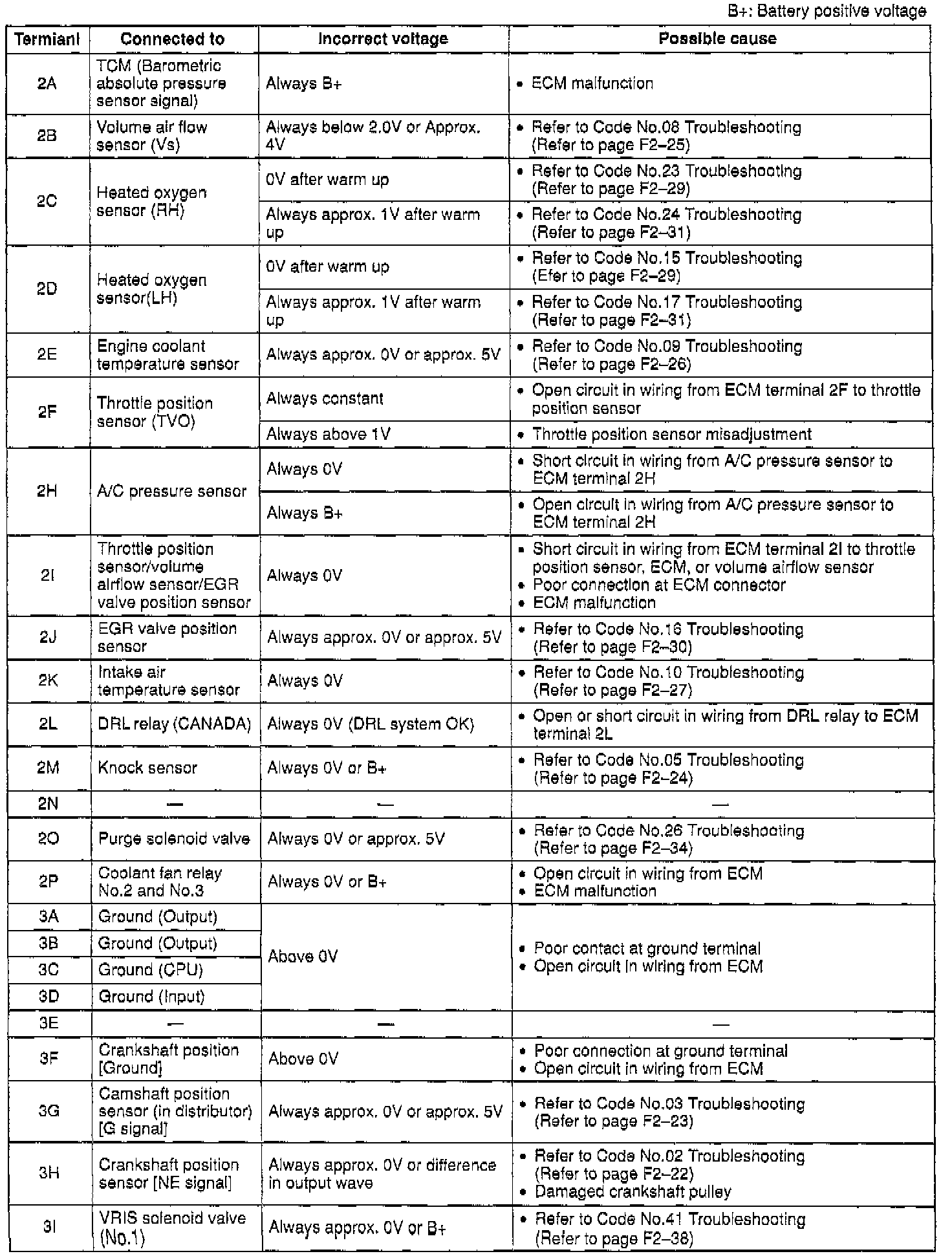

2A THROUGH 3I

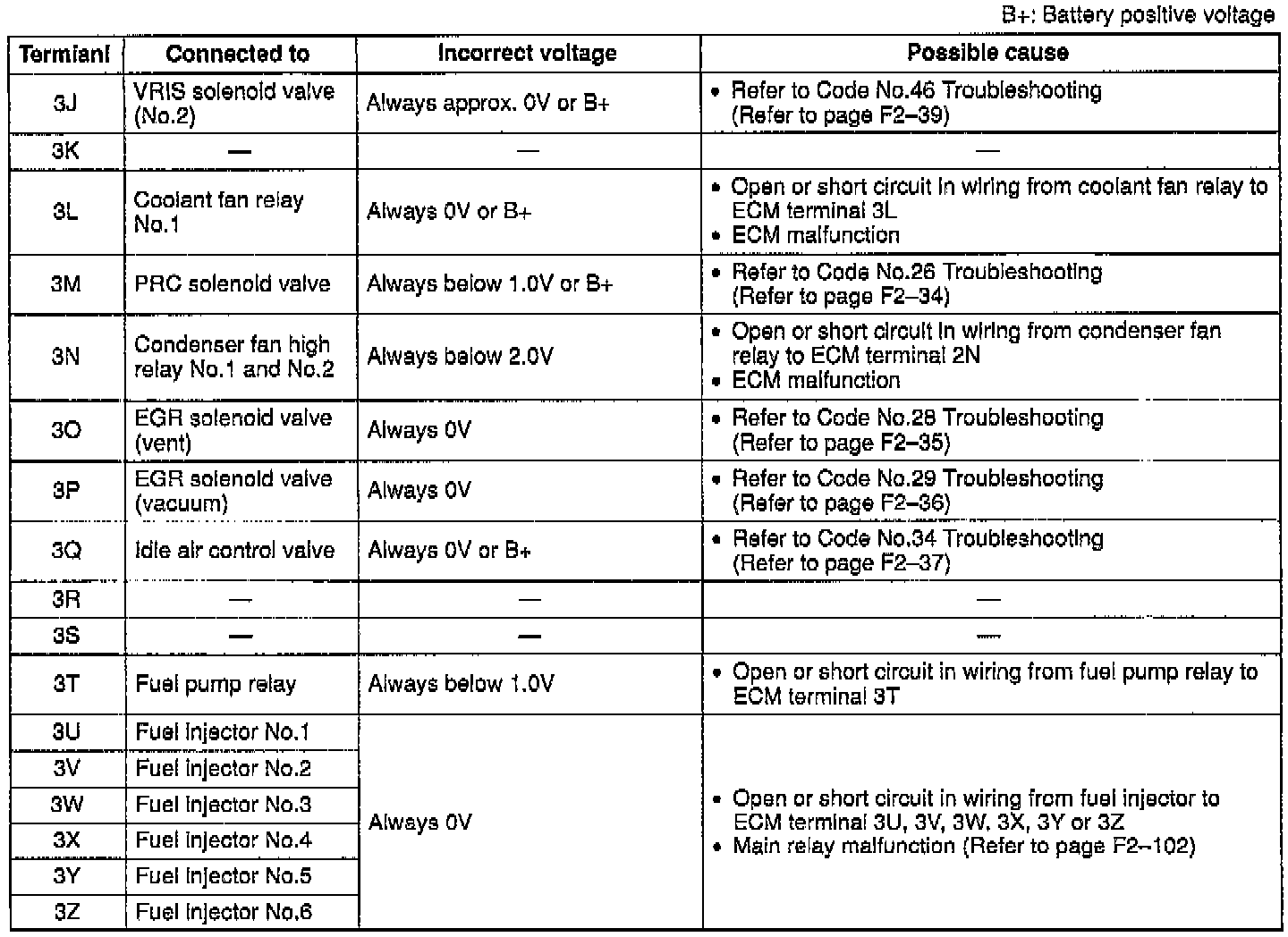

3J THROUGH 3Z
