Terminal Voltage (Referance Data)

TERMINAL VOLTAGE CHARTS

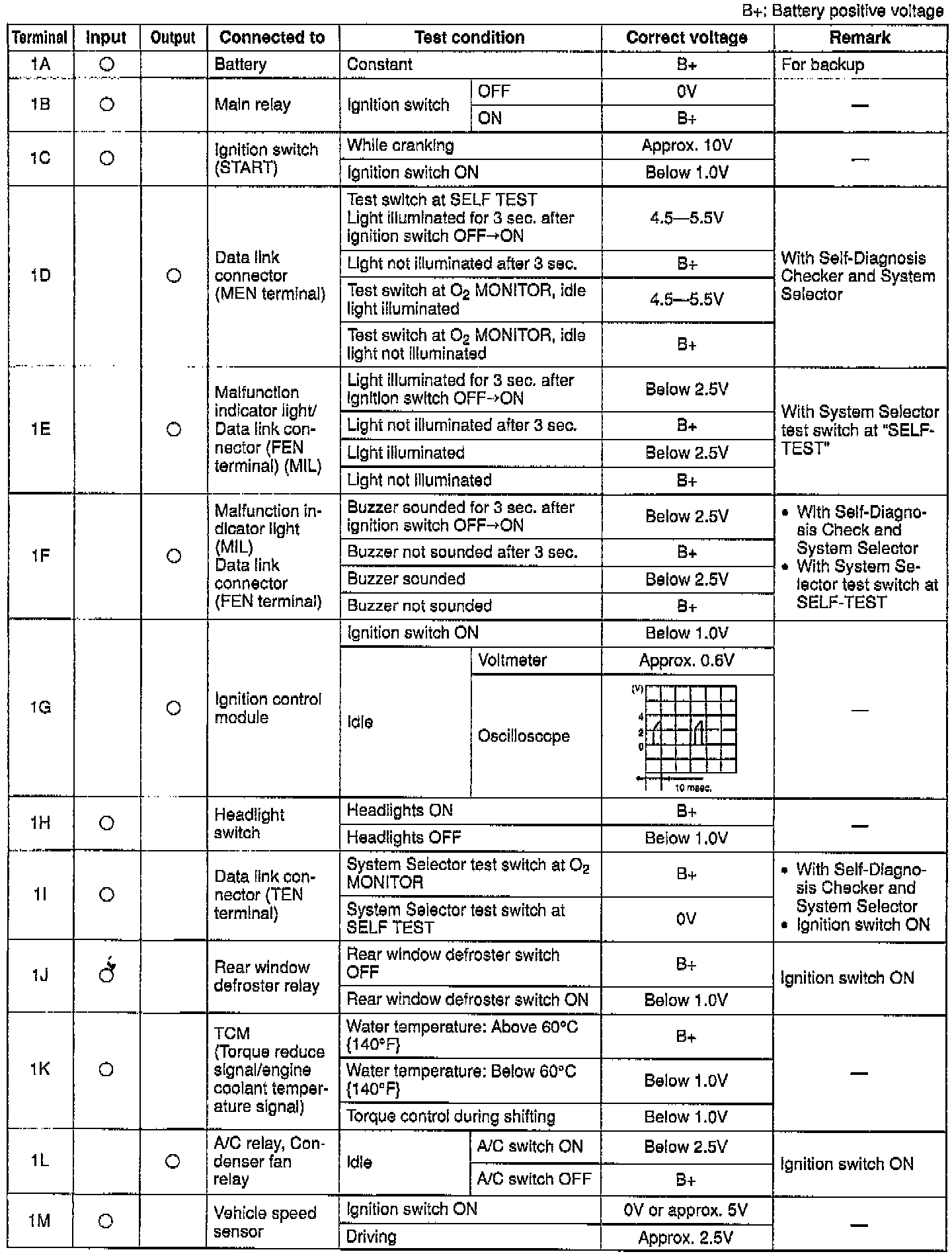

1A THROUGH 1M

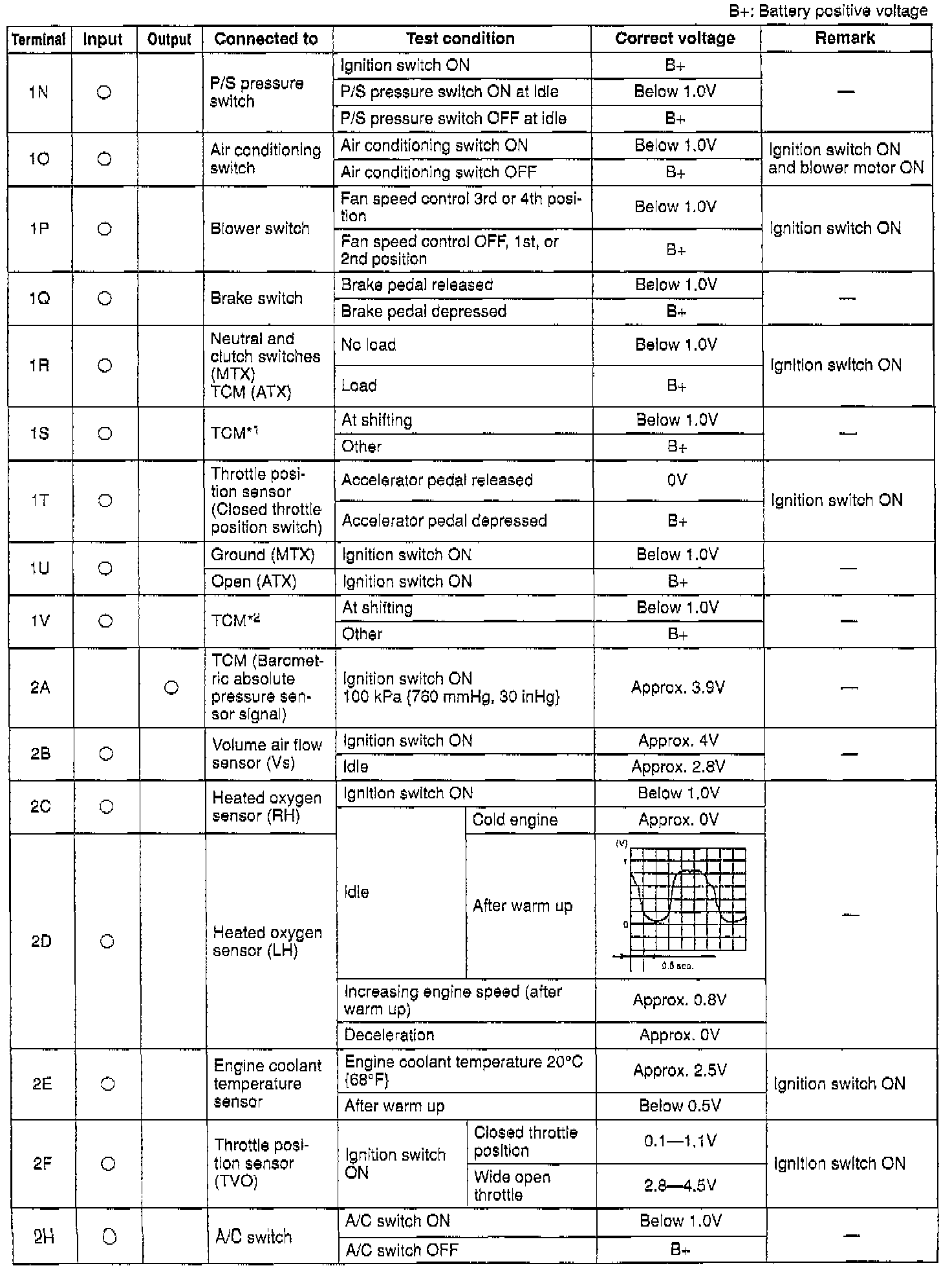

1N THROUGH 2H

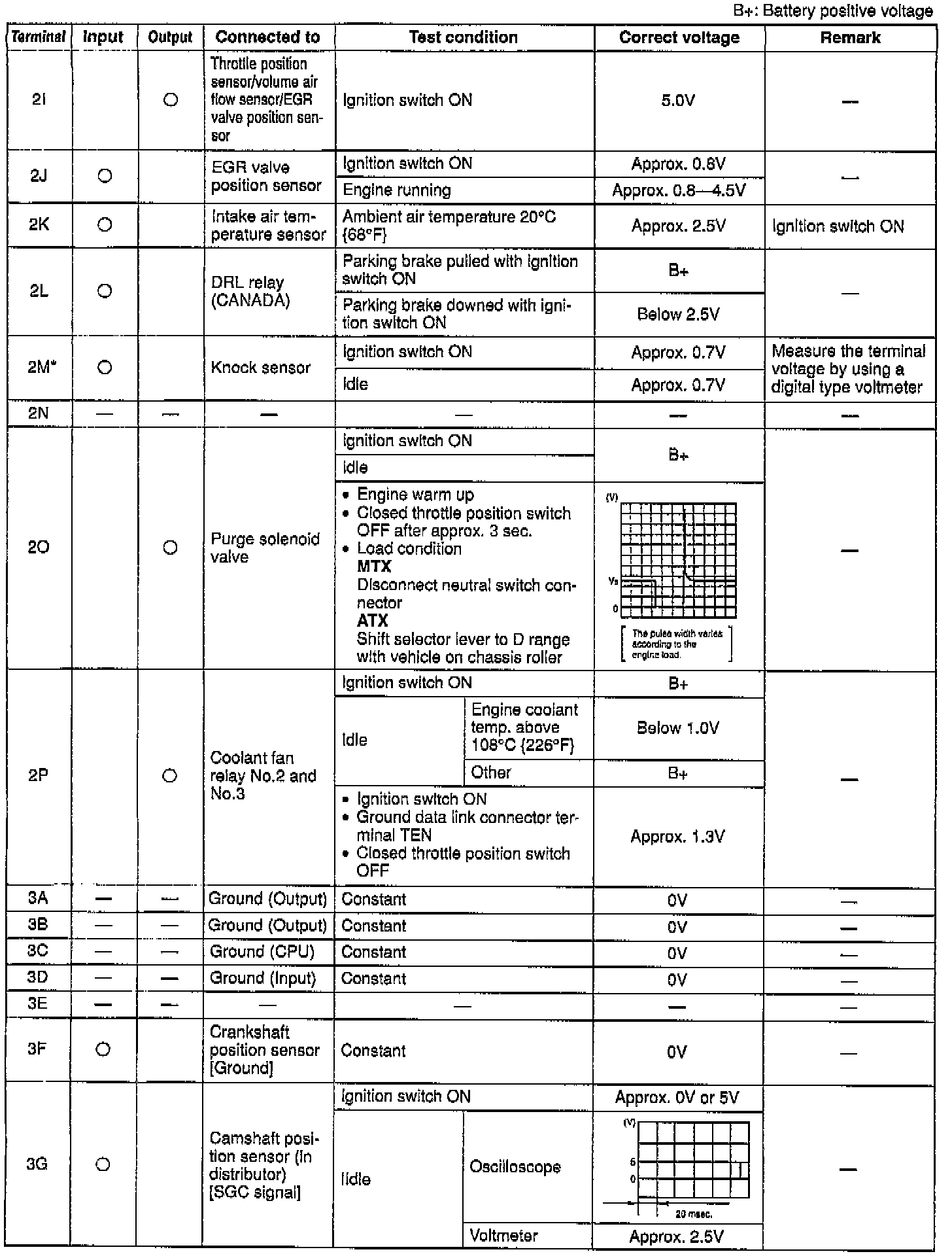

2I THROUGH 3G

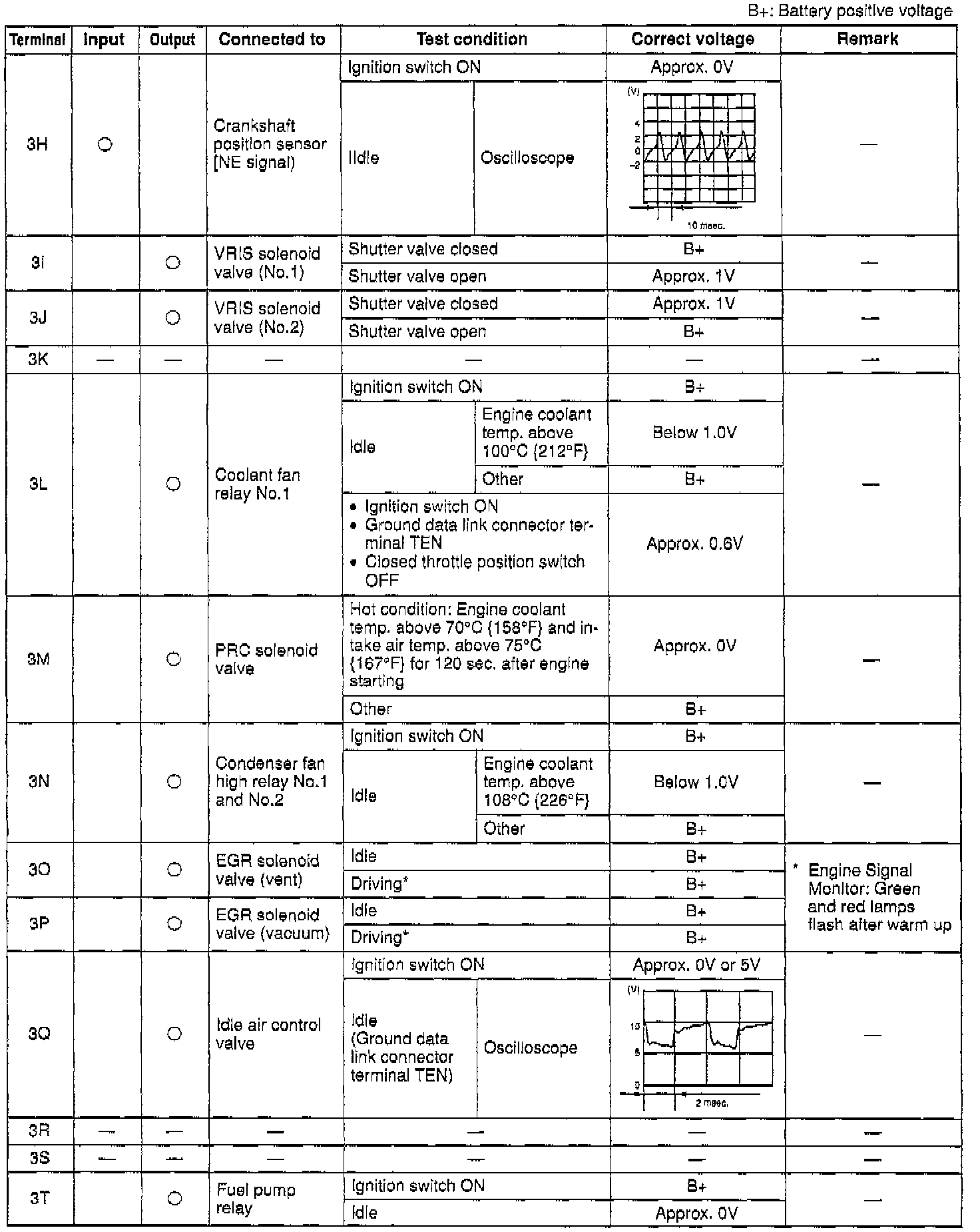

3H THROUGH 3T




3U THROUGH 3Z
