Terminals 1B-1N
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Terminals 1B-1N

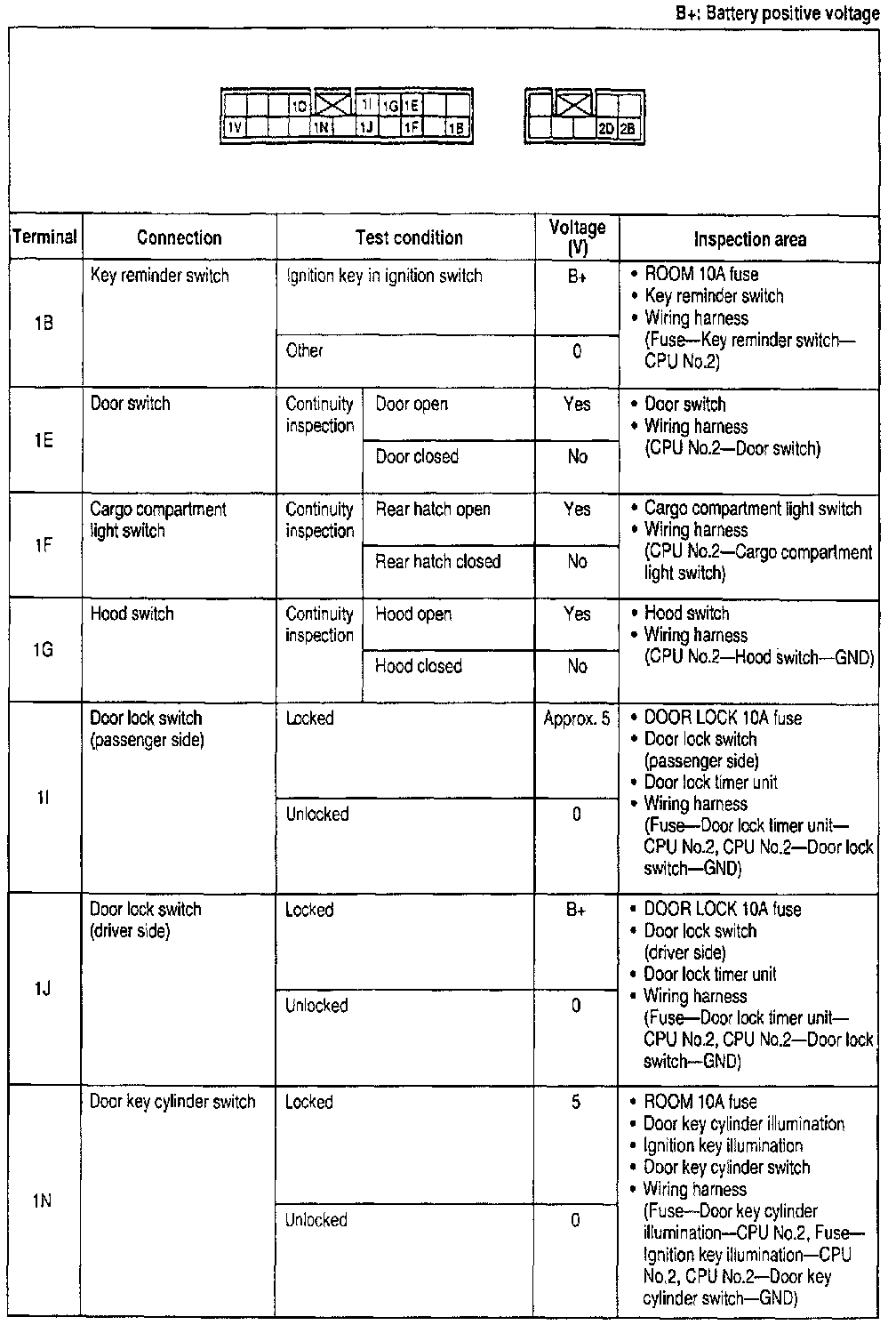

Terminal Voltage Charts:
