Door Catch Switch (In Front Door Lock Assembly)

  1. Disconnect door catch switch connector. Check for continuity between terminals using an ohmmeter.
  2. In the "Lock" position there should be no continuity. In the release position there should be continuity between terminals "a" and "c" and also there should be continuity between terminals "a" and "b". See Fig 1 .

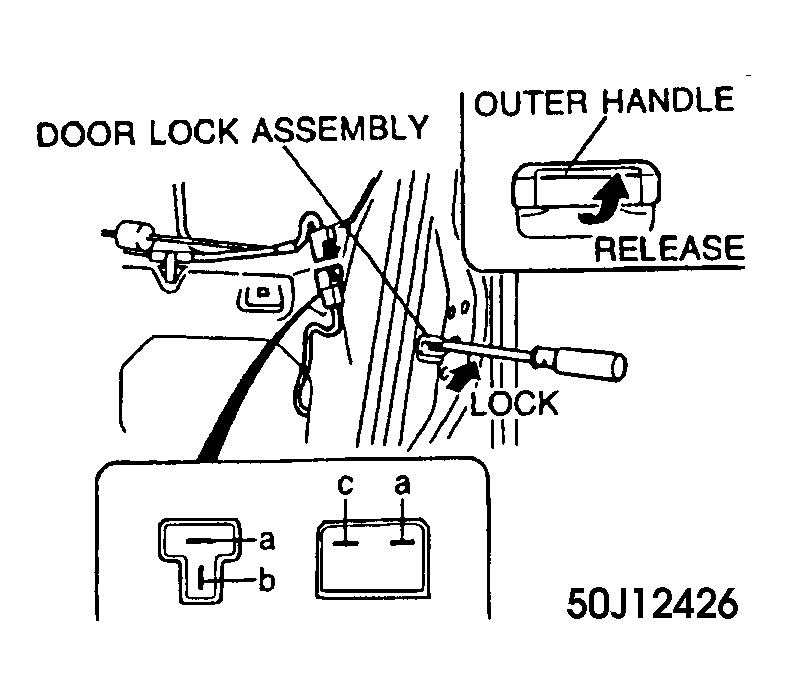

Fig 1: Door Catch Switch
G50J12426
