Computers and Control Systems: Locations

IGNITION SYSTEM

H�Connector Locations:






ENGINE CONTROL SYSTEM

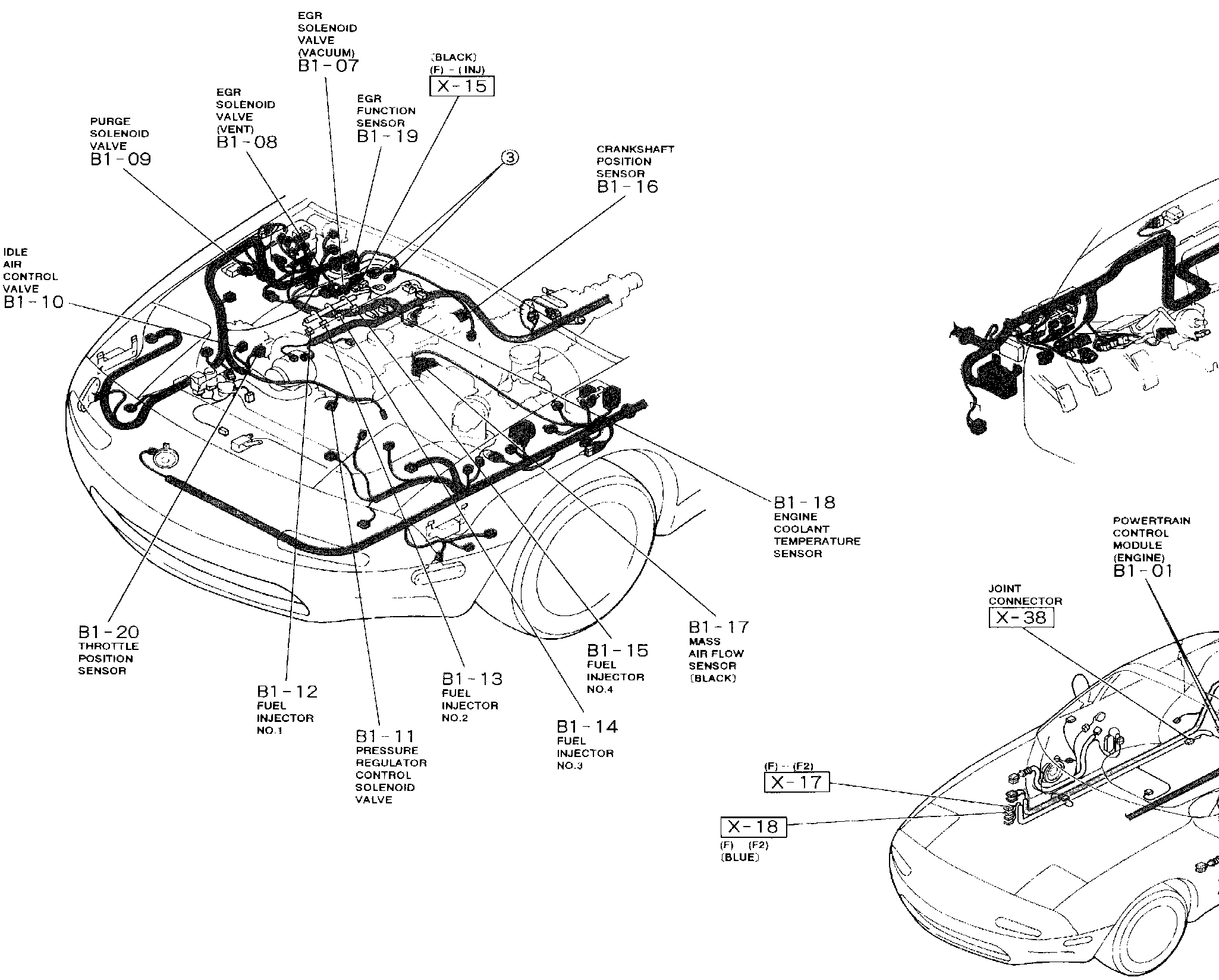

PART 1

\8Connector Locations:

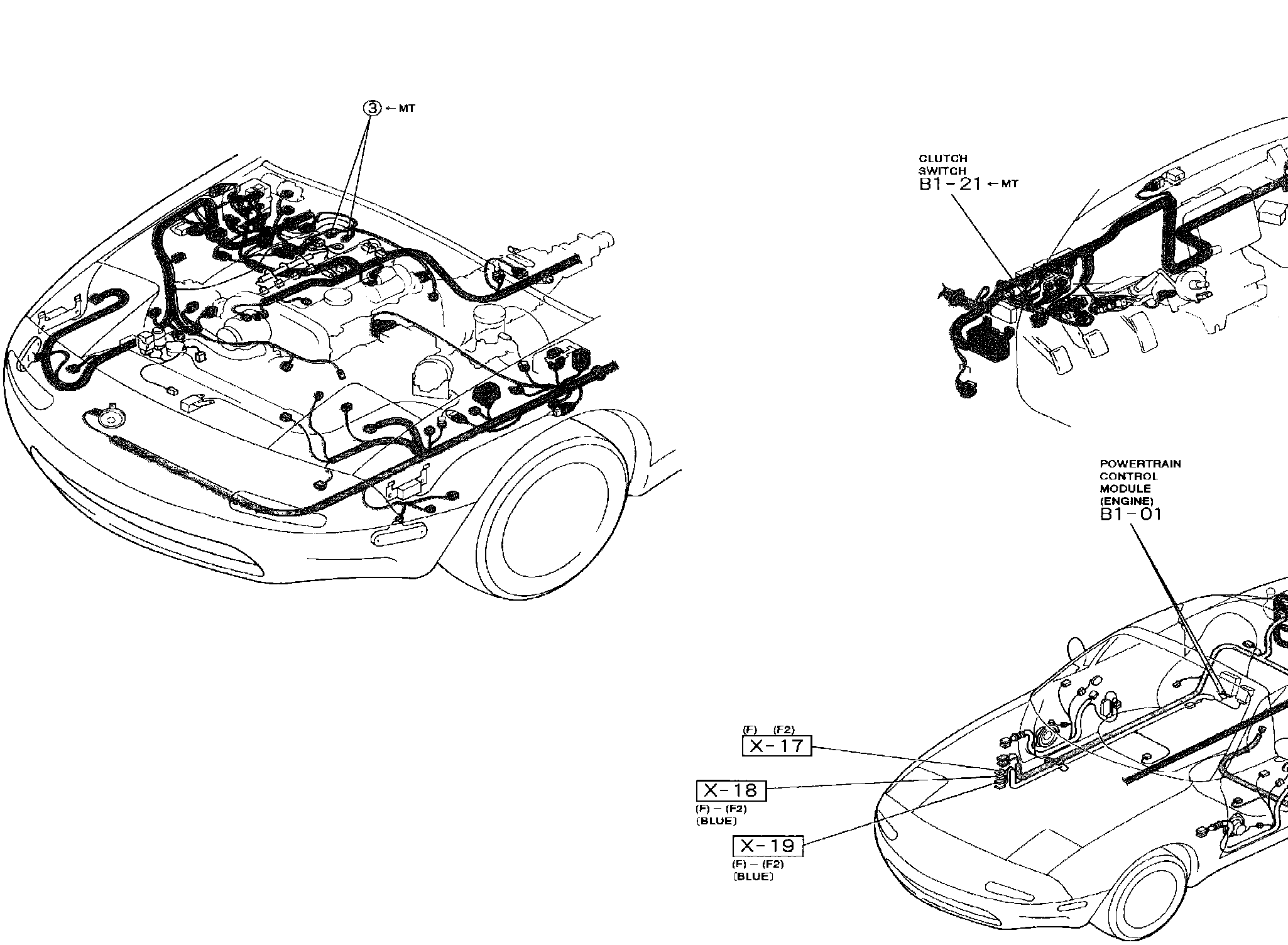

PART 2

�jConnector Locations:

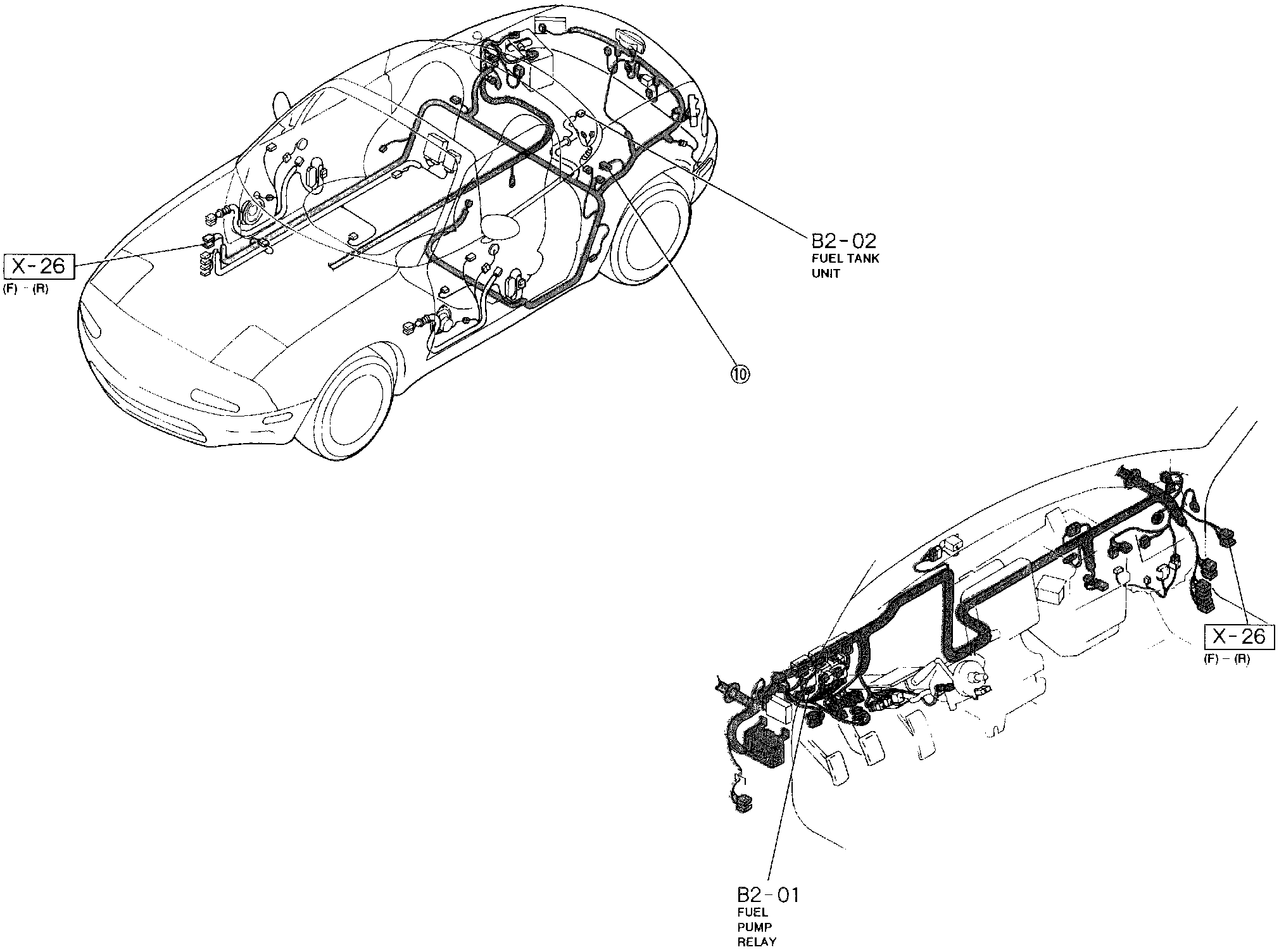

FUEL CONTROL SYSTEM

Connector Locations:
