Torque Specifications

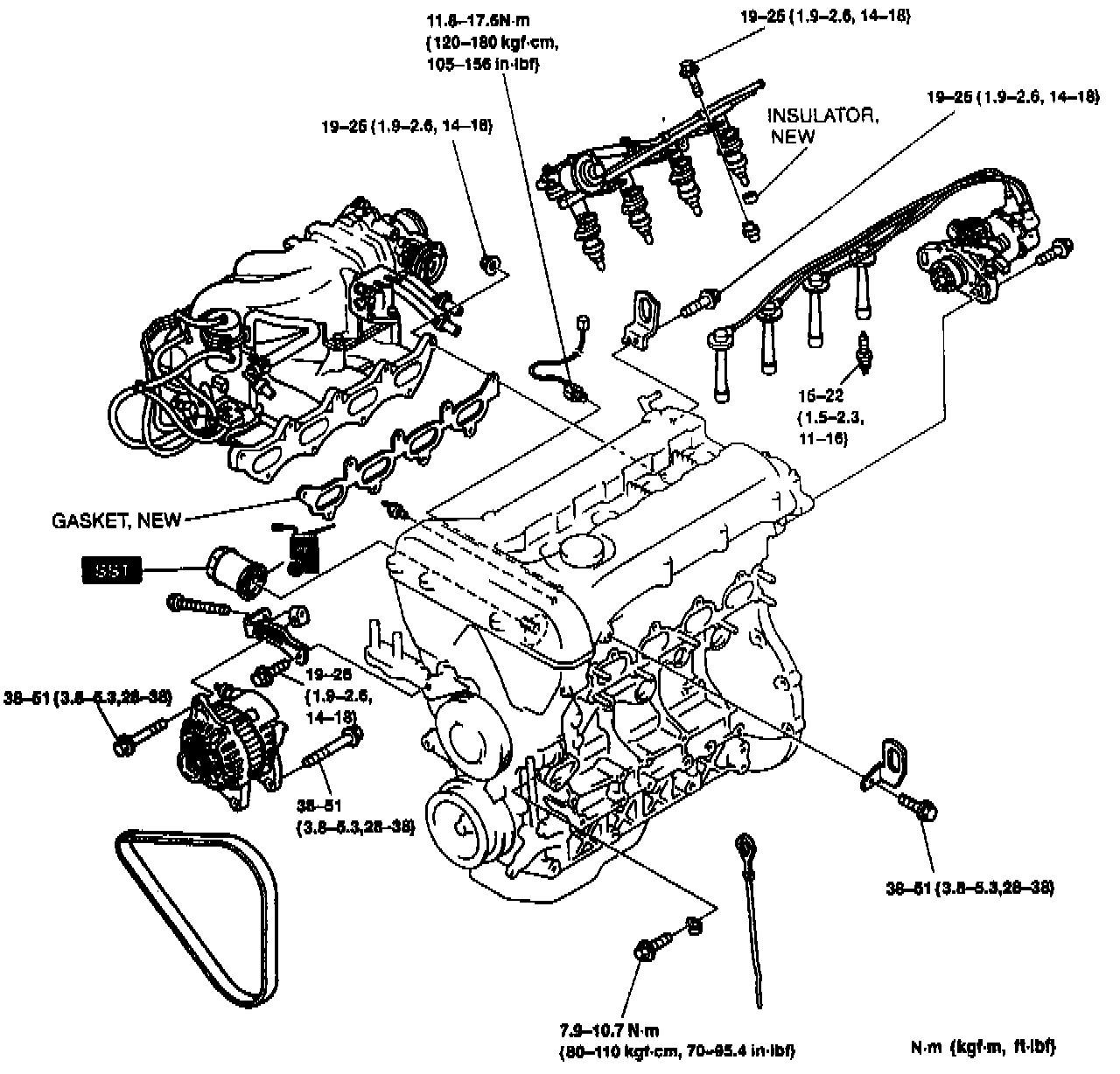

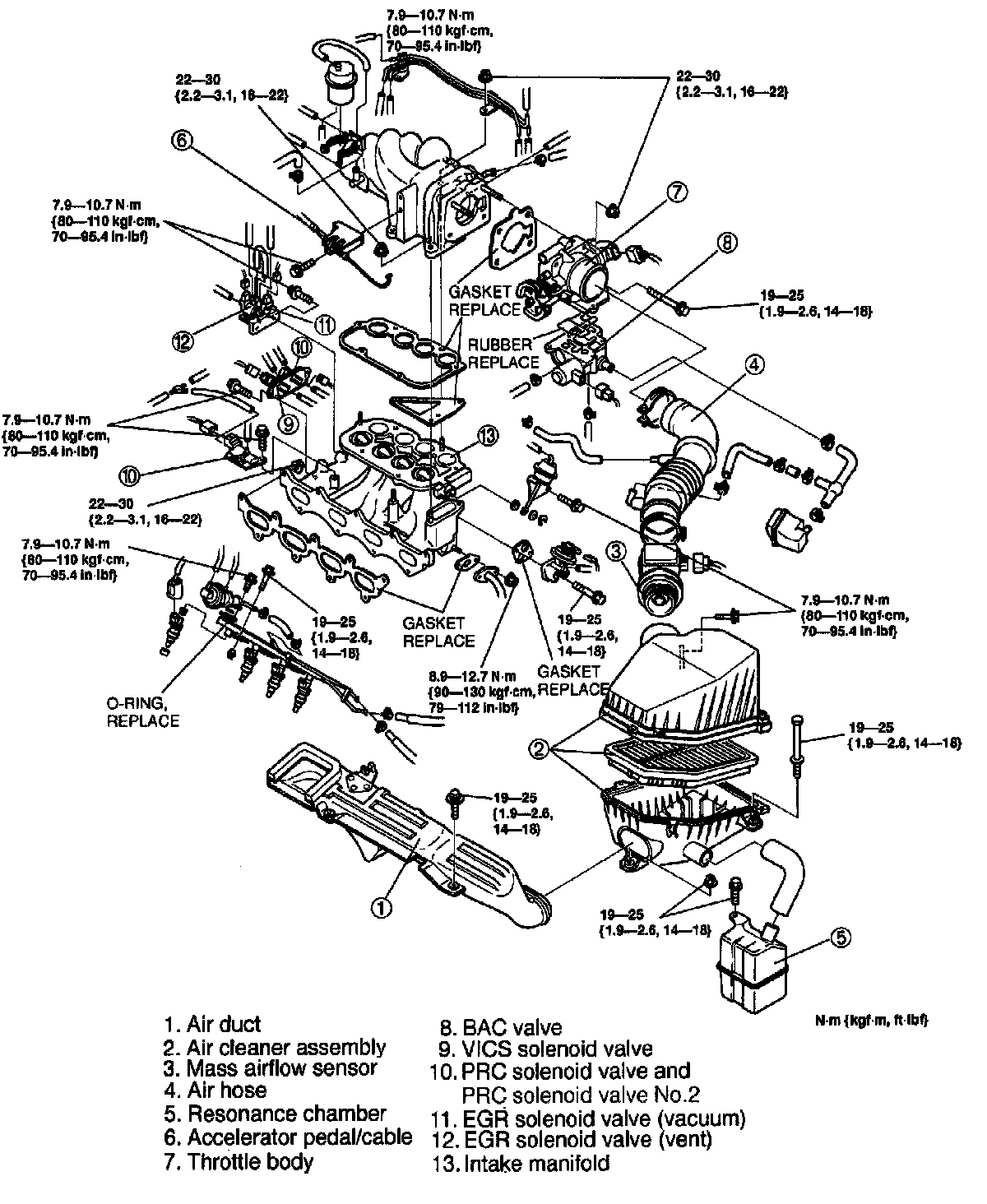

Intake:

Intake:

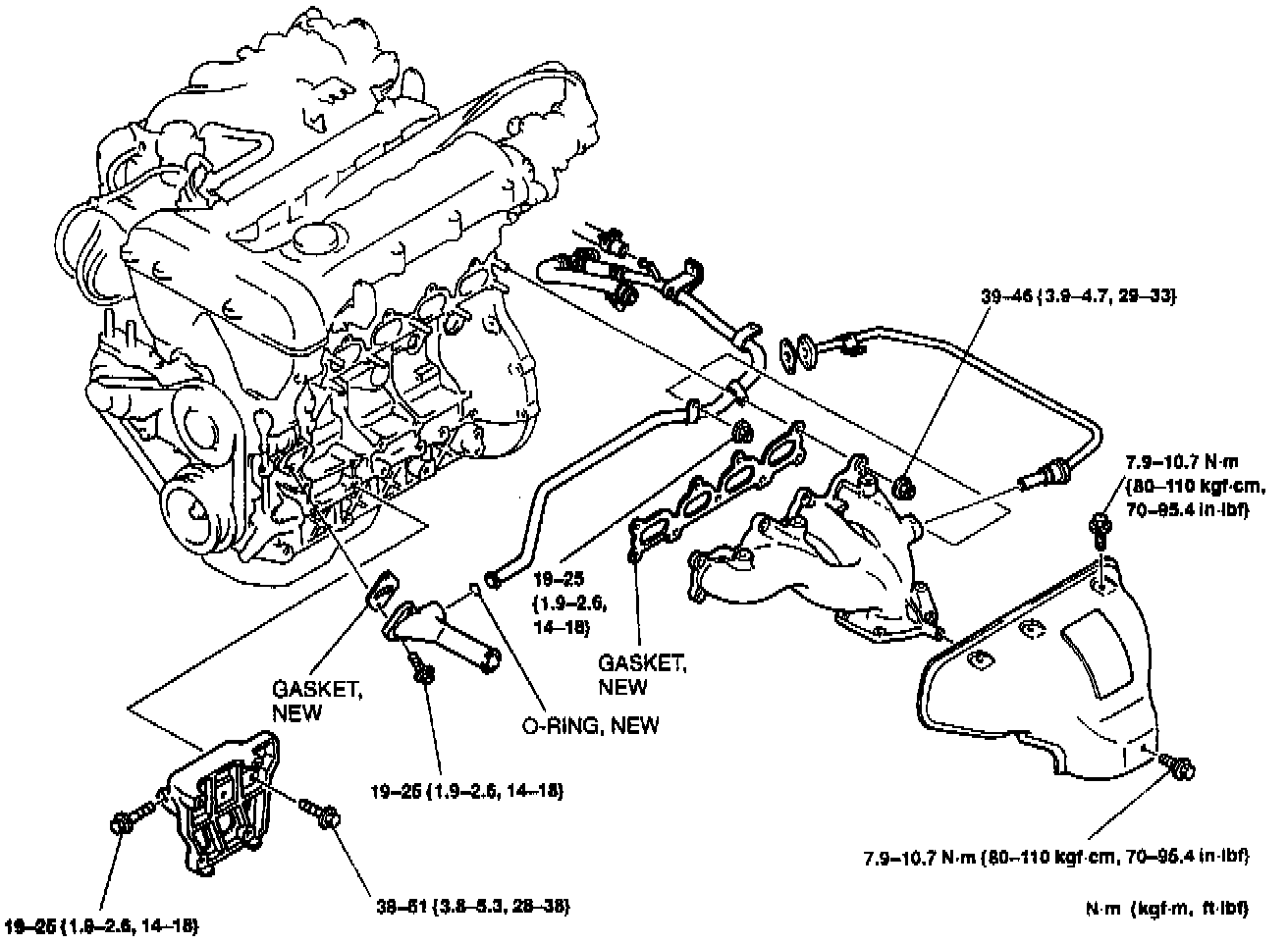

Exhaust Manifold:

Upper Engine:

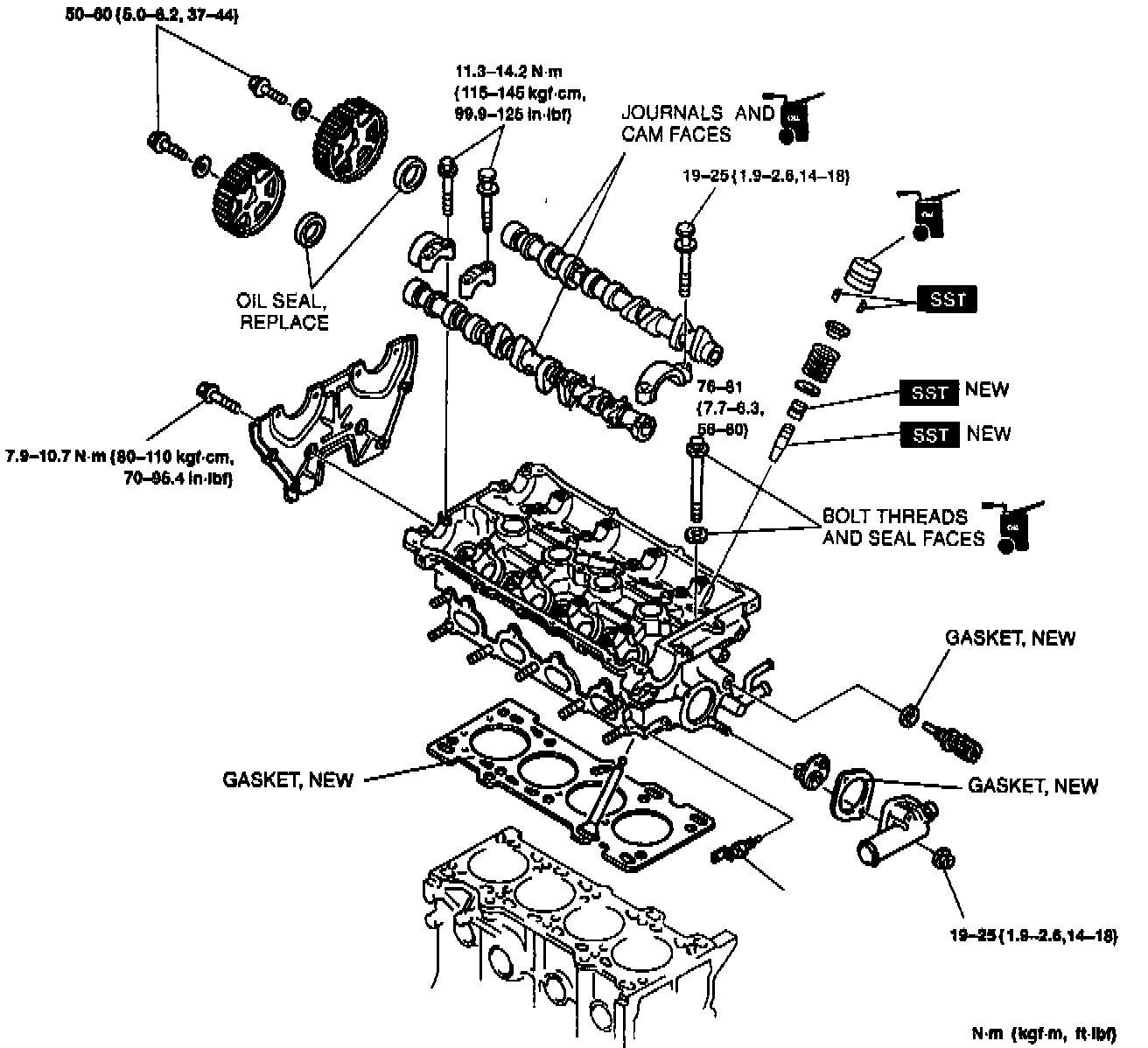

Head Torque/Sequence:

Cam Cap Torque/Sequence:

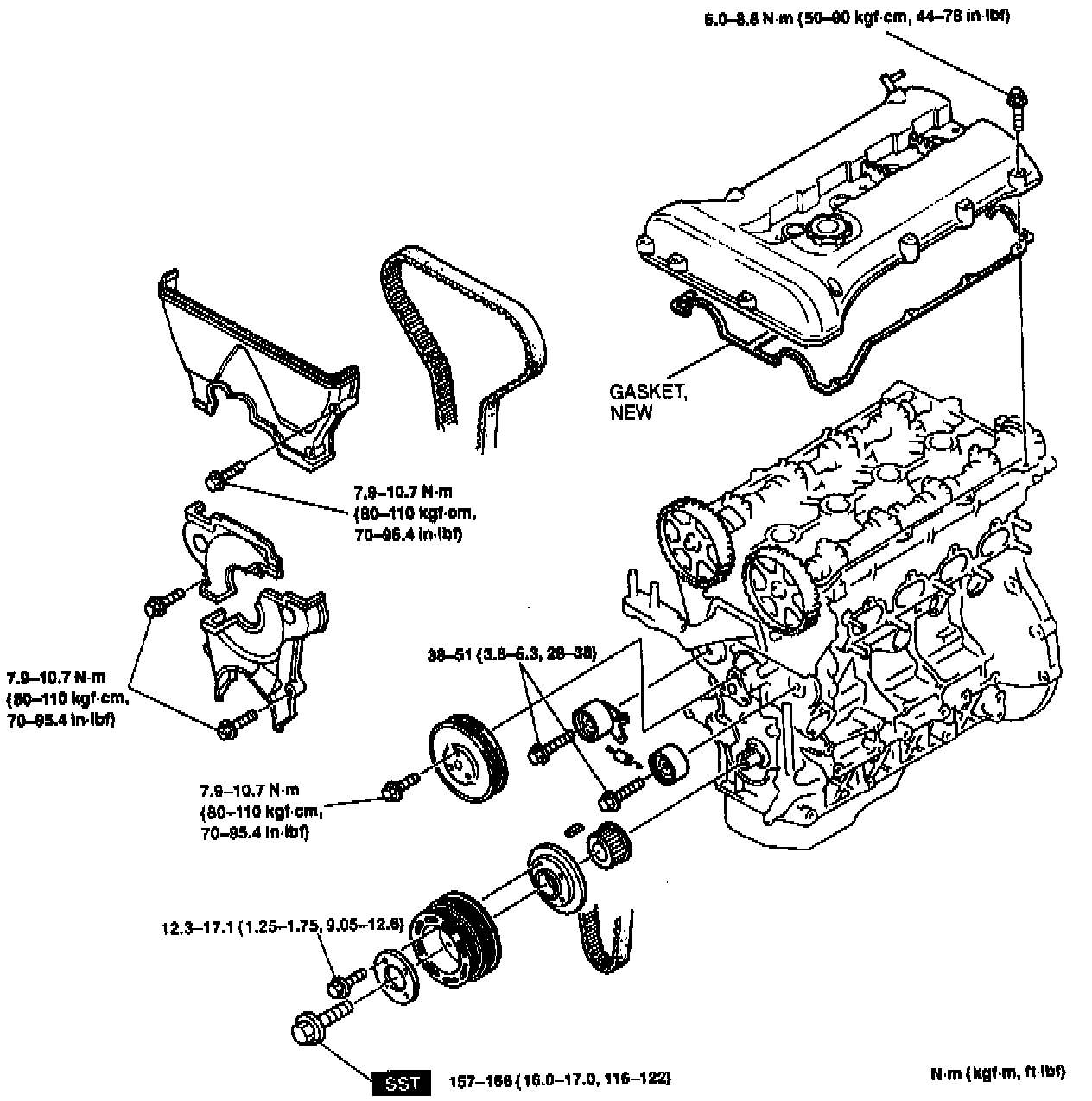

Timing Components:

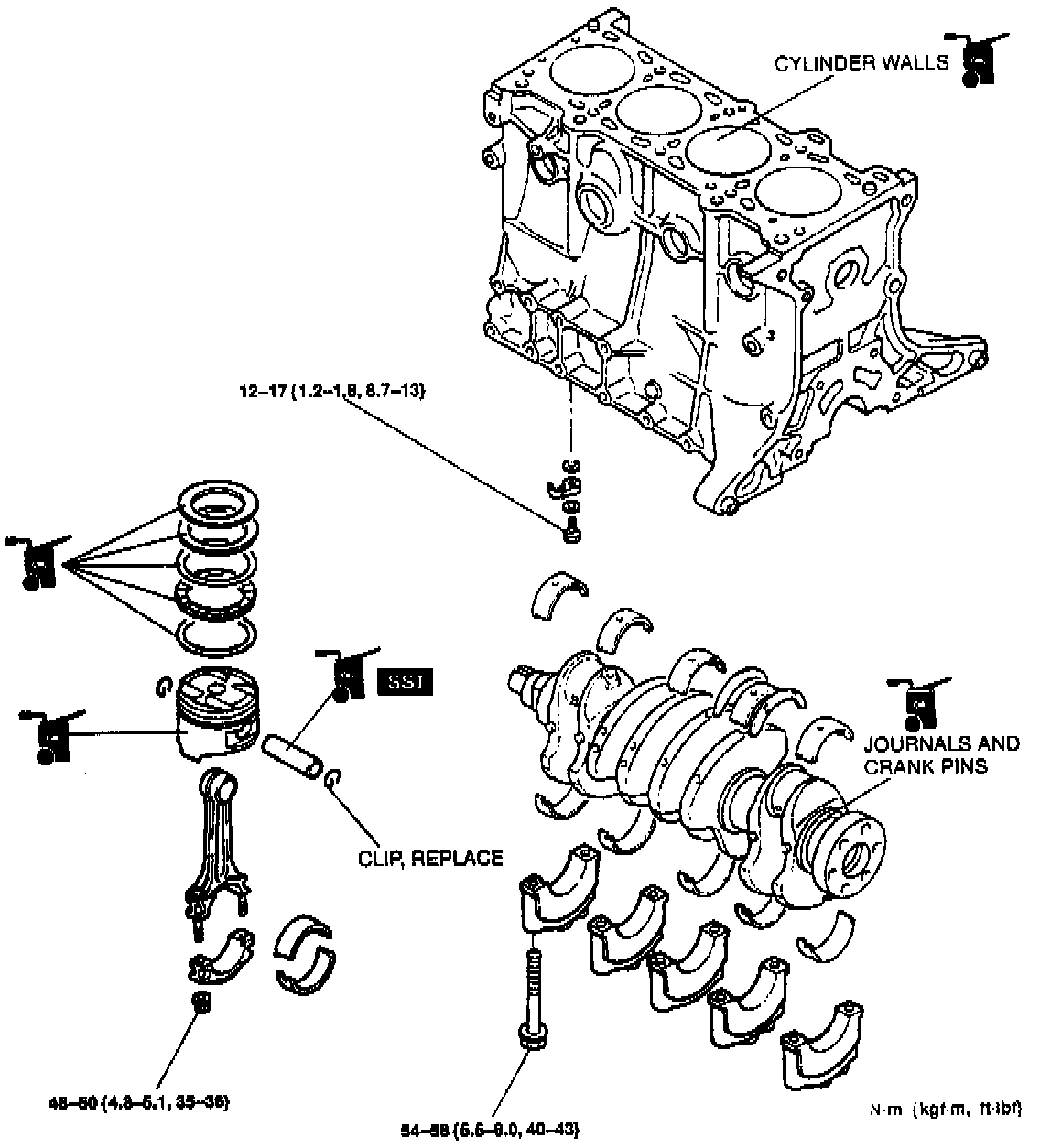

Lower Engine:

Main Bolt Torque/Sequence:

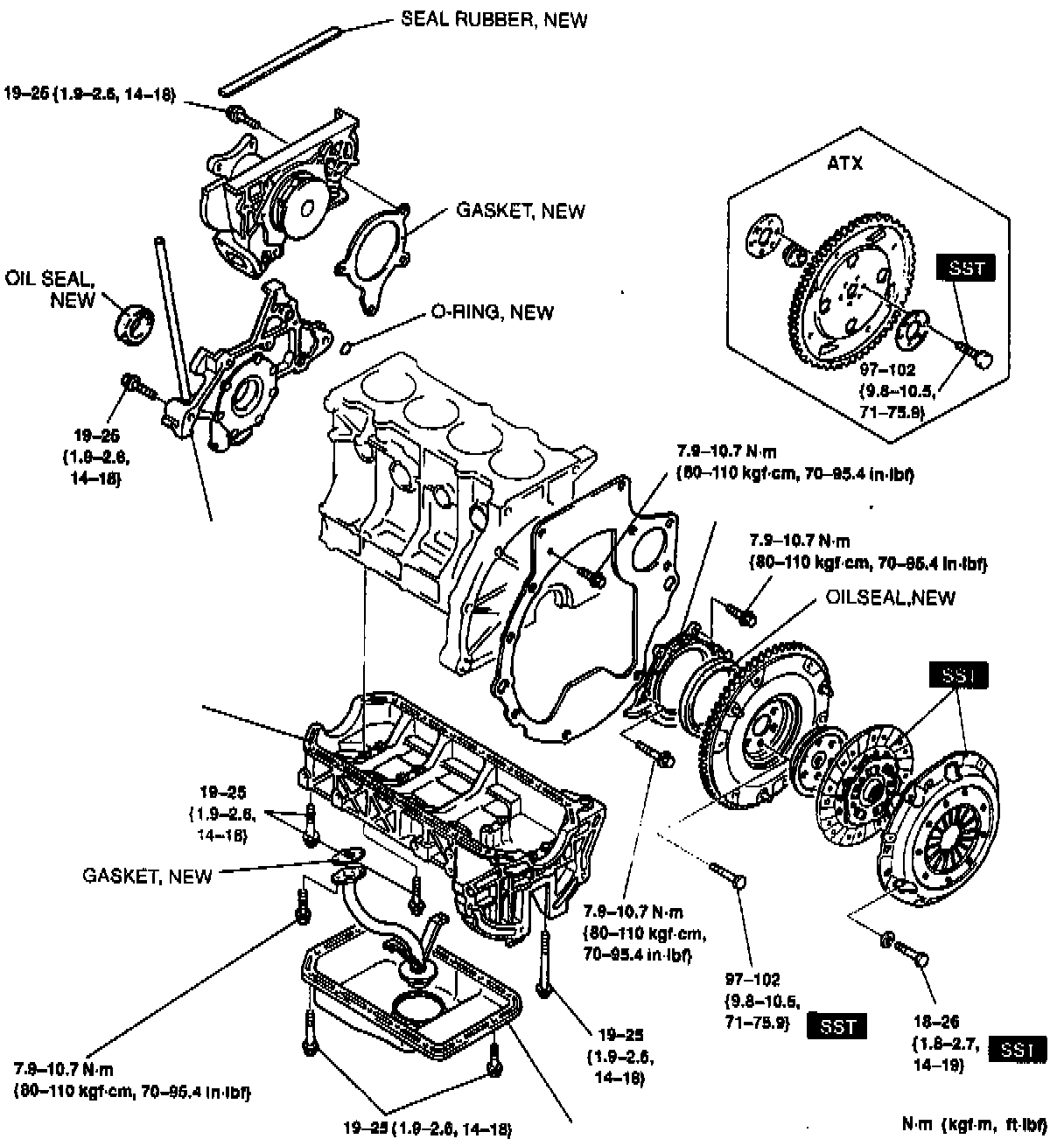

Upper Oil Pan:
