Home >> Mazda >> 1994 >> MX-3 L4-1598cc 1.6L DOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Engine Control Module >> Terminal 1V Through 2M >> Part 1 of 2

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

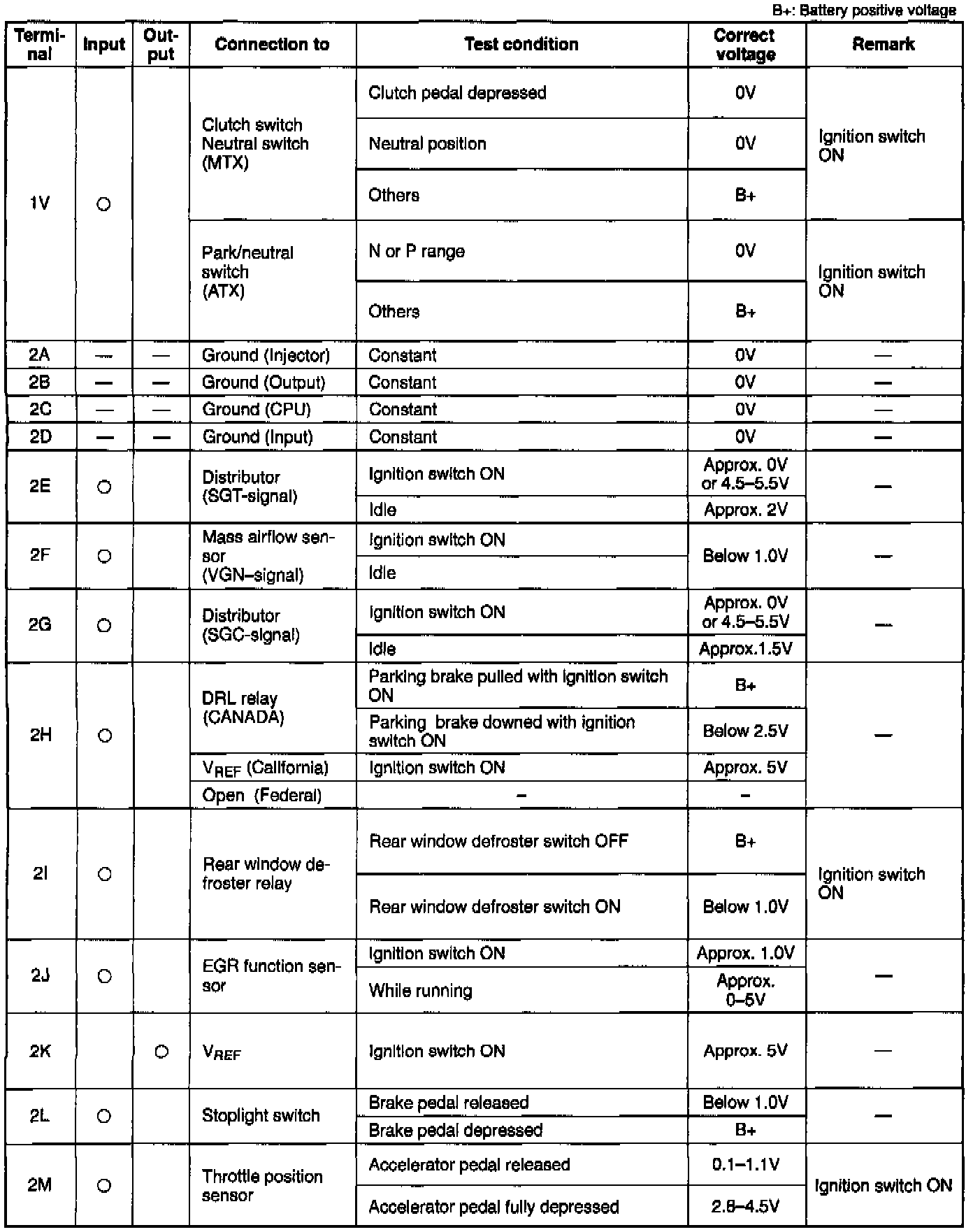

Part 1 of 2

Part 1 Of 2:
