Body Control Module

Inspection:




Inspection

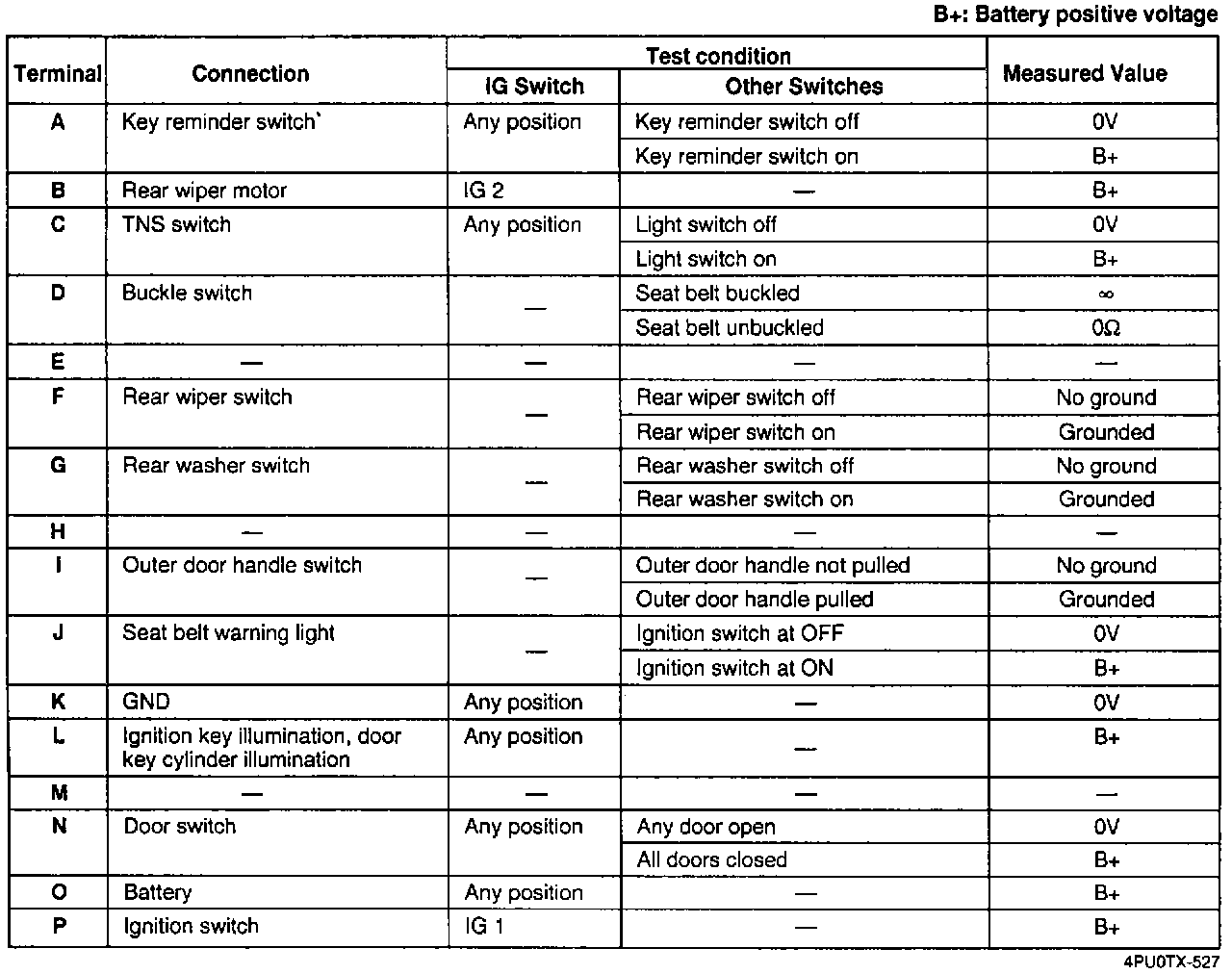

To check the input signals to the CPU (16 -pin), remove the CPU and perform the test on the joint box side.
