Central Processing Unit (CPU) (1/2)

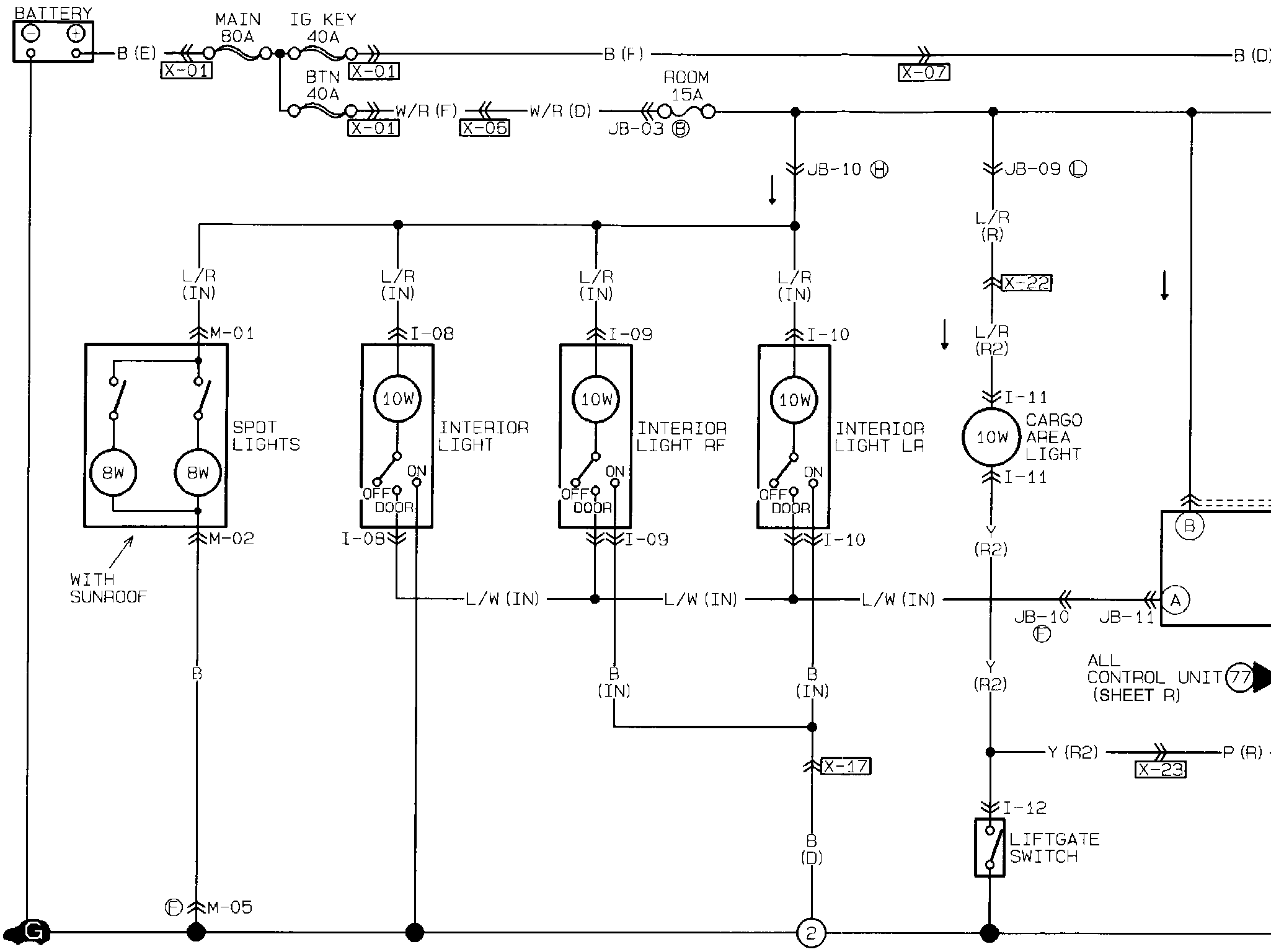

���Interior & Spot Lights, Cargo Area Light, Central Processing Unit (CPU) (1/2):
