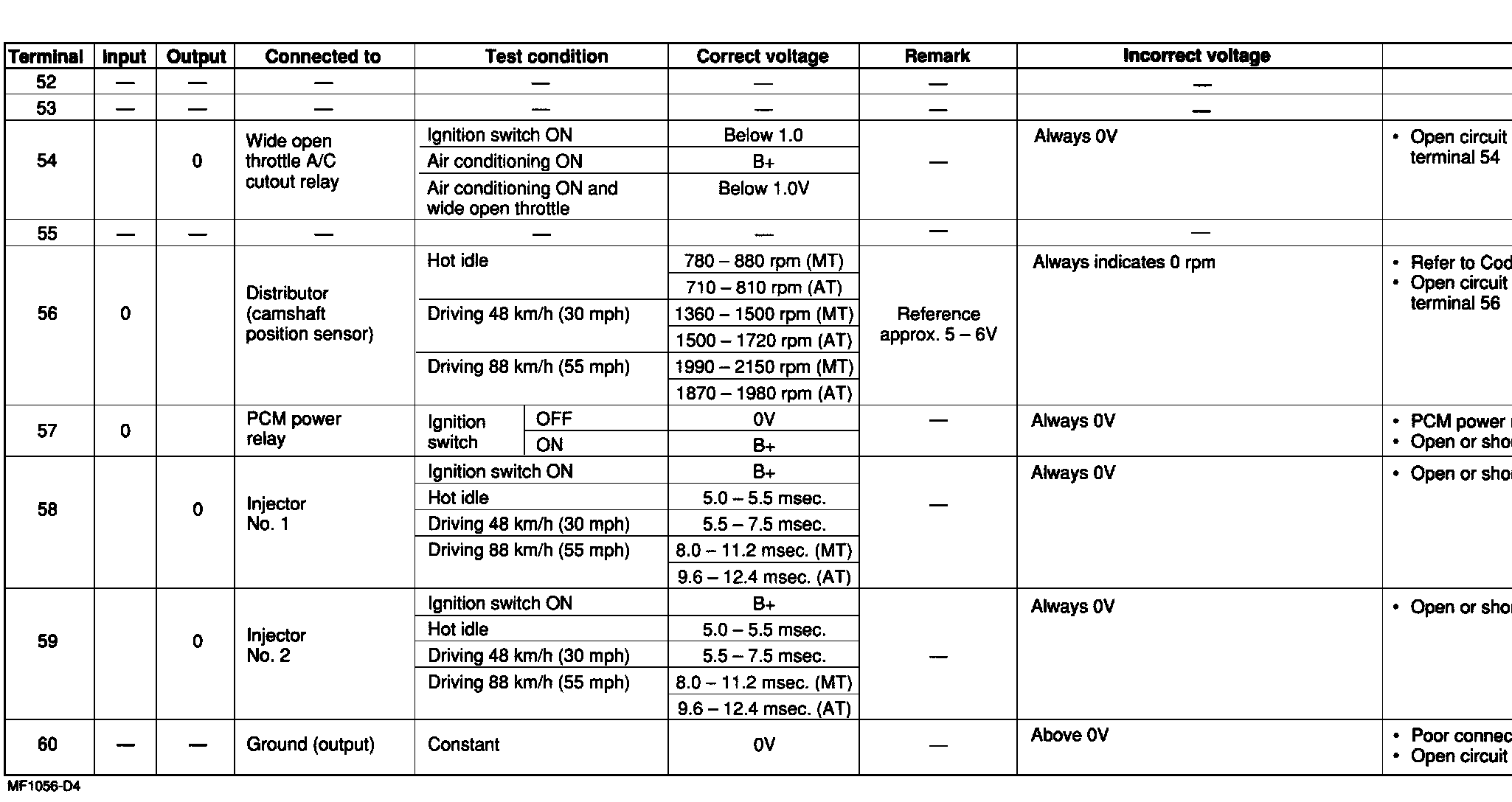

PCM Pins 52 Through 60

�� PCM Pins 52 Through 60 NOTE: All values shown may vary 20% depending on operating conditions and other factors. RPM values may vary with axle ratios and tire size.:
