Ignition System, Engine Control System

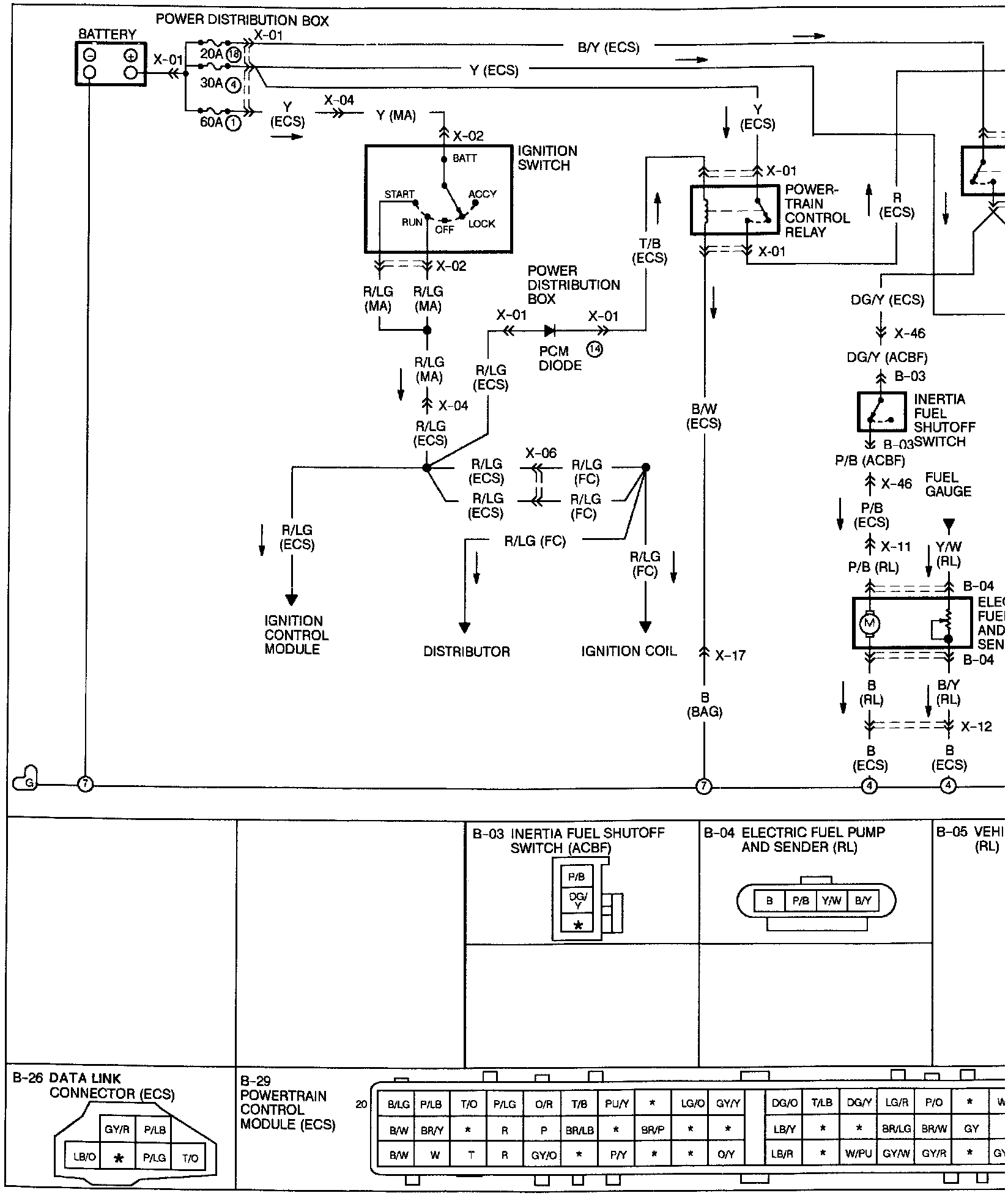

�?>Ignition System Diagram (1 of 2):

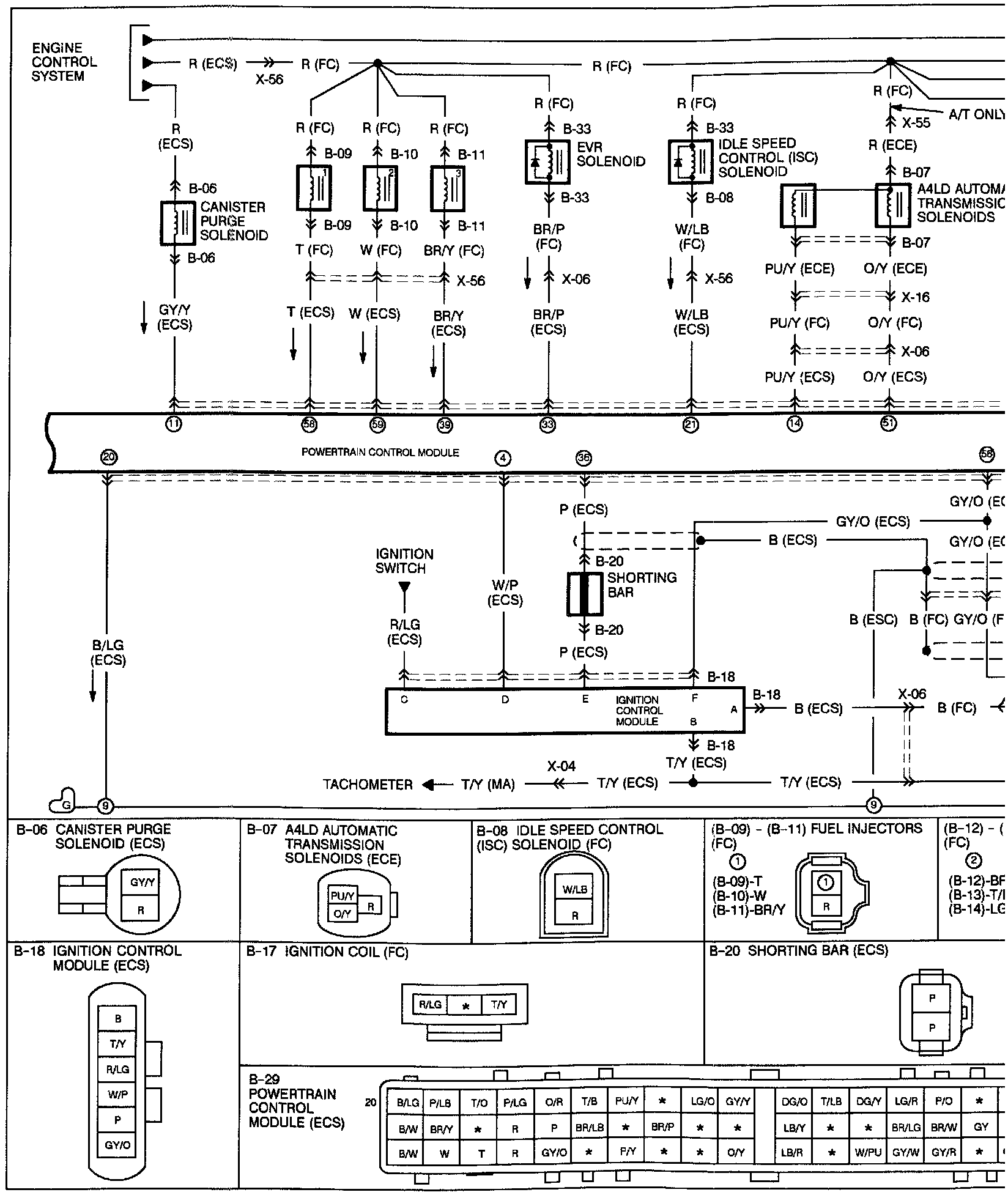

d`@>Ignition System Diagram (2 of 2):
