Power Steering Pump

NOTE: See Fig 1 for exploded views of power steering pumps.

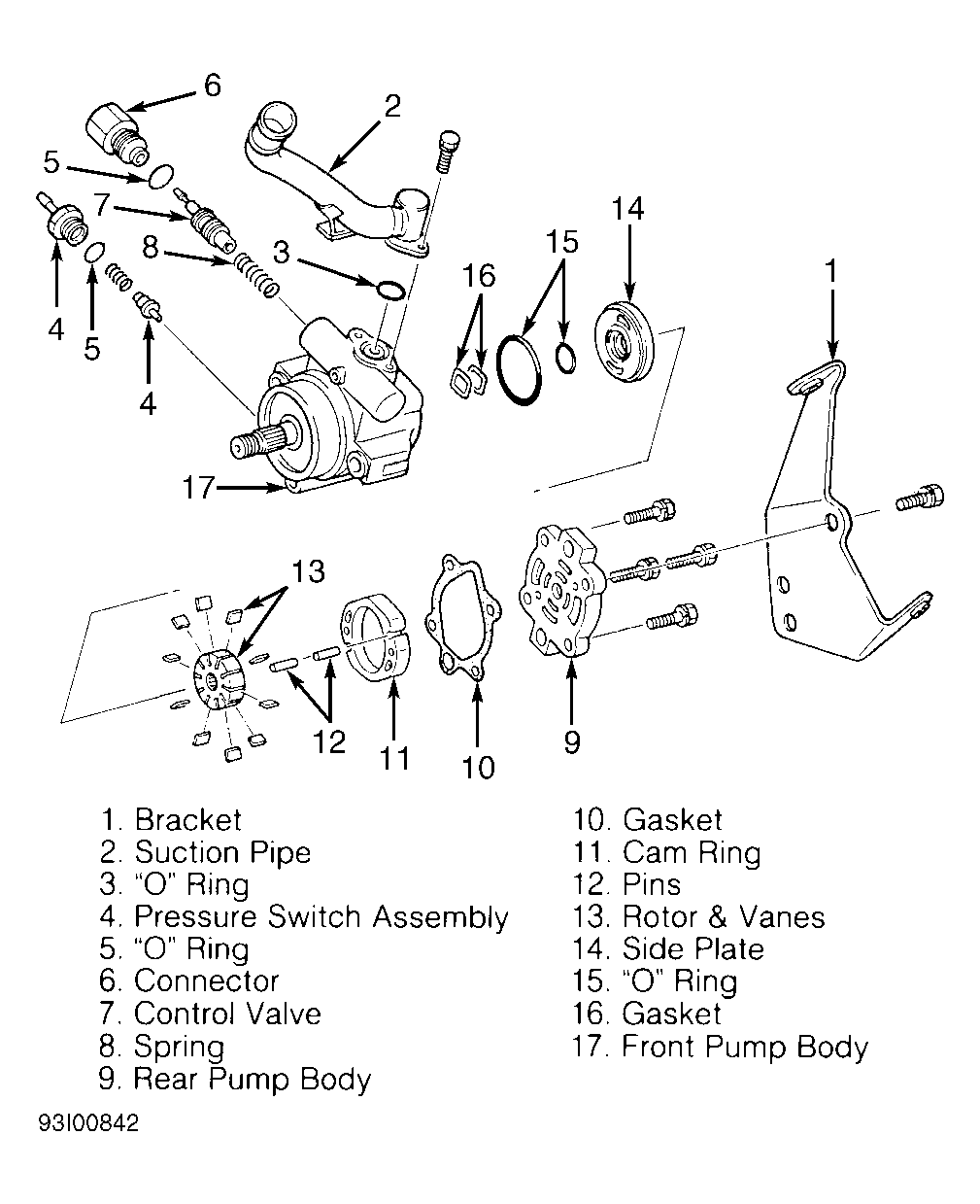

Fig 1: Exploded View Of Power Steering Pump
G93I00842Courtesy of MAZDA MOTORS CORP.
