LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Mazda
>>
1994
>>
929 V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Flowchart 1
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Flowchart 1

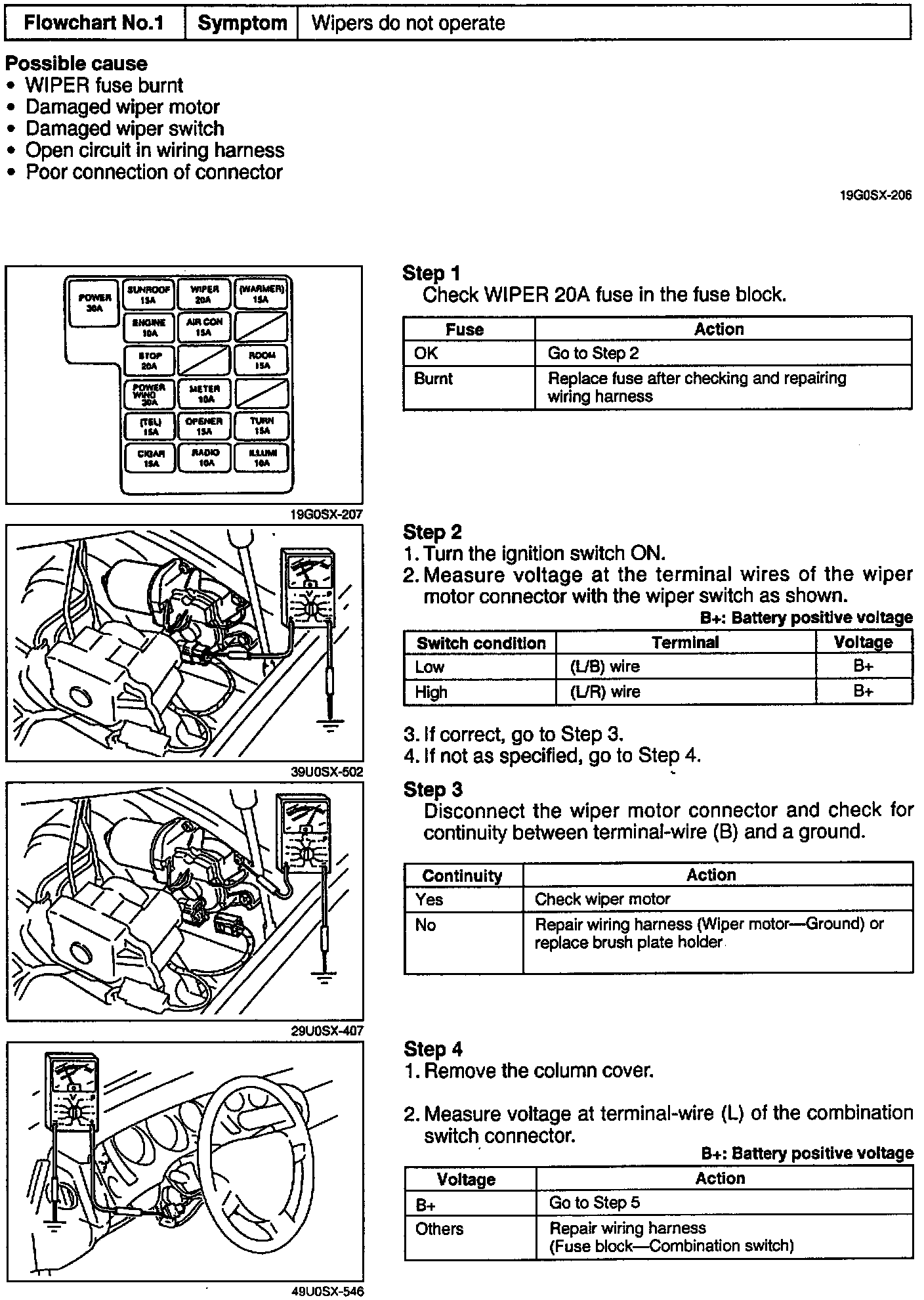

Flowchart 1 - Wipers Do Not Operate (Part 1):

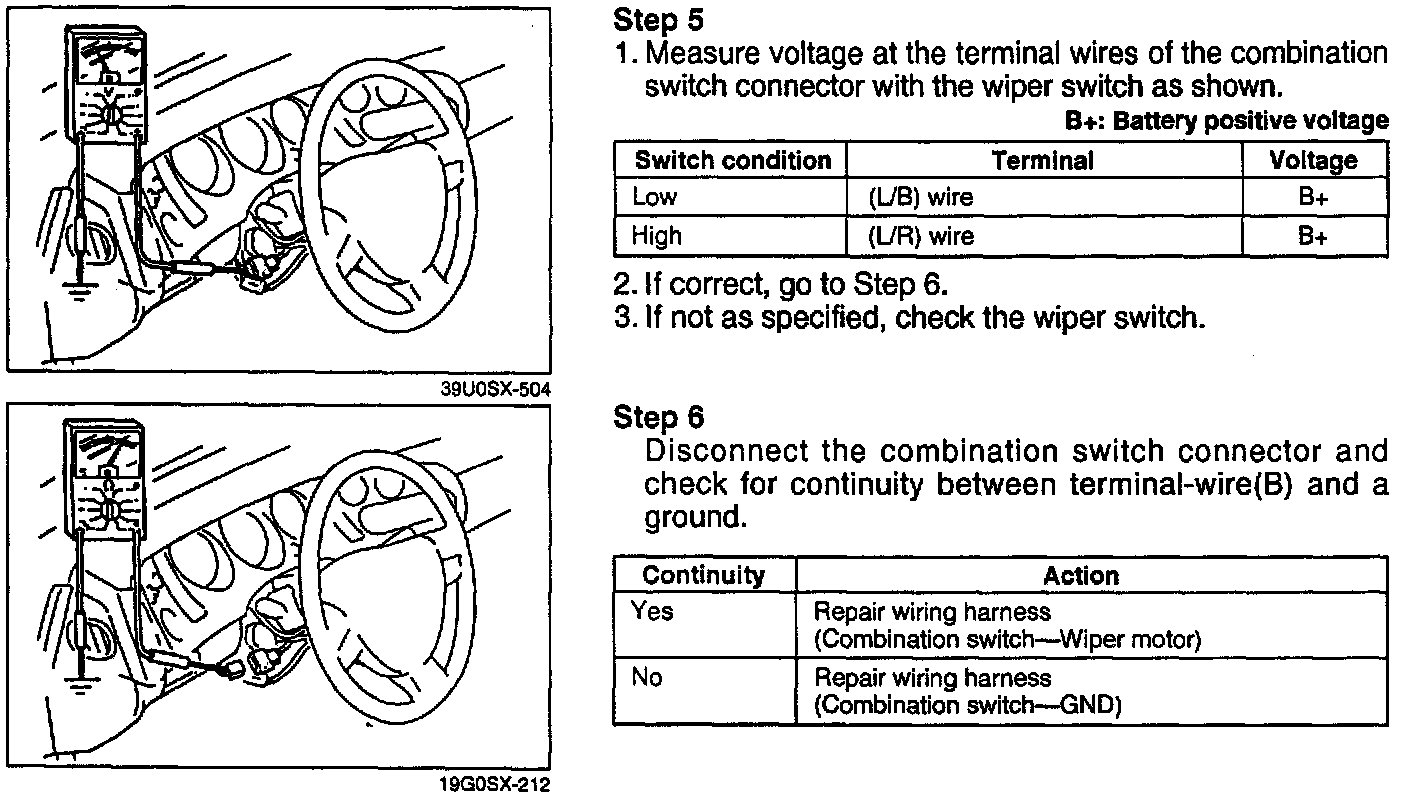

Flowchart 1 - Wipers Do Not Operate (Part 2):
