Home
>>
Mazda
>>
1994
>>
626 V6-2496cc 2.5L DOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Powertrain Management
>>
System Specifications
>>
Terminals 2C - 2O
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

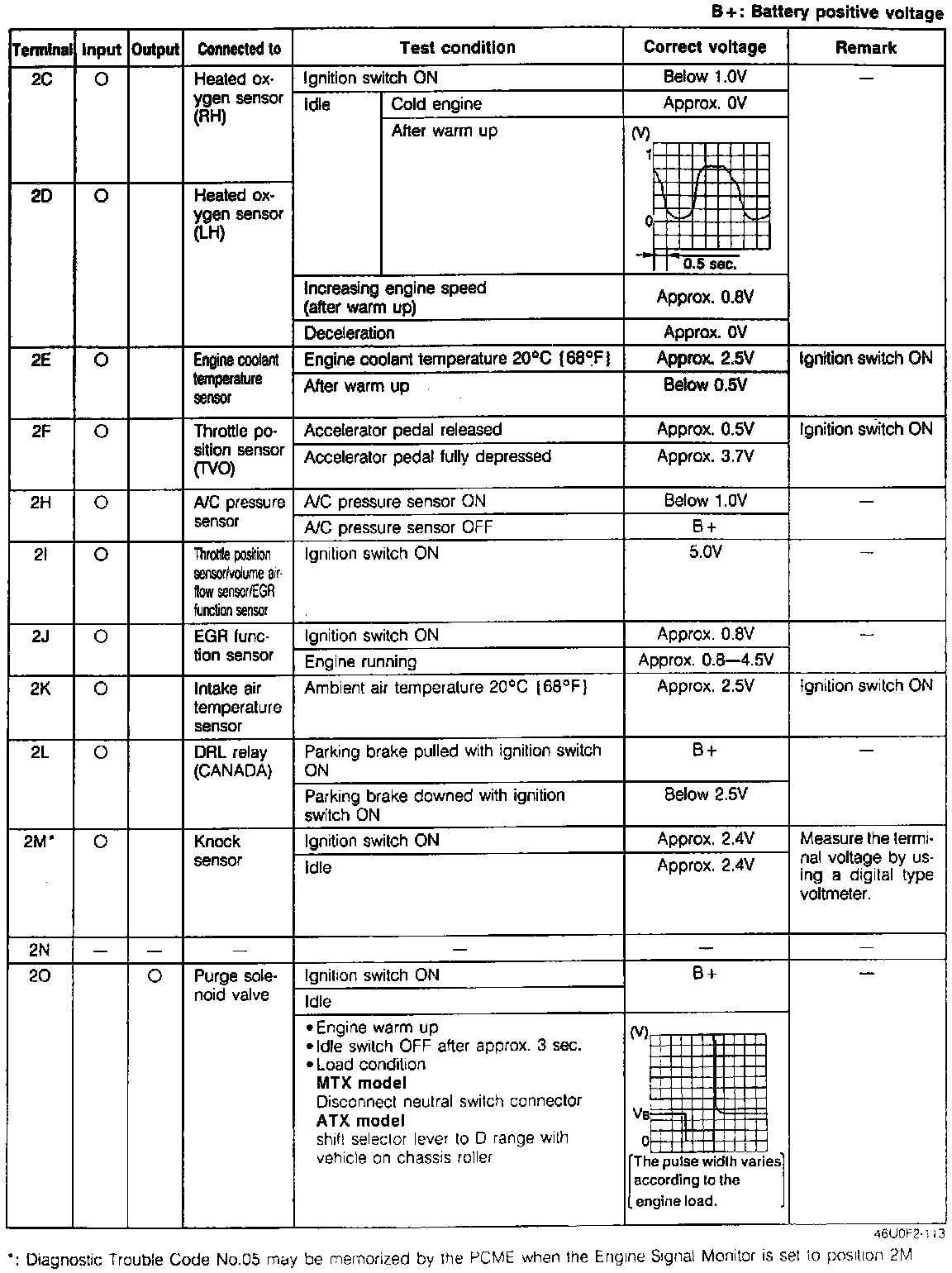

Terminals 2C - 2O
Terminal Voltage:
