626 V6-2496cc 2.5L DOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Powertrain Management
>>
System Specifications
>>
Terminals 1L - 2B
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

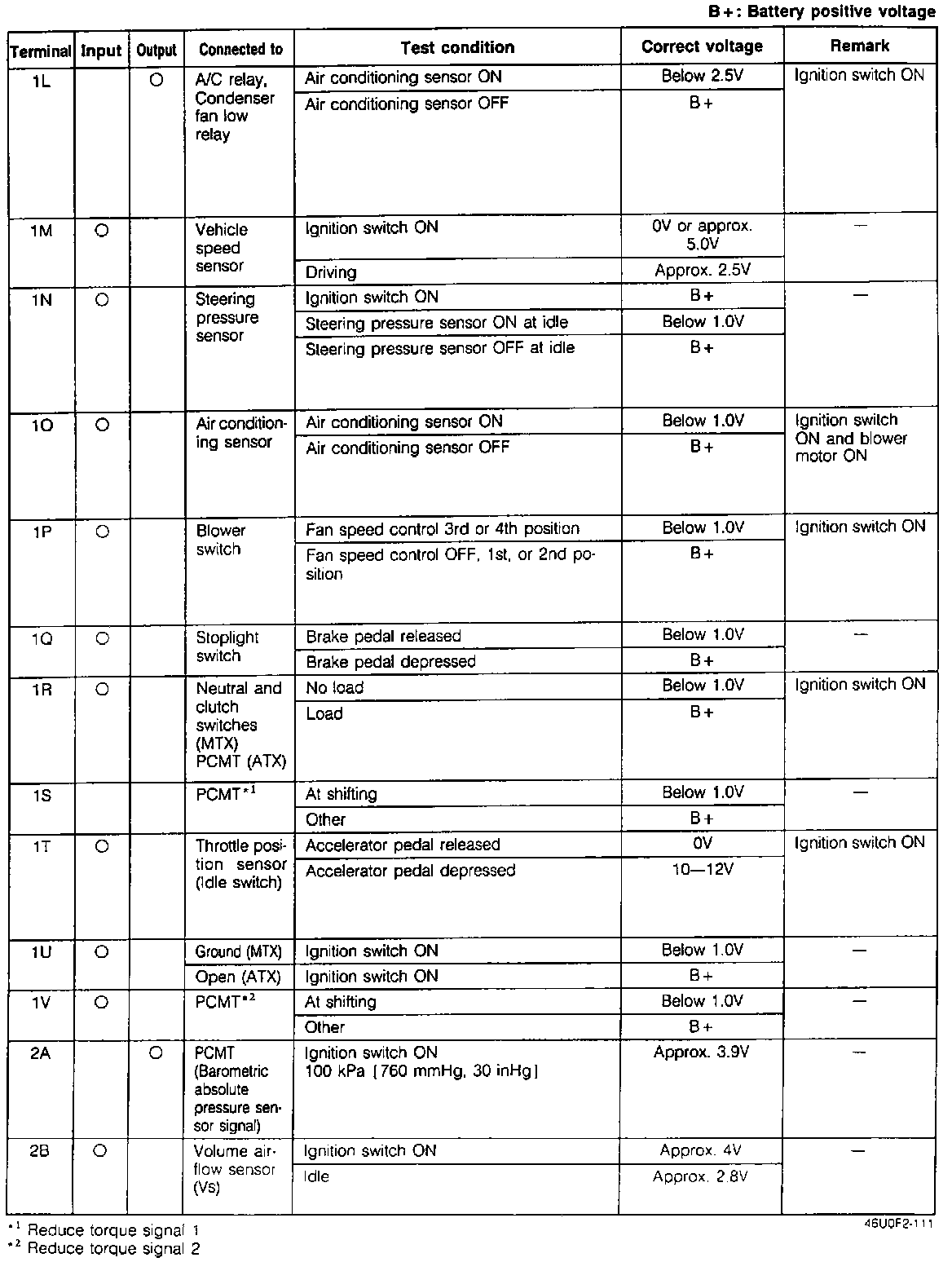

Terminals 1L - 2B
Terminal Voltage:
