Home >> Mazda >> 1994 >> 626 L4-1991cc 2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

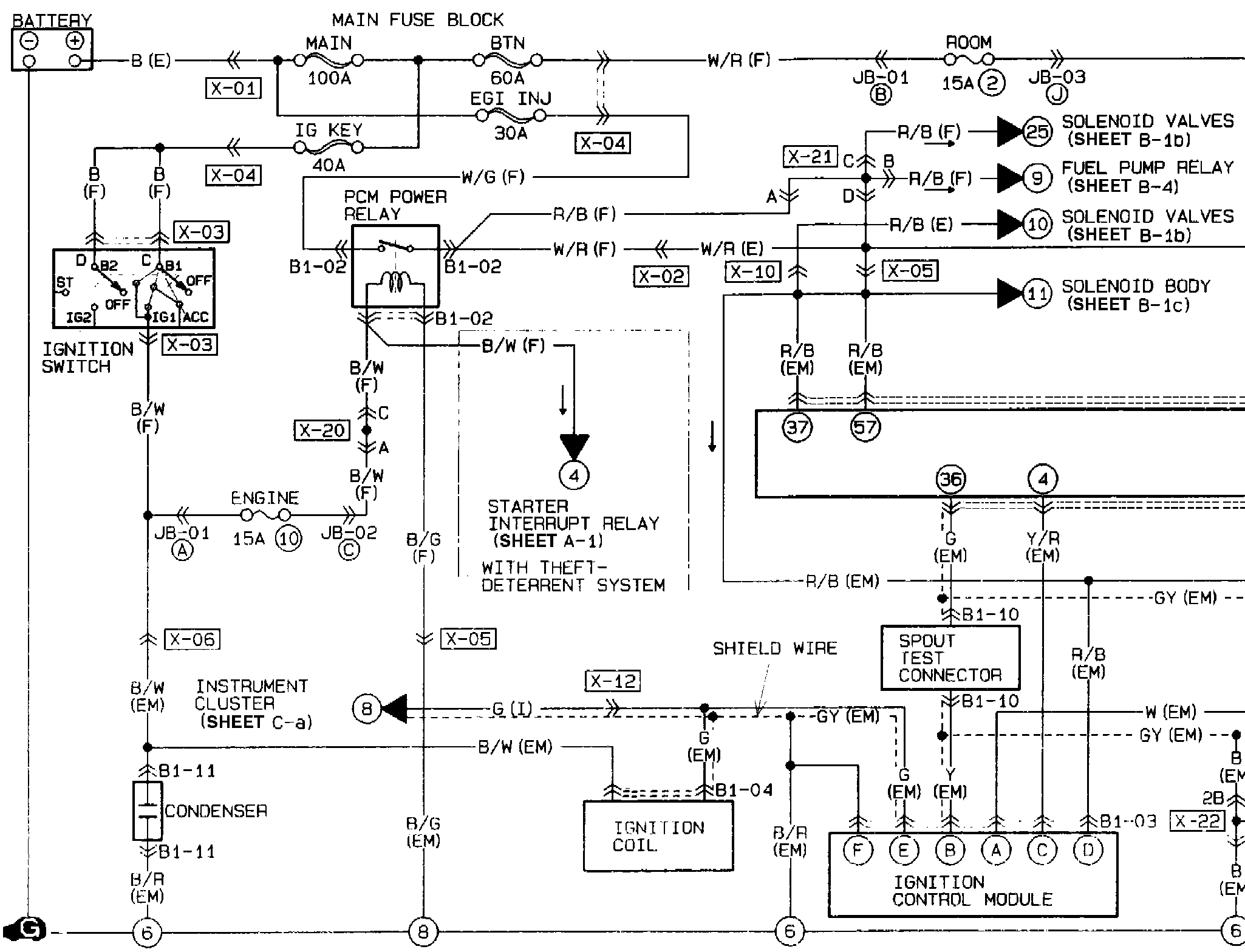

Air Flow Meter/Sensor

���#ATX EC-AT Control System, Engine Control System, Ignition System:
