Code 33: (Solenoid Valve - Port Air By-Pass)

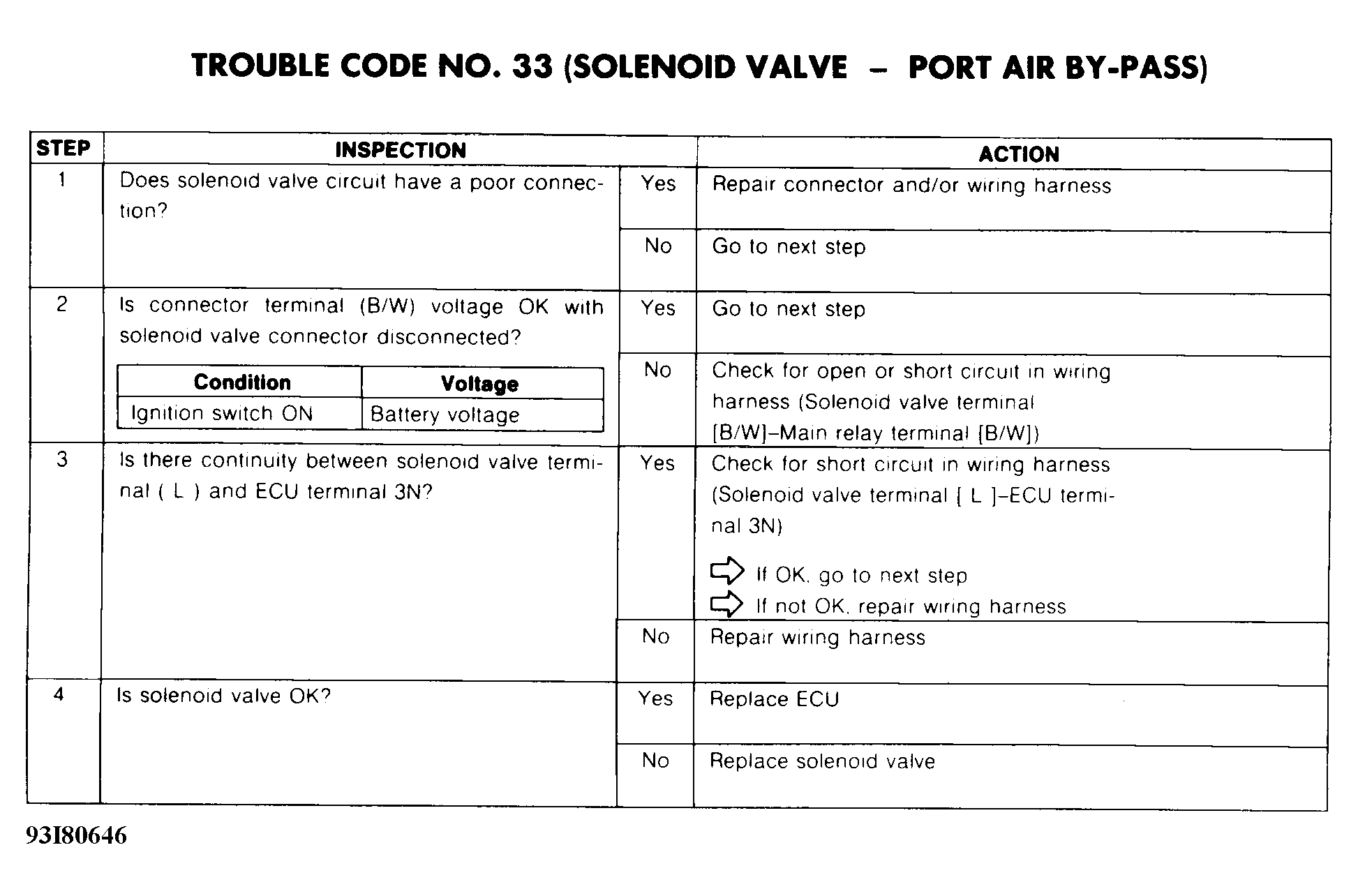

Fig 1: Trouble Code No. 33 - Diagnostic Flowchart

Courtesy of MAZDA MOTORS CORP.

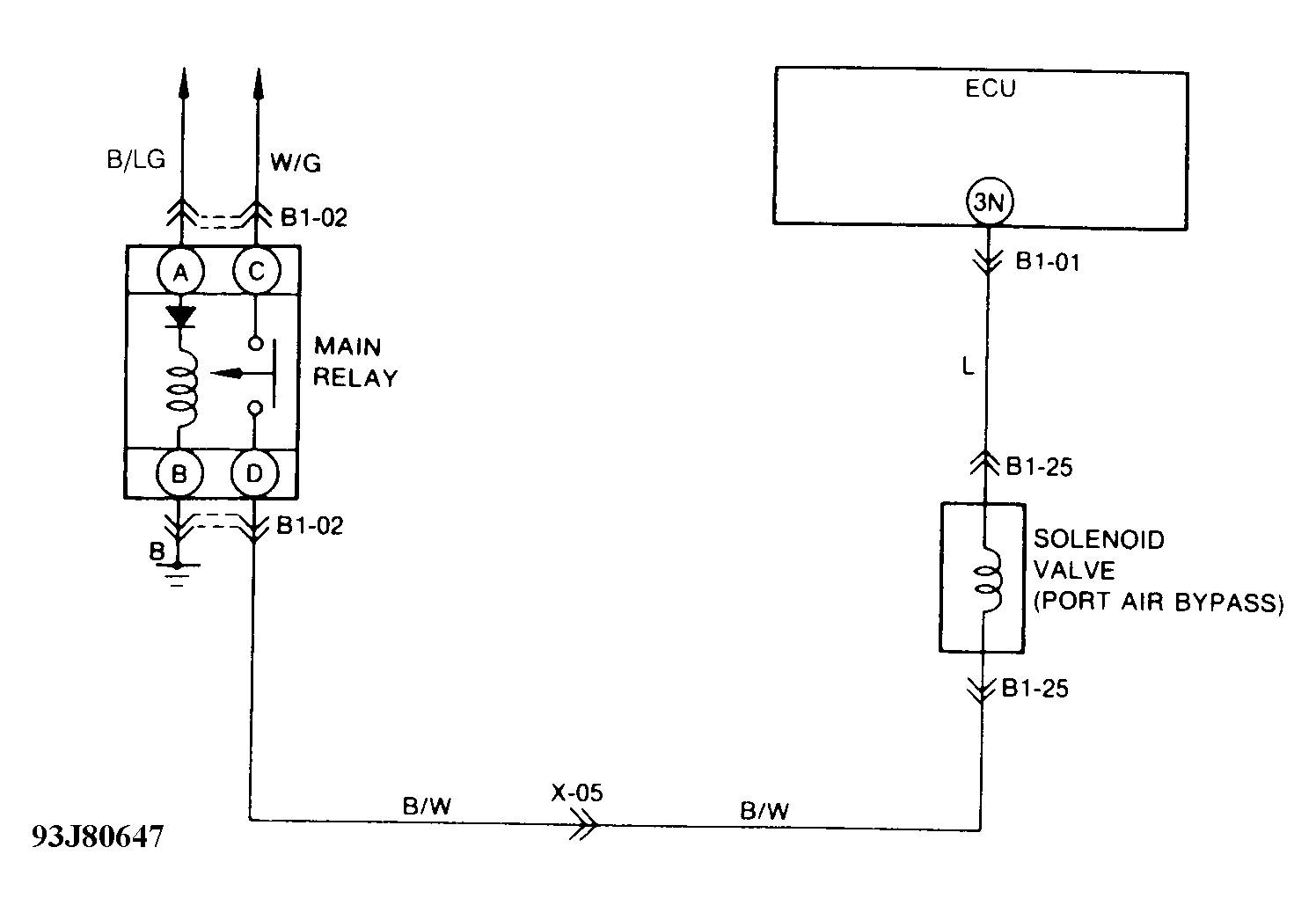

Fig 2: Trouble Code No. 33 - Schematic

Courtesy of MAZDA MOTORS CORP.
