Code 62: (Solenoid Valve 3-4 Shift - ATX)

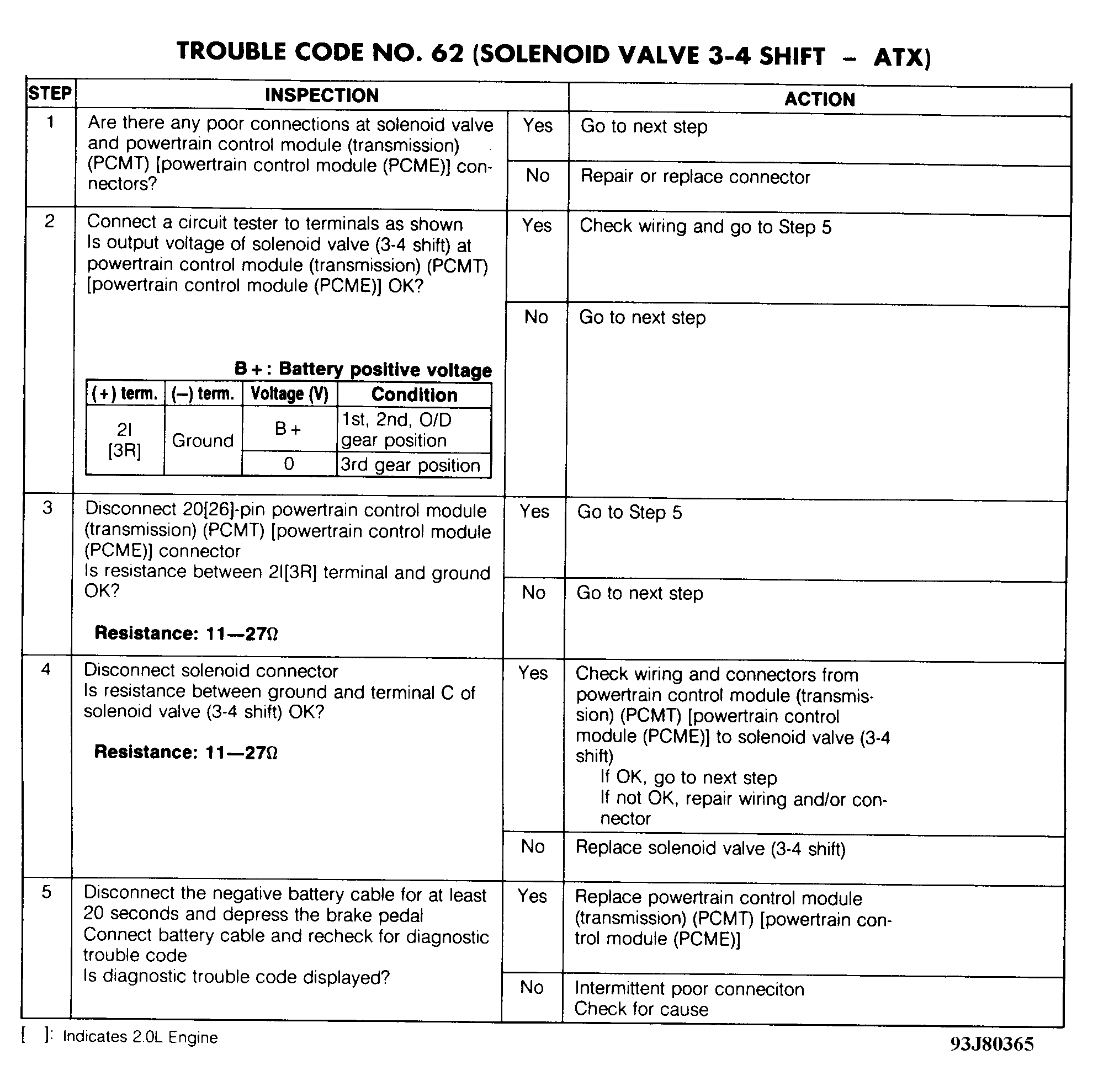

Fig 1: Trouble Code No. 62 - Diagnostic Flowchart
G93J80365Courtesy of MAZDA MOTORS CORP.

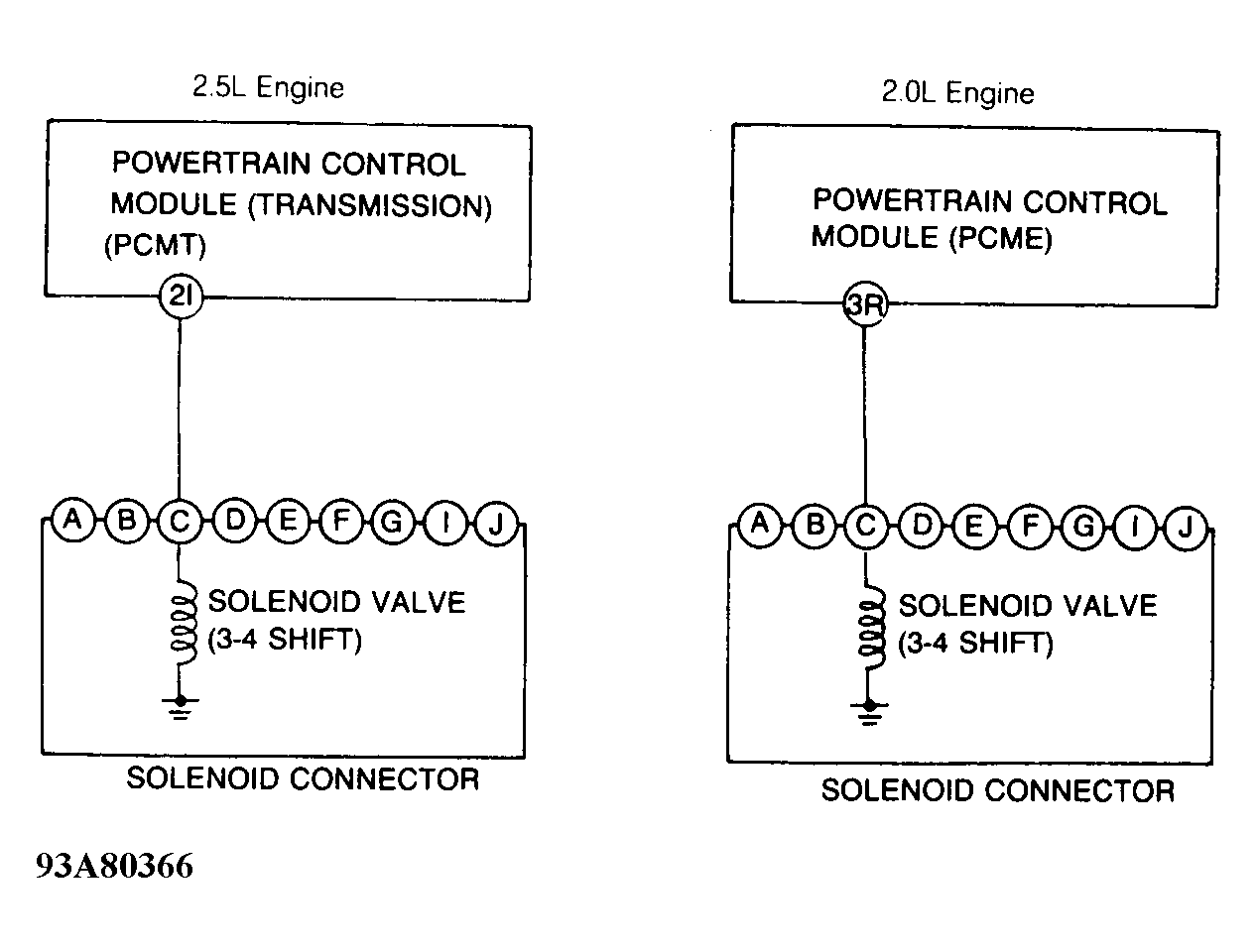

Fig 2: Trouble Code No. 62 - Schematic
G93A80366Courtesy of MAZDA MOTORS CORP.
