Automatic Transmission

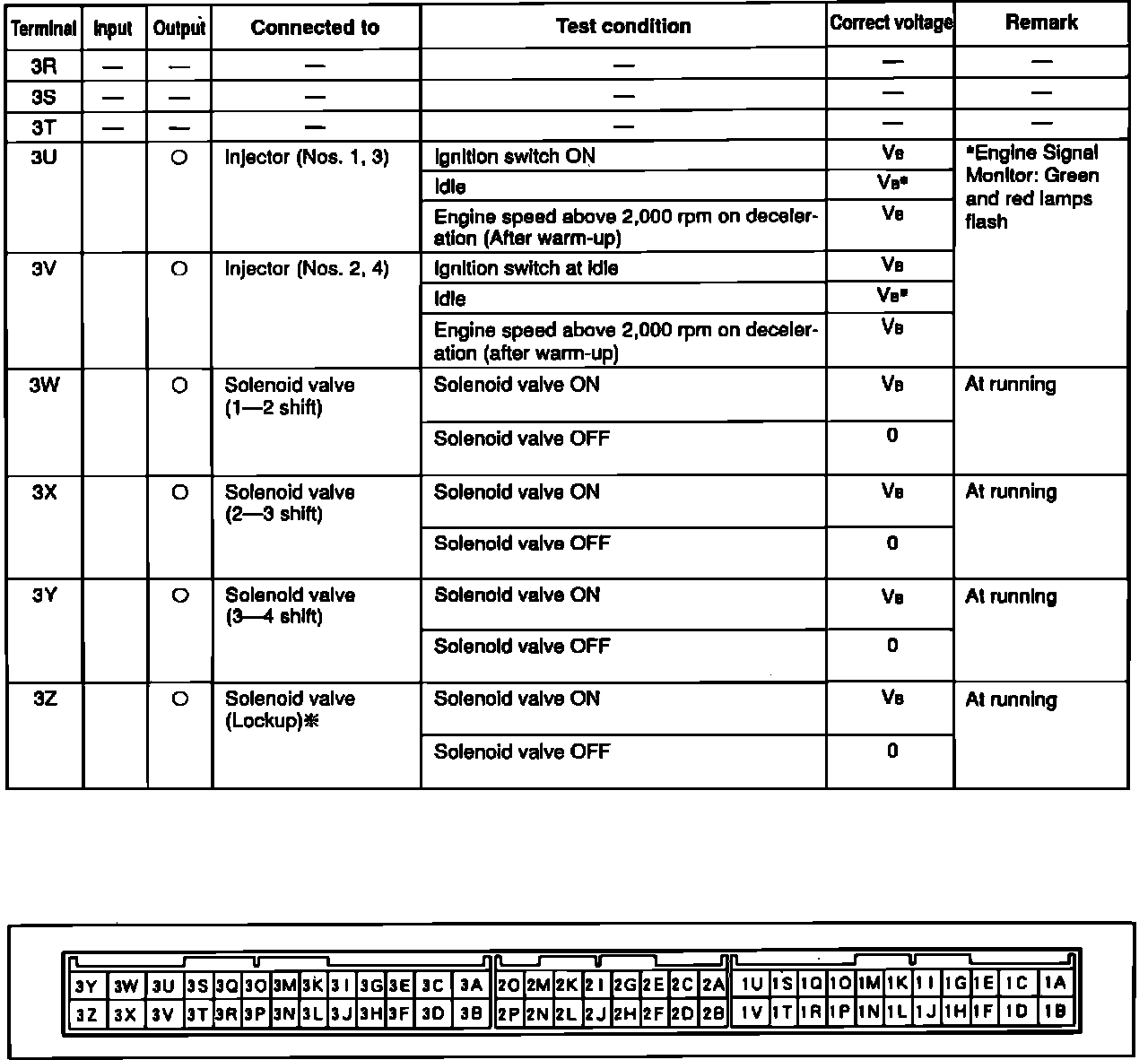

Engine Control System. A/T. ECU Pin Voltage Chart:

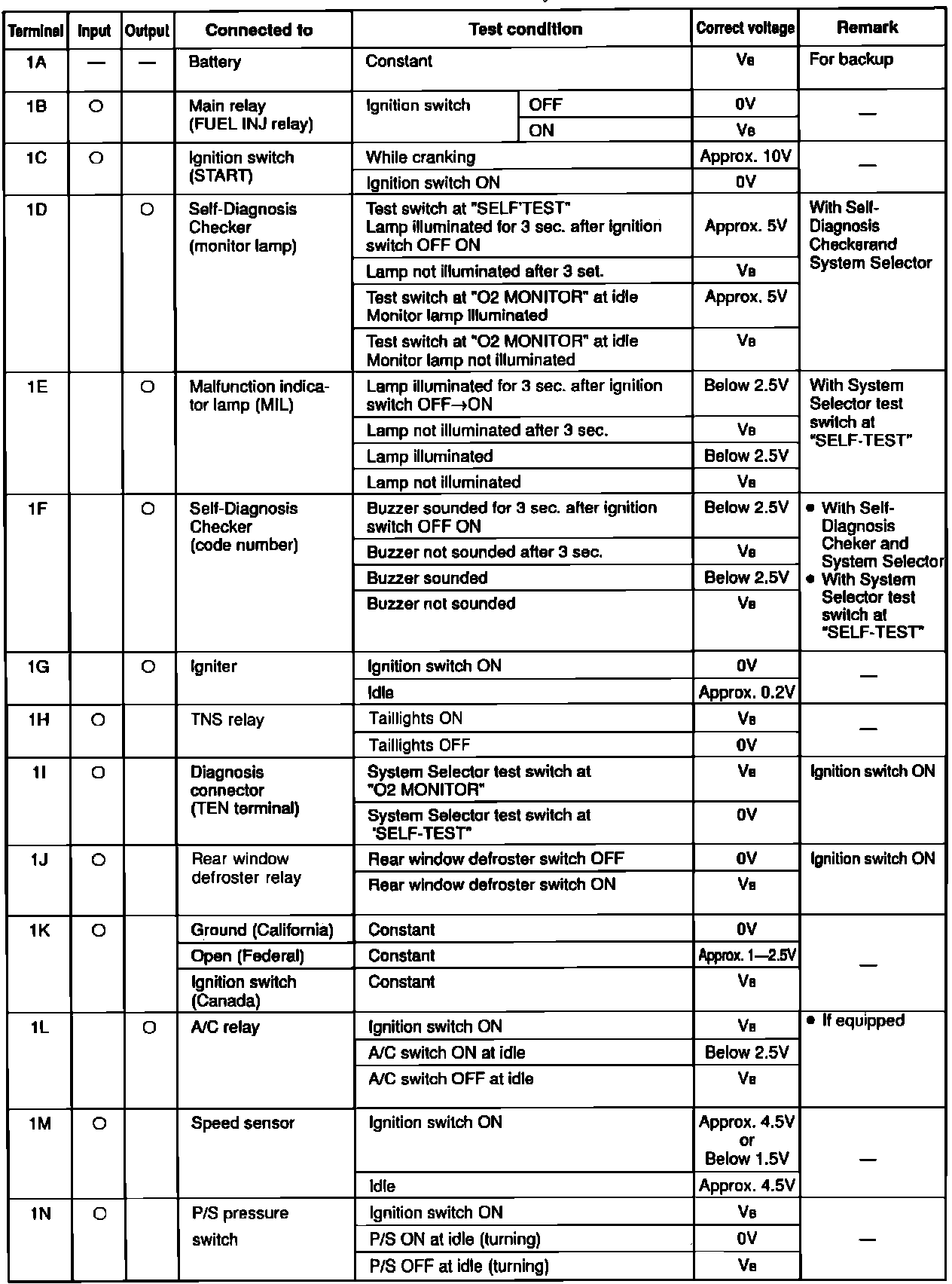

Engine Control System. A/T. ECU Pin Voltage Chart:

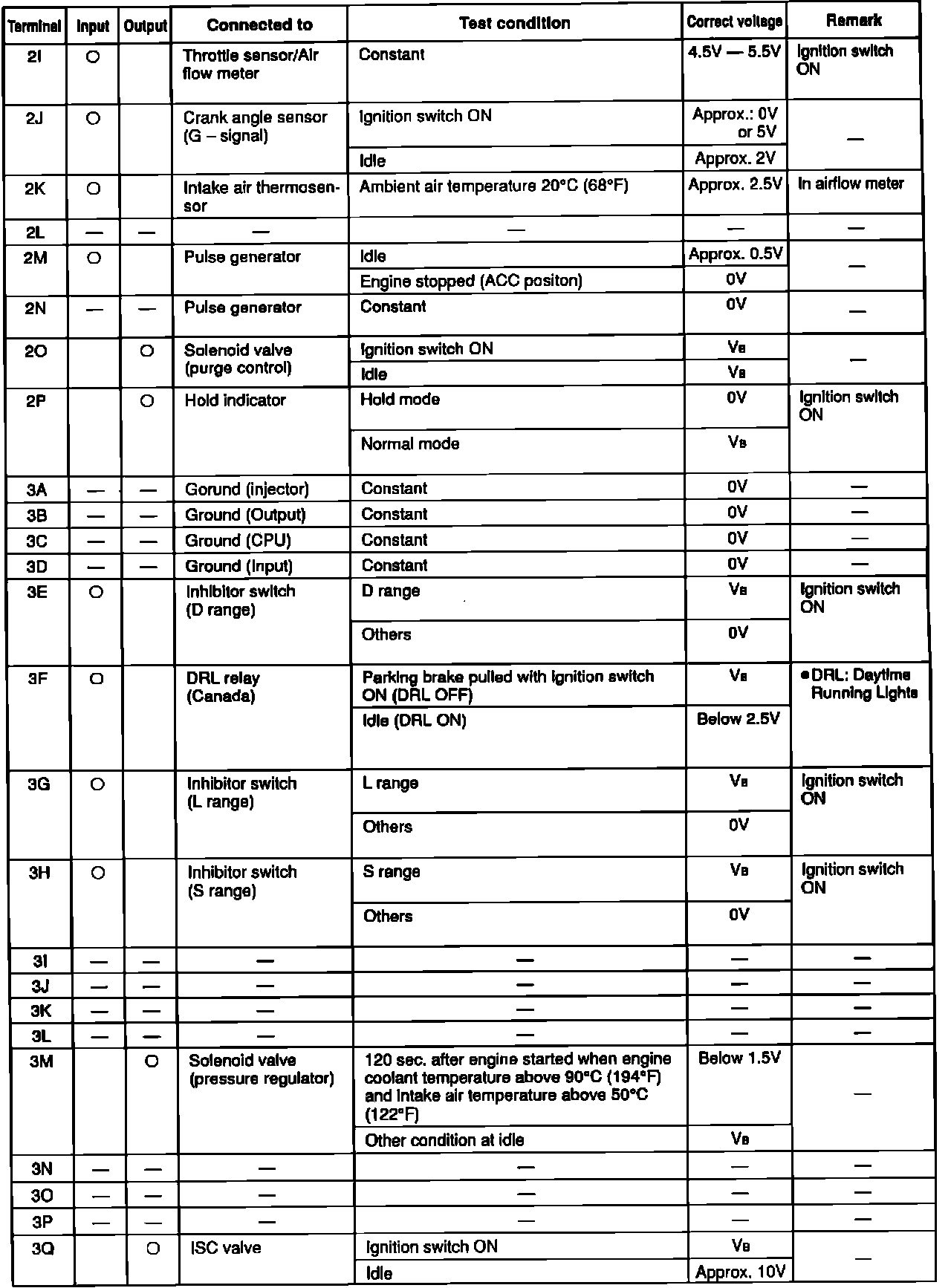

Engine Control System. A/T. ECU Pin Voltage Chart:

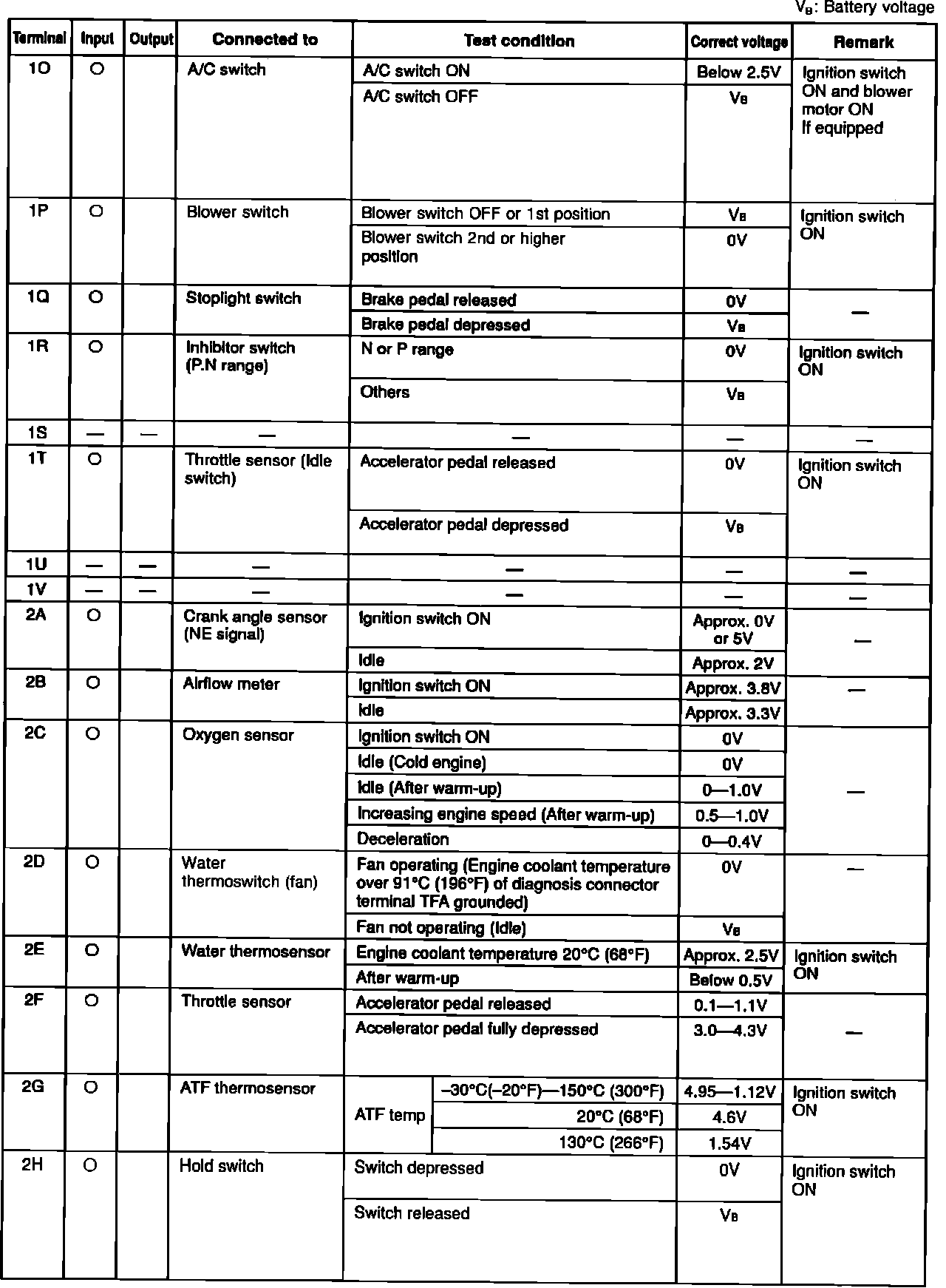

Engine Control System. A/T. ECU Pin Voltage Chart:
