Code 4: Ne1 Signal-Distributor

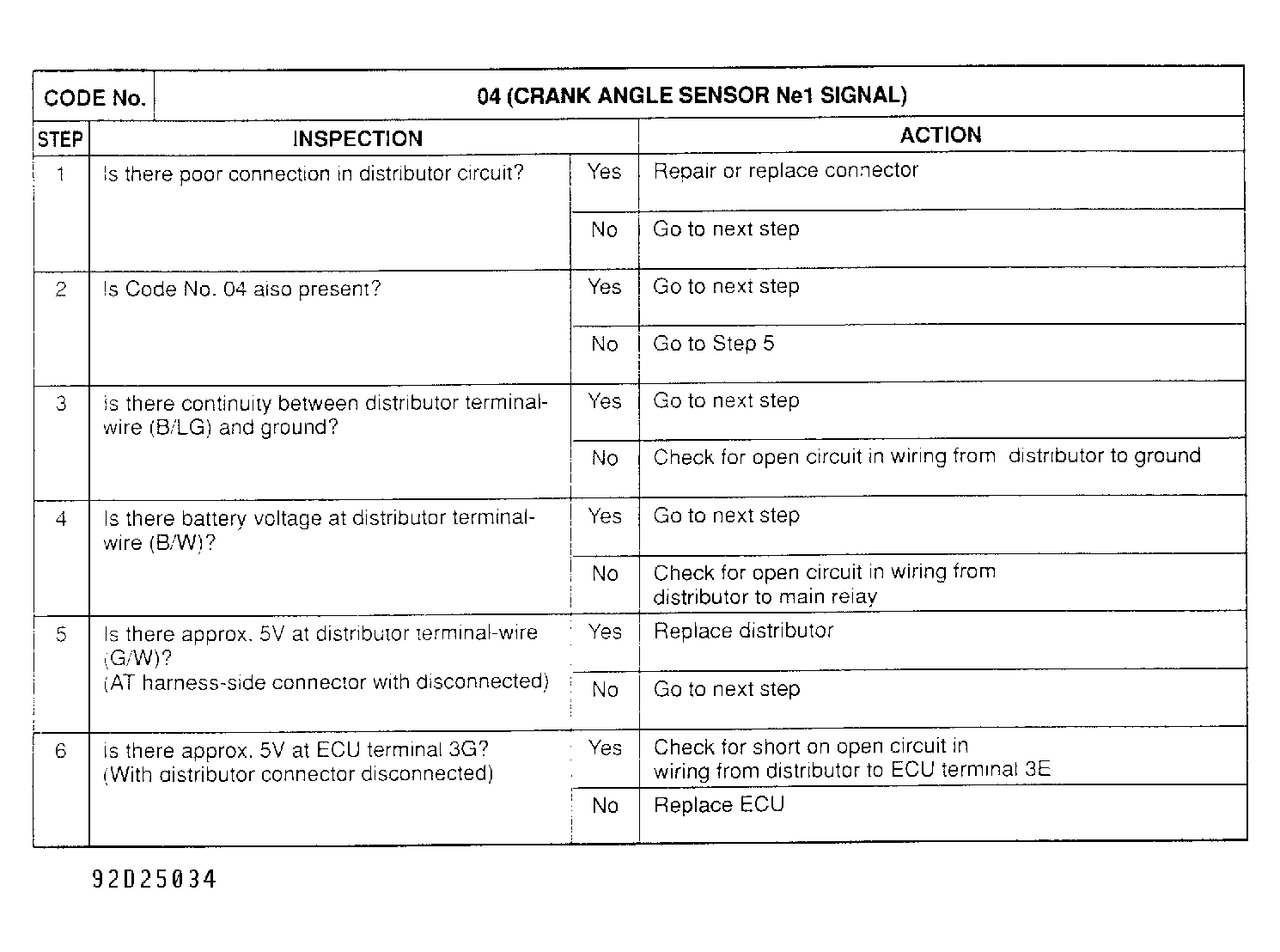

Fig 1: Trouble Code No. 4 Ne1 Signal-distributor
G92D25034Courtesy of MAZDA MOTORS CORP.

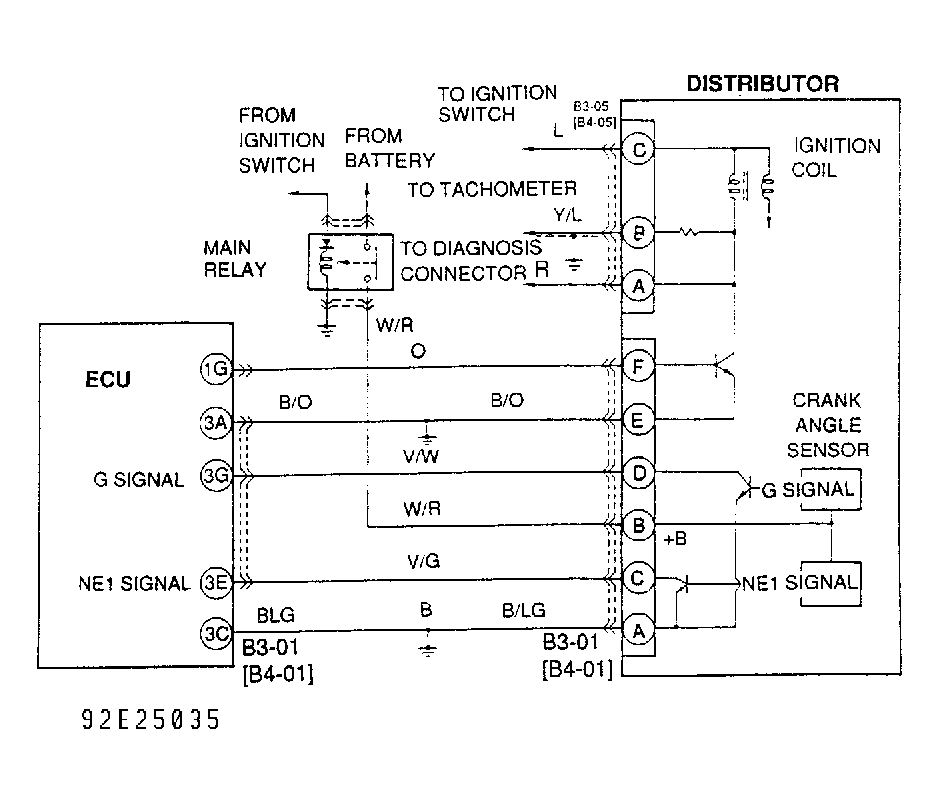

Fig 2: Circuit Diagram, Ne1 Signal-distributor
G92E25035Courtesy of MAZDA MOTORS CORP.
