Timer/Control Unit, Accessory Control

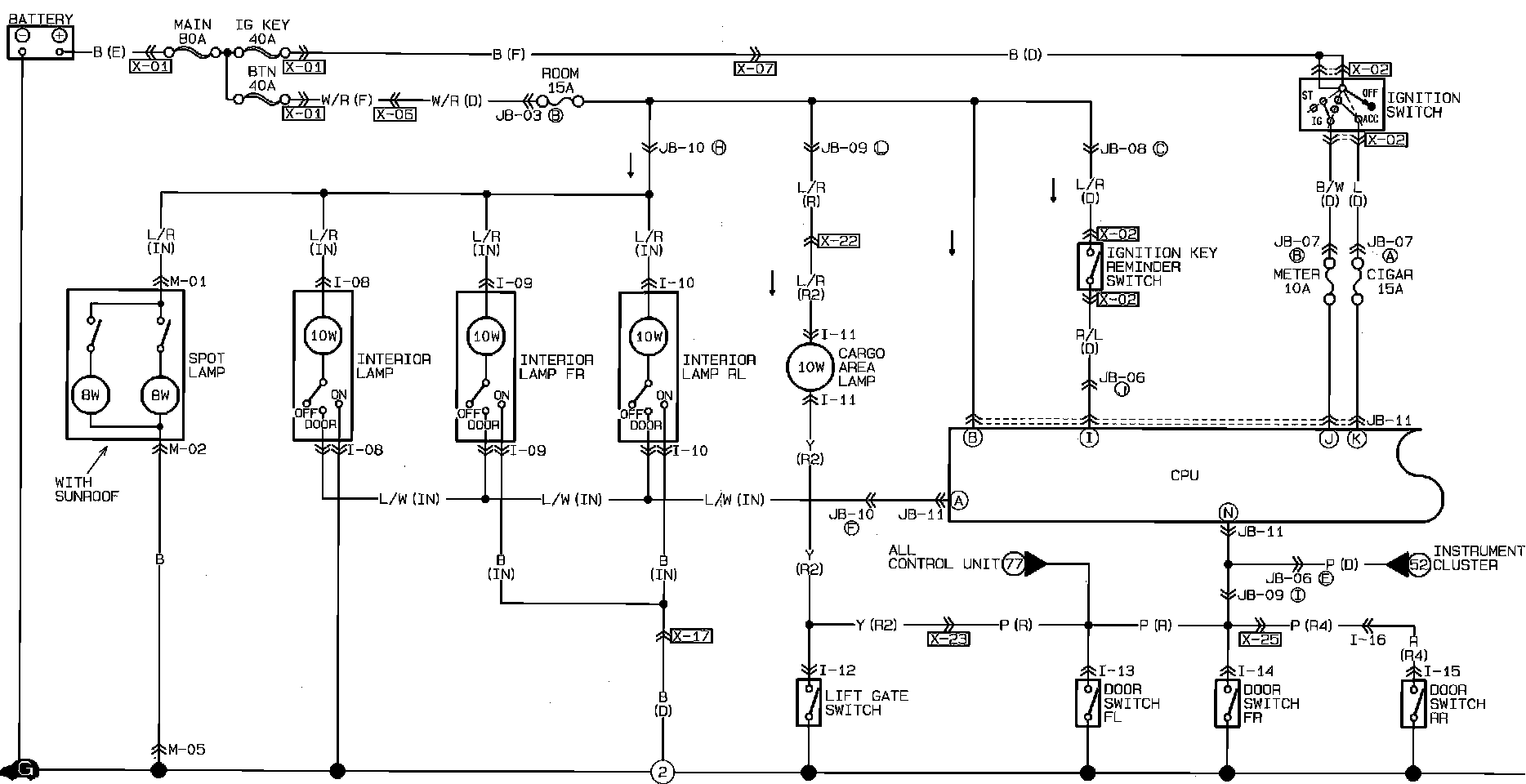

Interior And Spot Lamps. Central Processing Unit (CPU).:

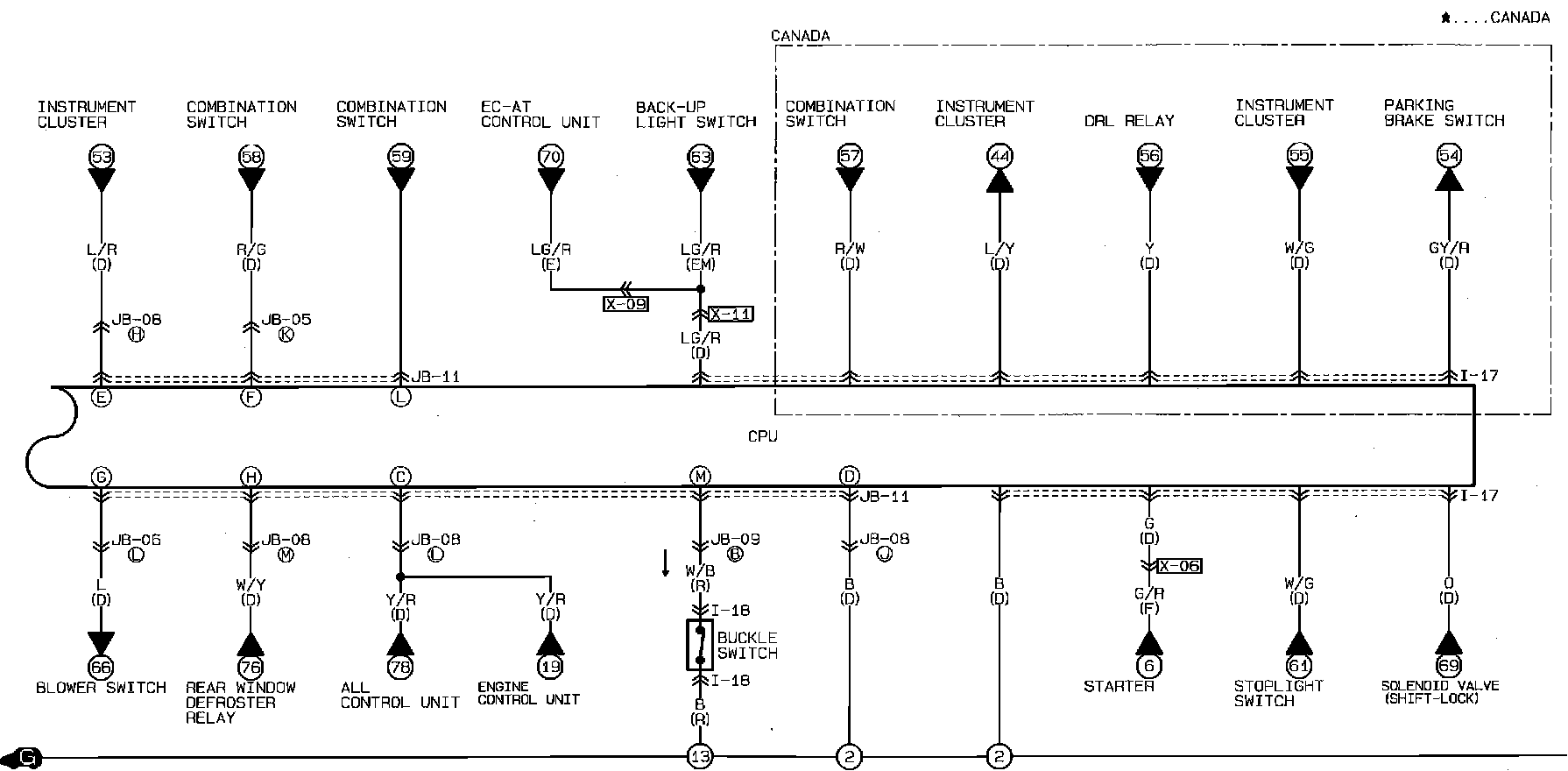

Central Processing Unit (CPU).:
