Without Logical Mode Control

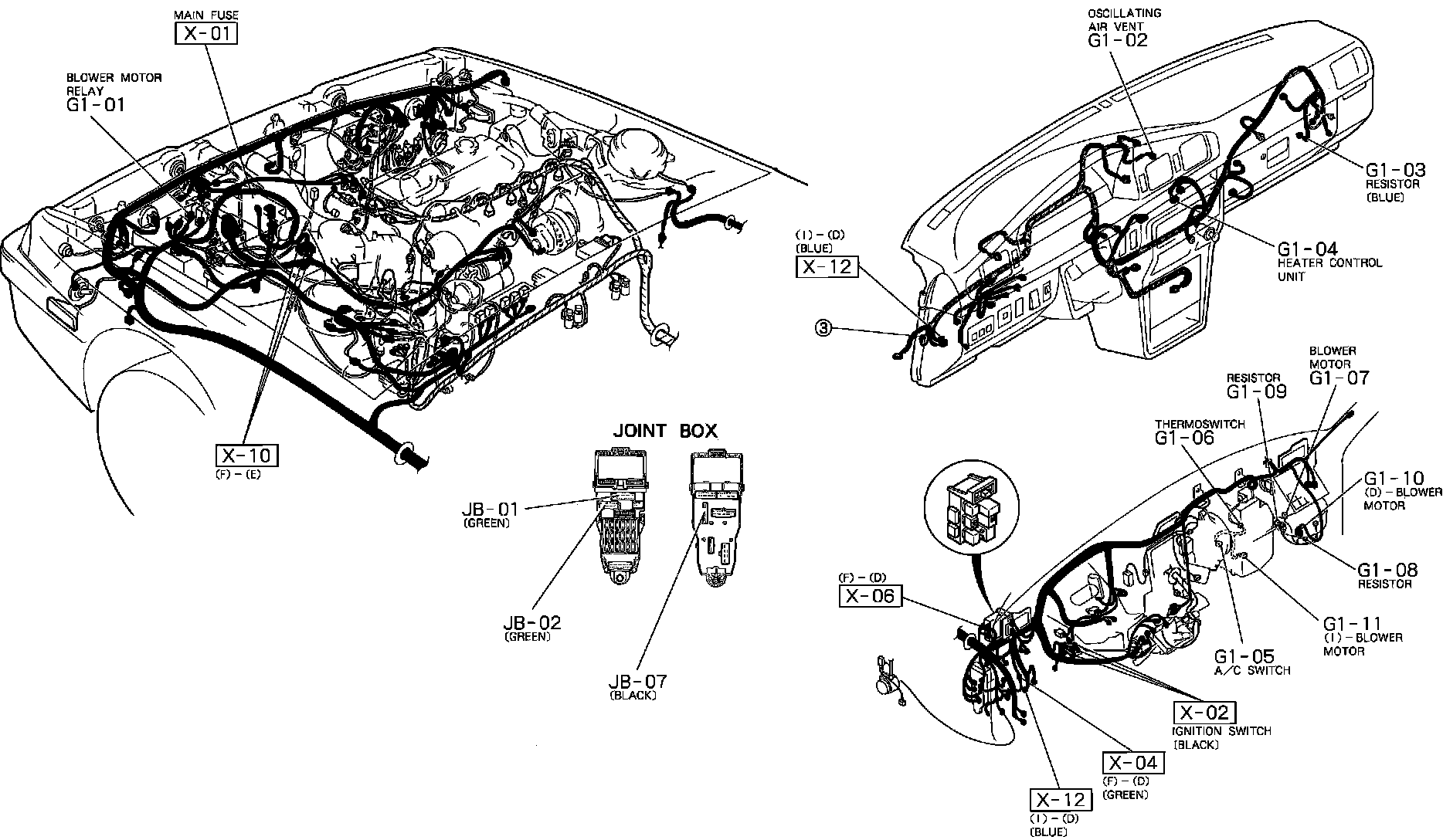

Heater And Air Conditioning. Less Logical Mode Control. Harness And Connector Locations:
