Component Locations

For component locations, refer to illustrations. See Fig 1 and Fig 2 .

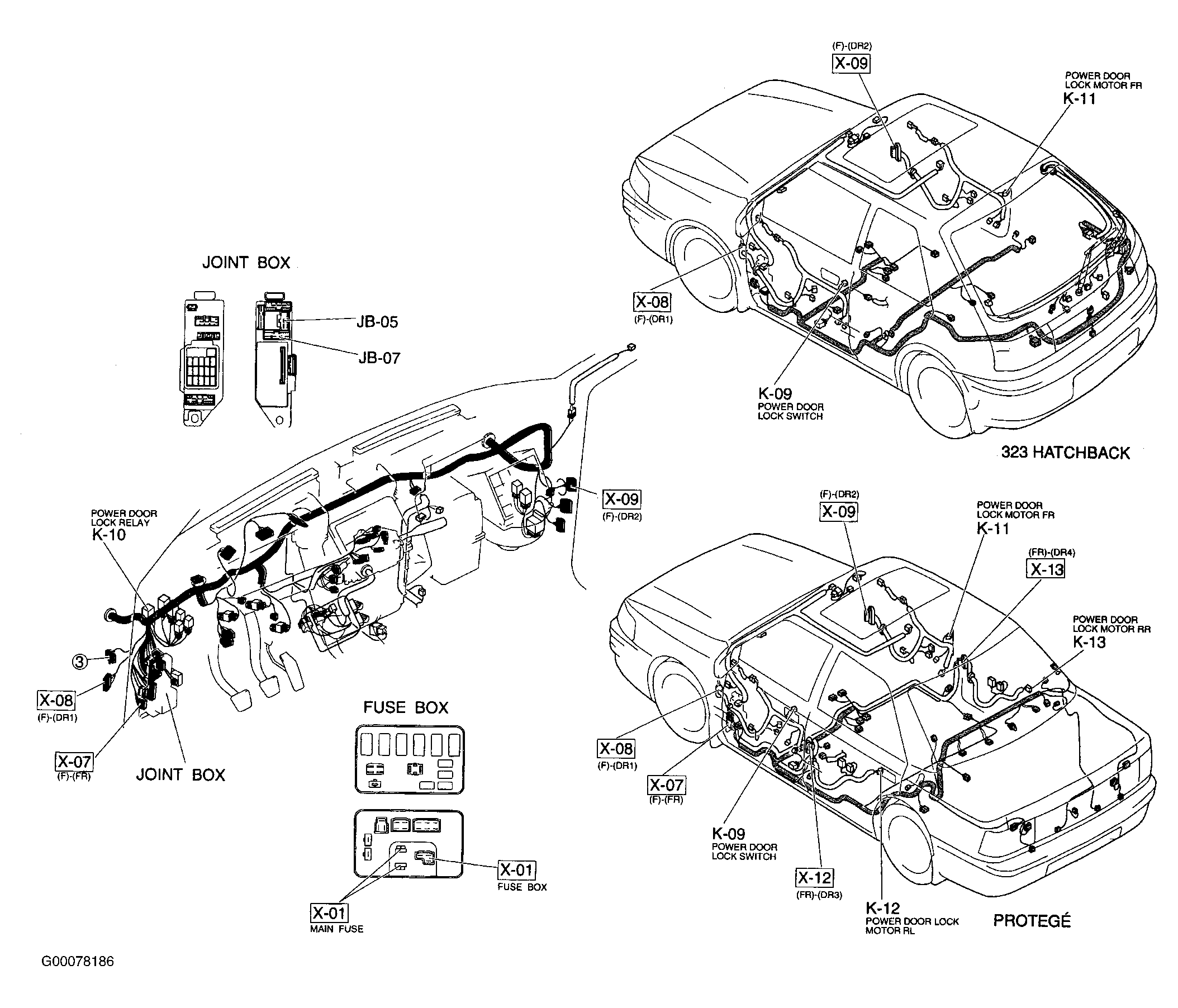

Fig 1: Locating Power Door Lock Electrical Components (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

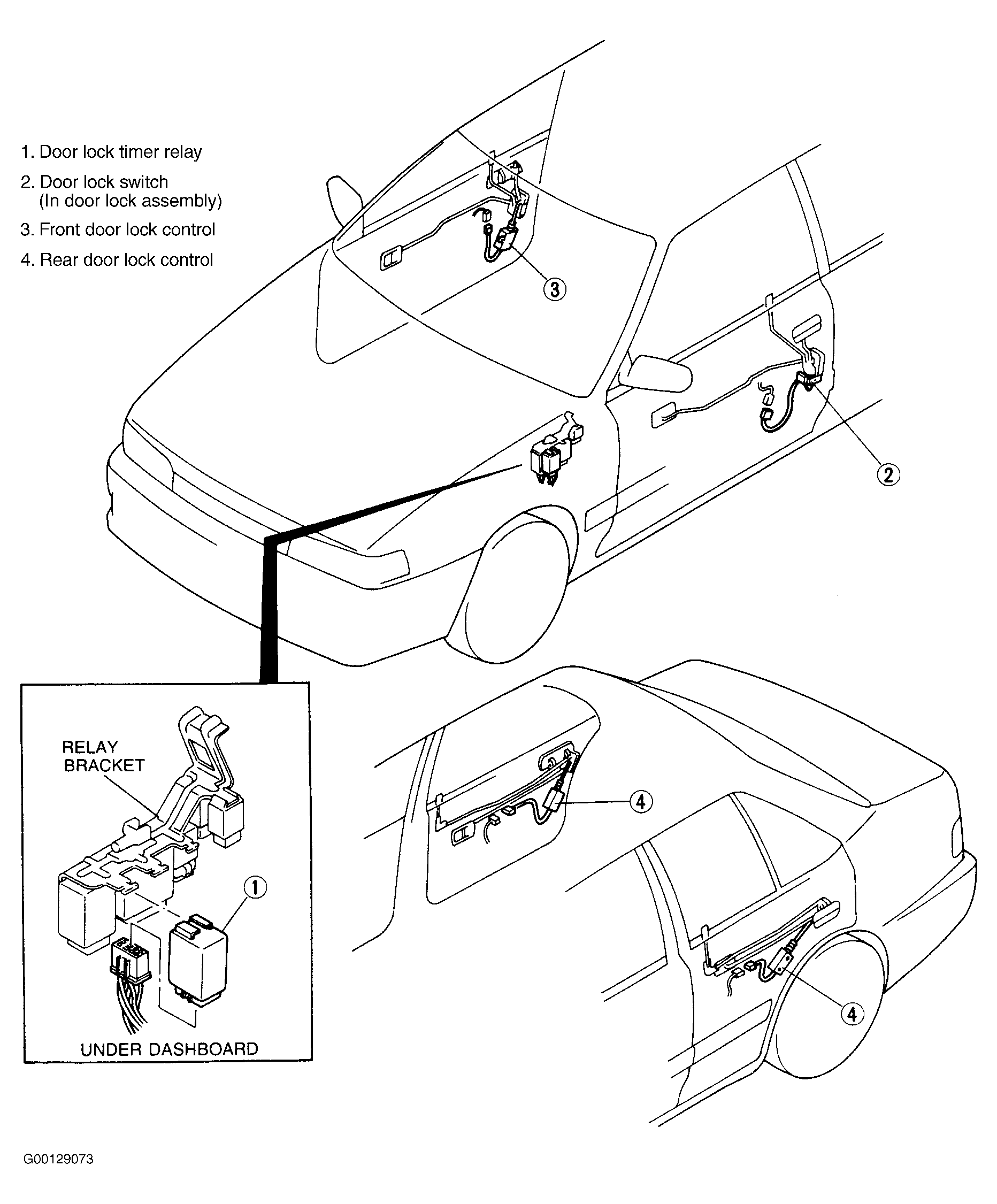

Fig 2: Locating Power Door Lock Electrical Components (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
