Ignition Switch

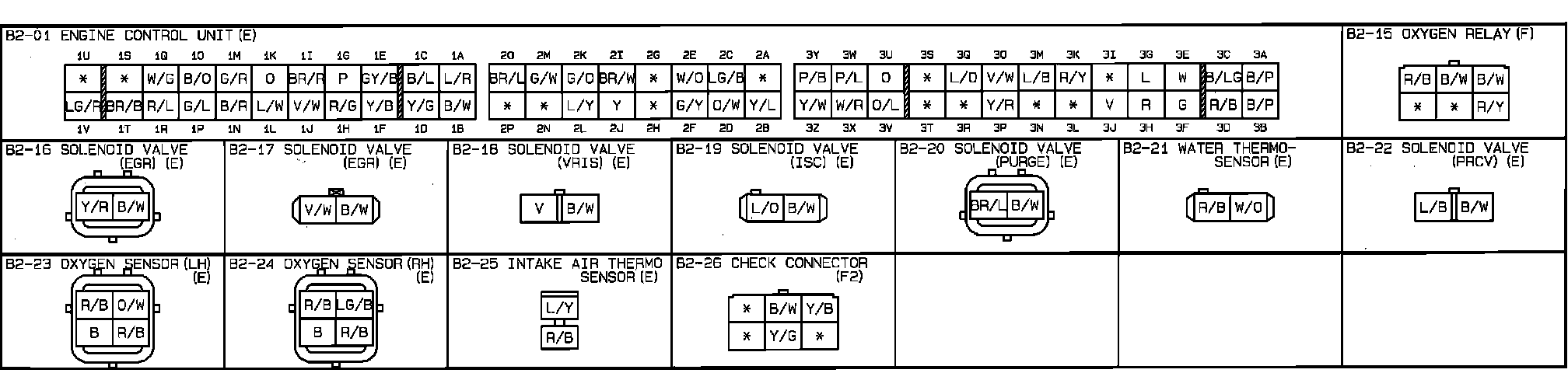

Engine Control System. DOHC. Connector Identification:

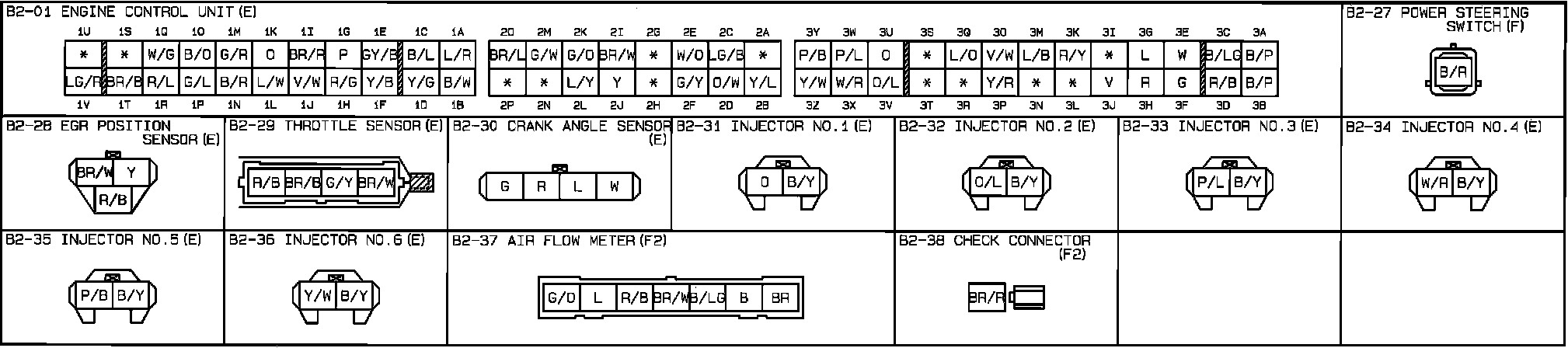

Engine Control System. DOHC. Connector Identification:

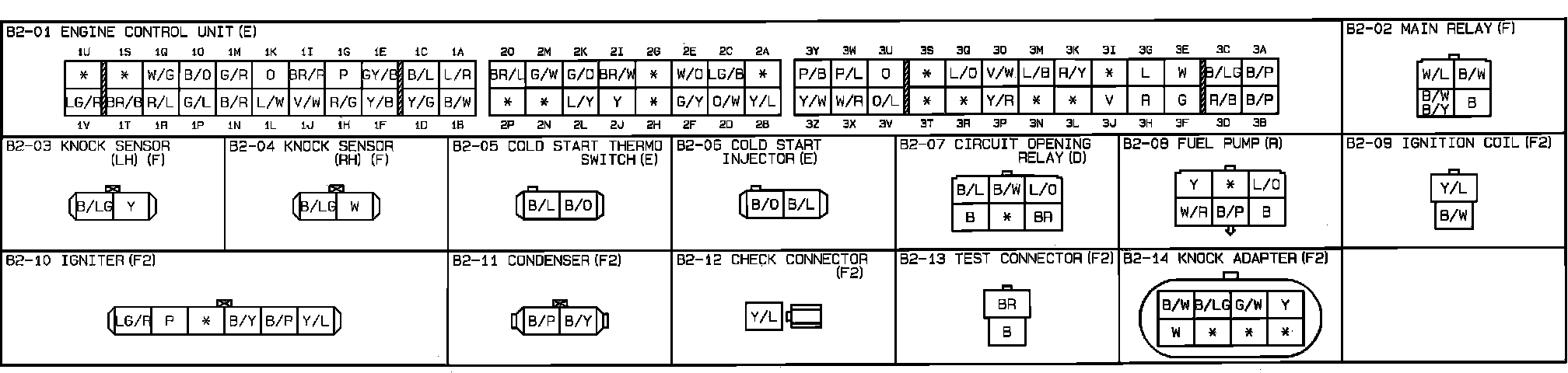

Engine Control System. DOHC. Connector Identification:
