Turbo Charts

NOTE: Terminal identification is not available.

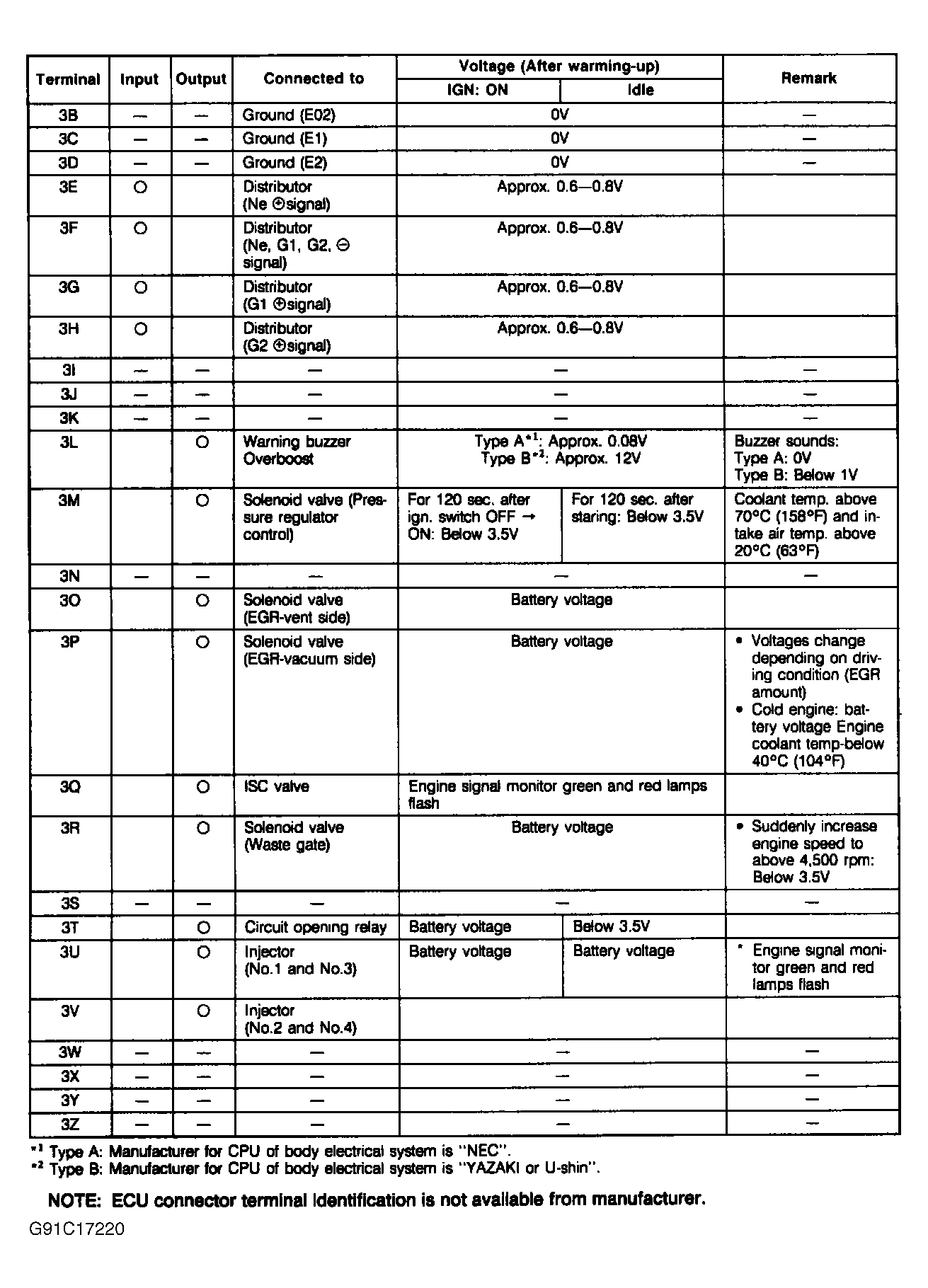

Fig 1: Turbo ECU Pin Voltage Chart (1 of 3)

Courtesy of MAZDA MOTORS CORP.

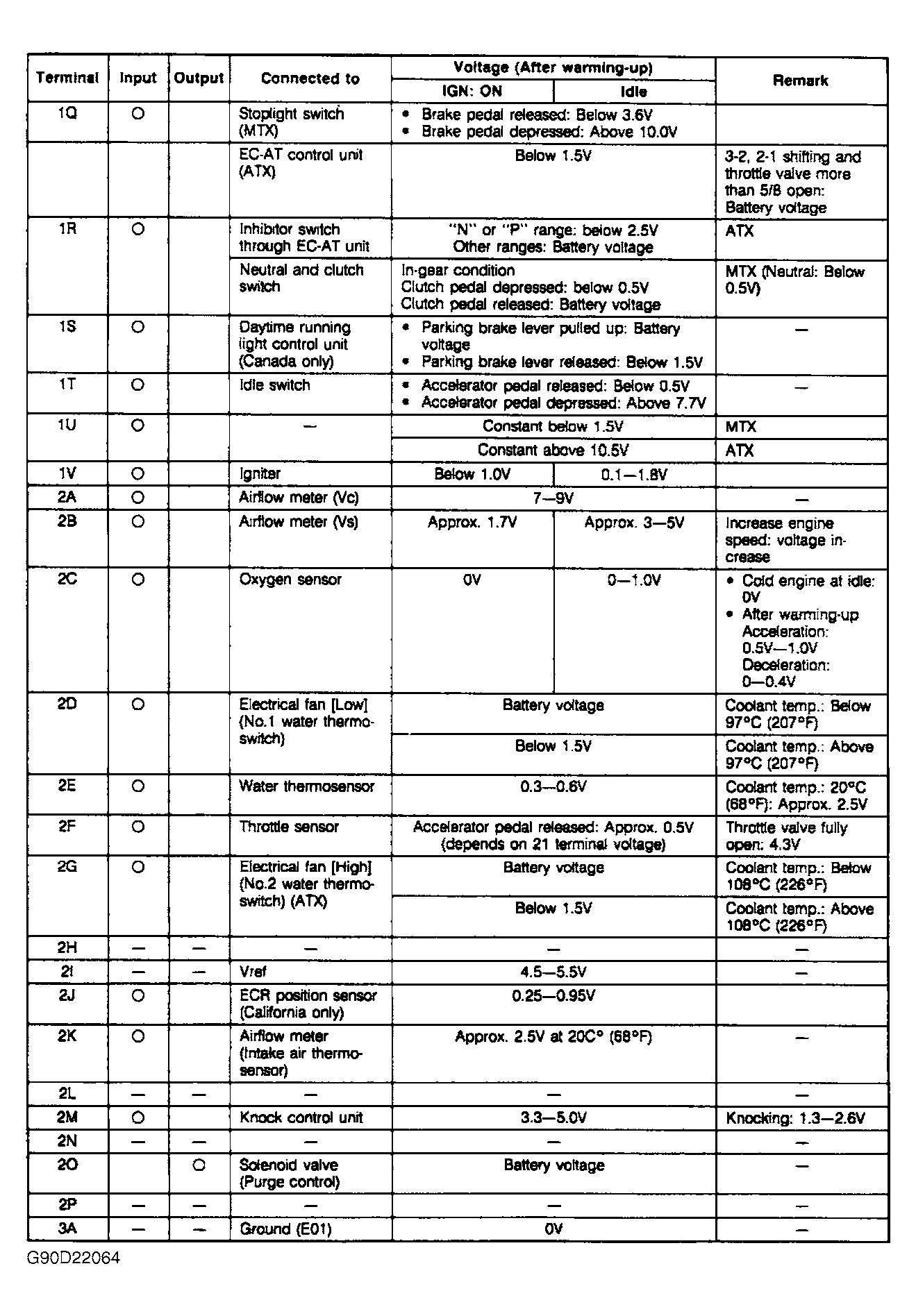

Fig 2: Turbo ECU Pin Voltage Chart (2 of 3)

Courtesy of MAZDA MOTORS CORP.

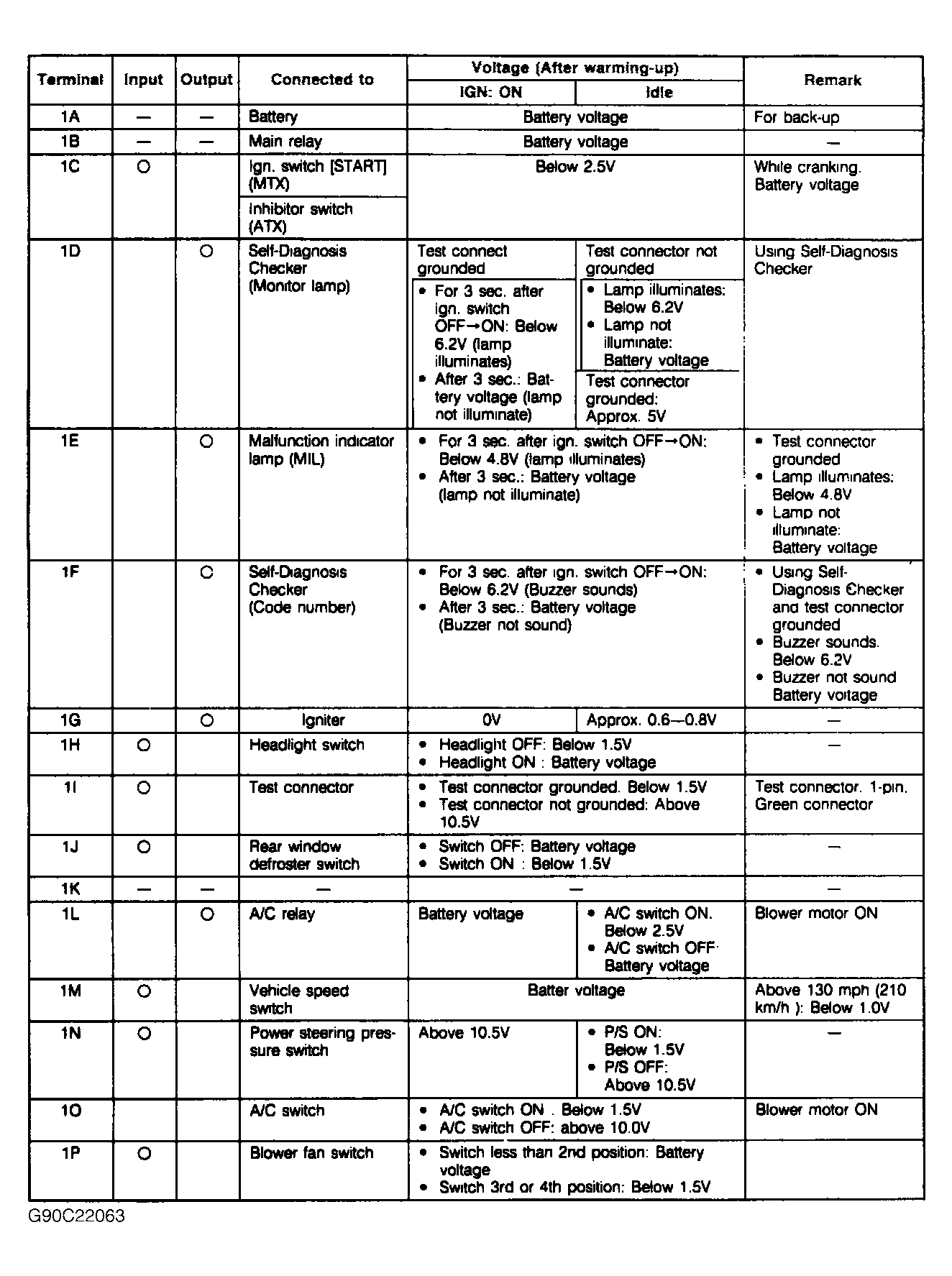

Fig 3: Turbo ECU Pin Voltage Chart (3 of 3)

Courtesy of MAZDA MOTORS CORP.
