Main Relay (Computer/Fuel System): Locations

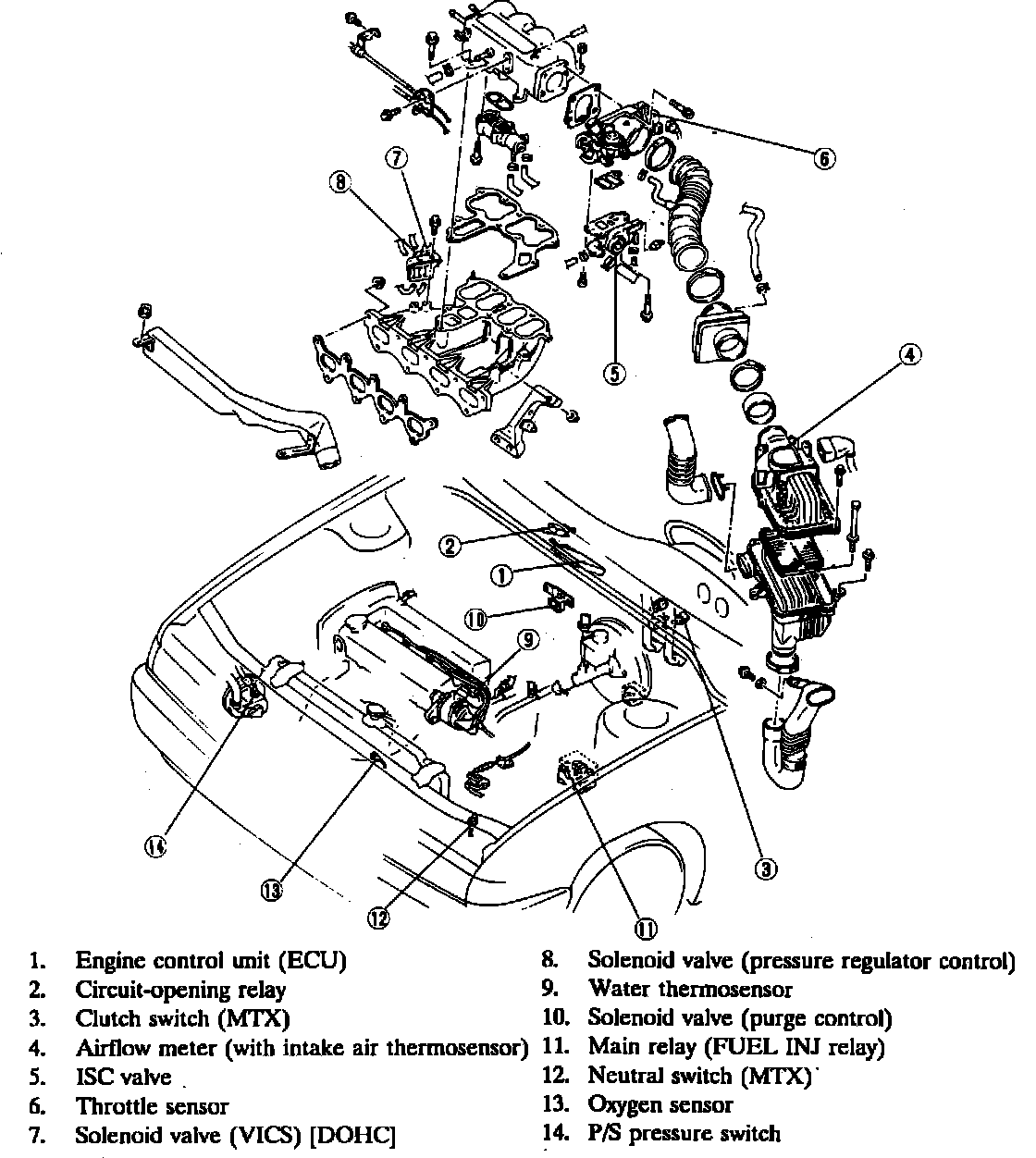

Fuel System (Control) Component Locations:

LH Side Of Engine Compartment
