MPV L4-2606cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Computers and Control Systems

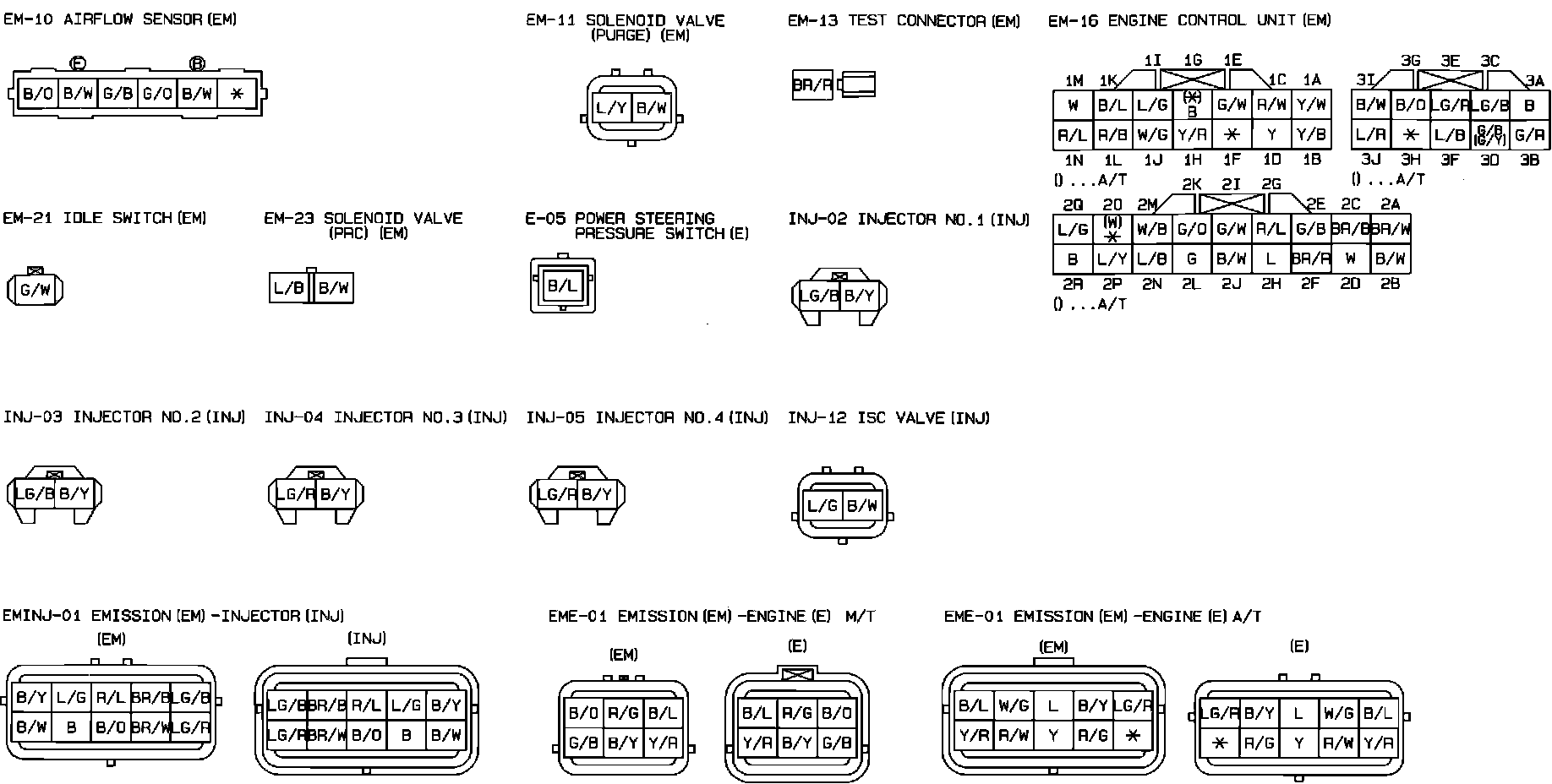

Engine Control. 2.6L. Connector Identification:

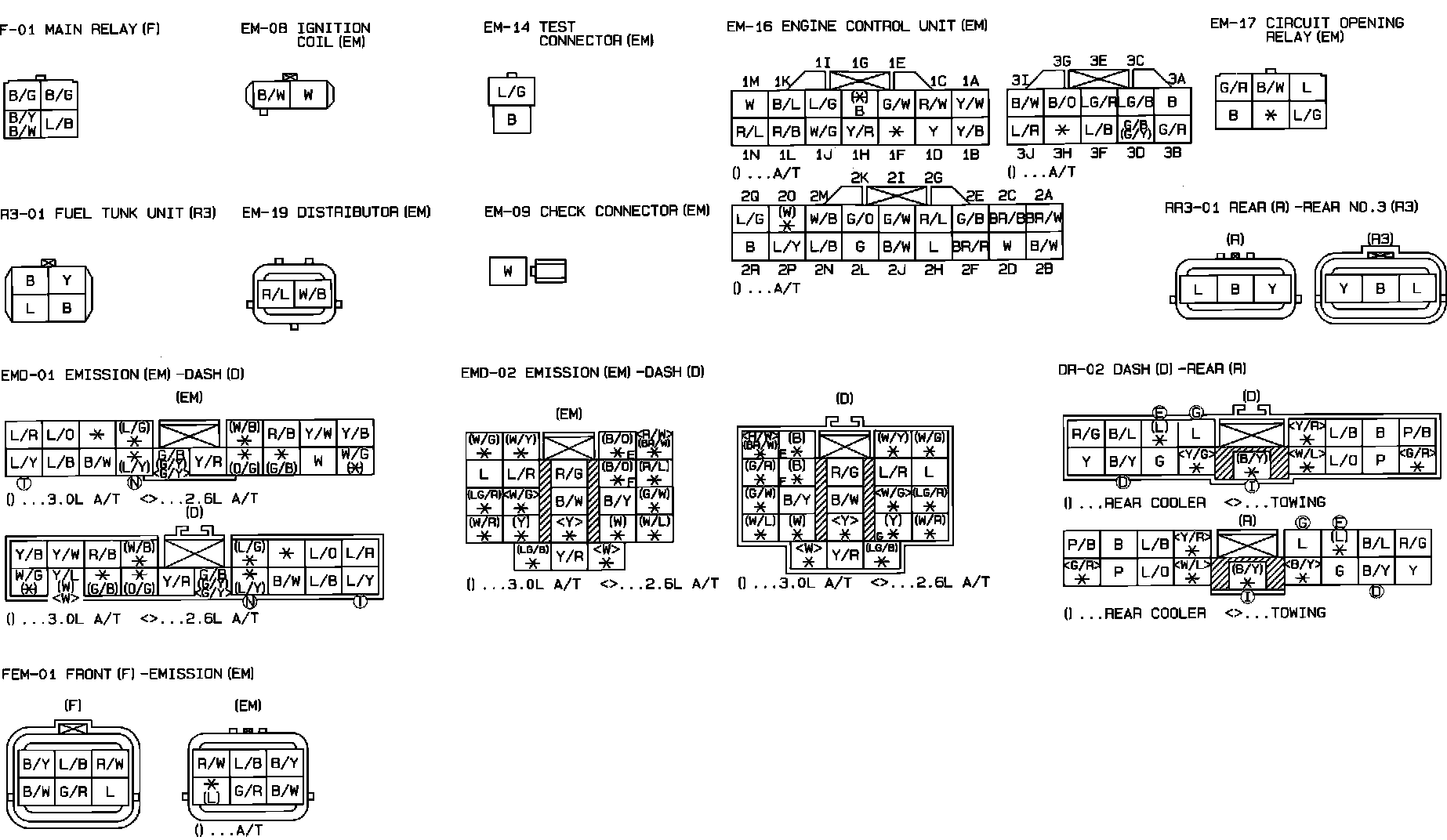

Engine Control. 2.6L. Connector Identification:

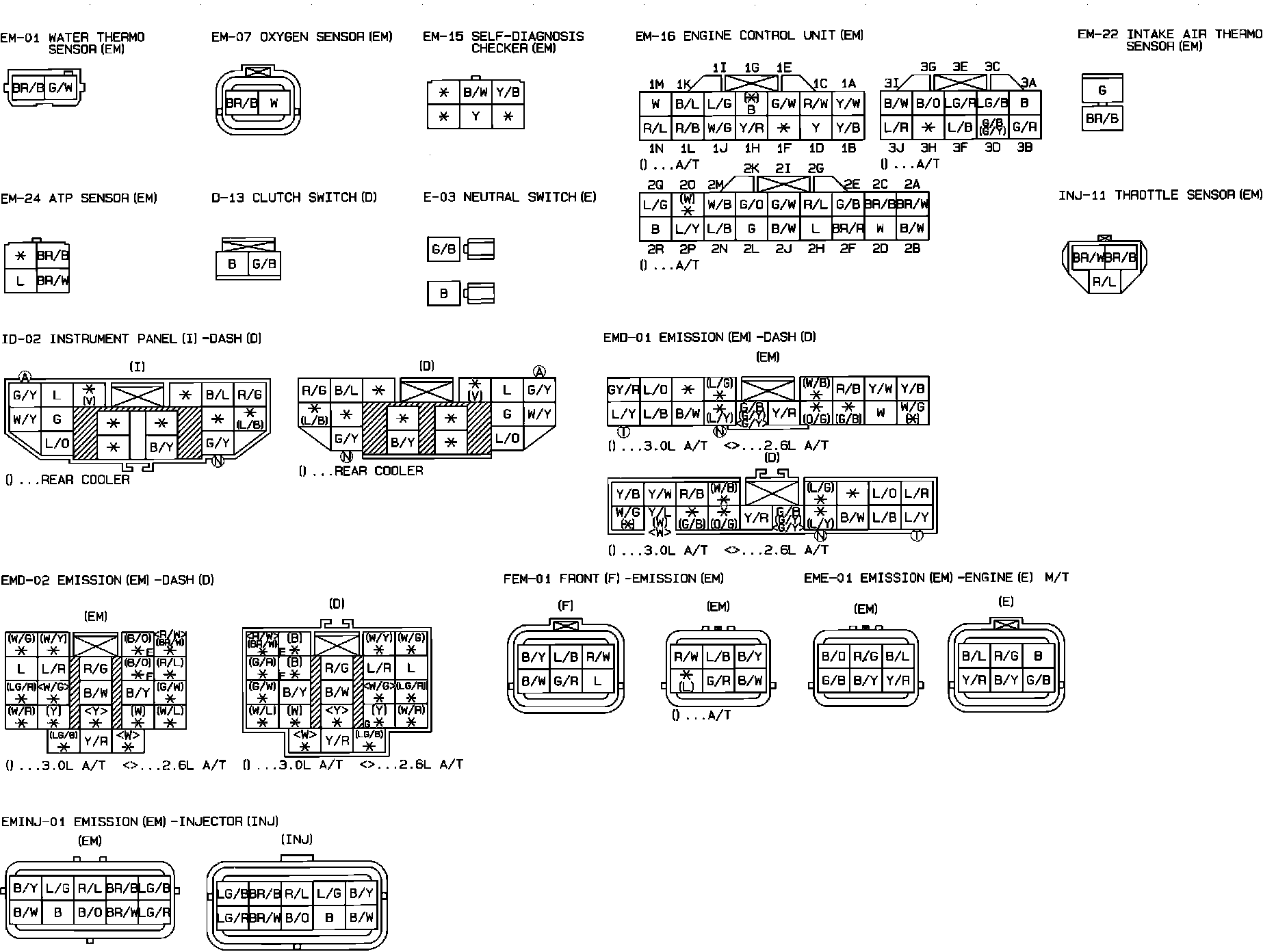

Engine Control. 2.6L. Connector Identification:
