Torque Specifications

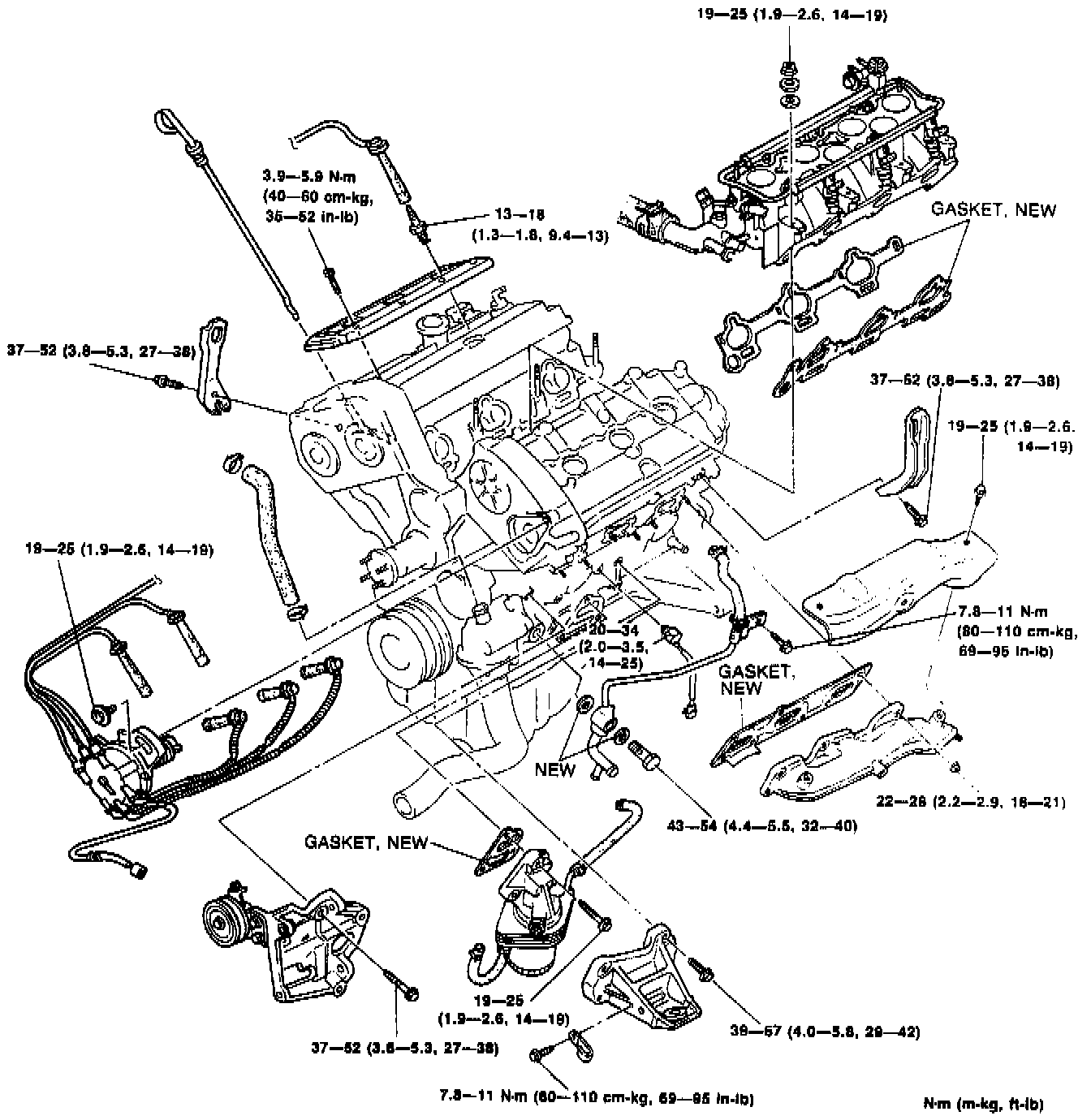

Intake & Exhaust Manifolds:

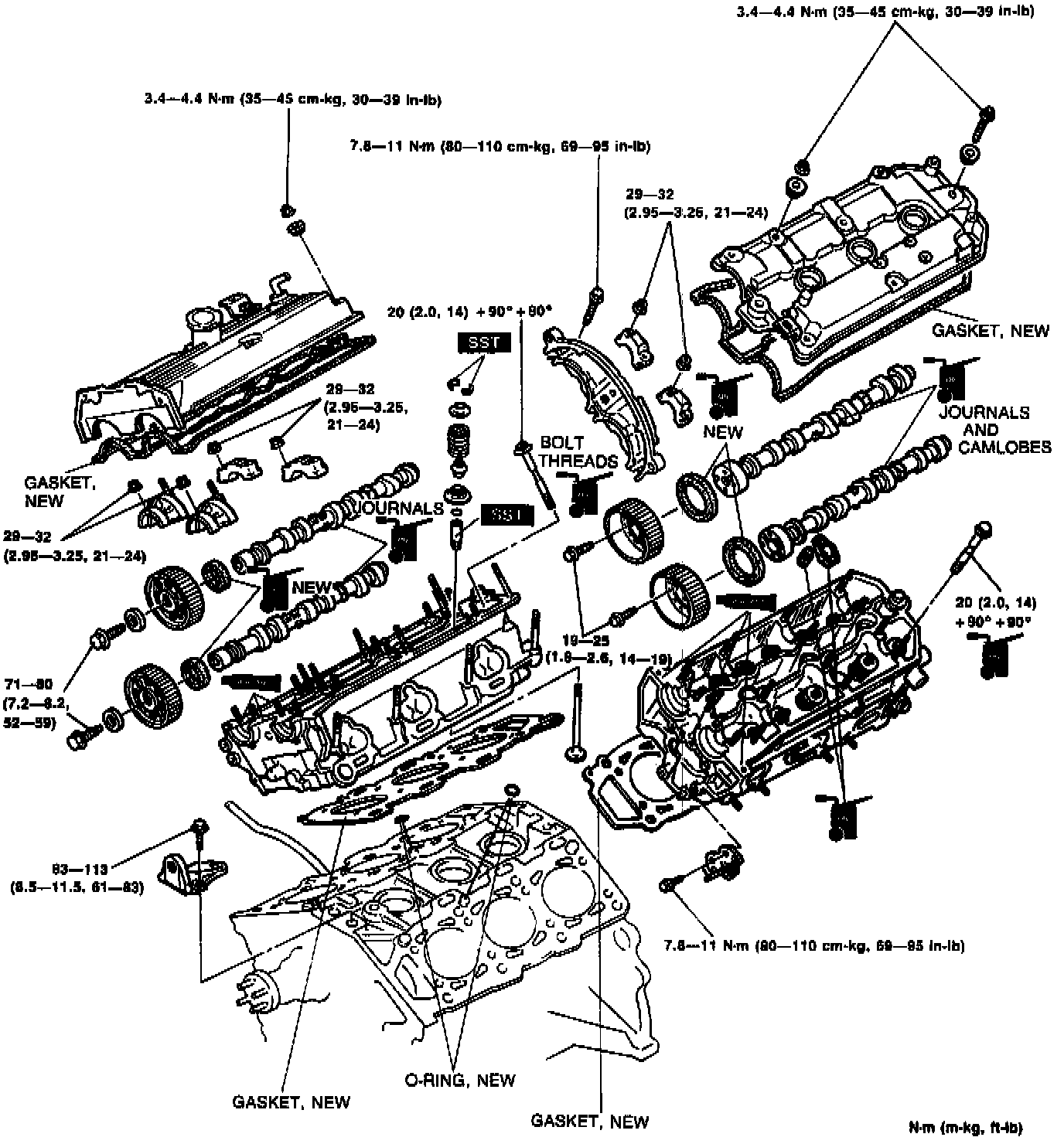

Upper Engine:

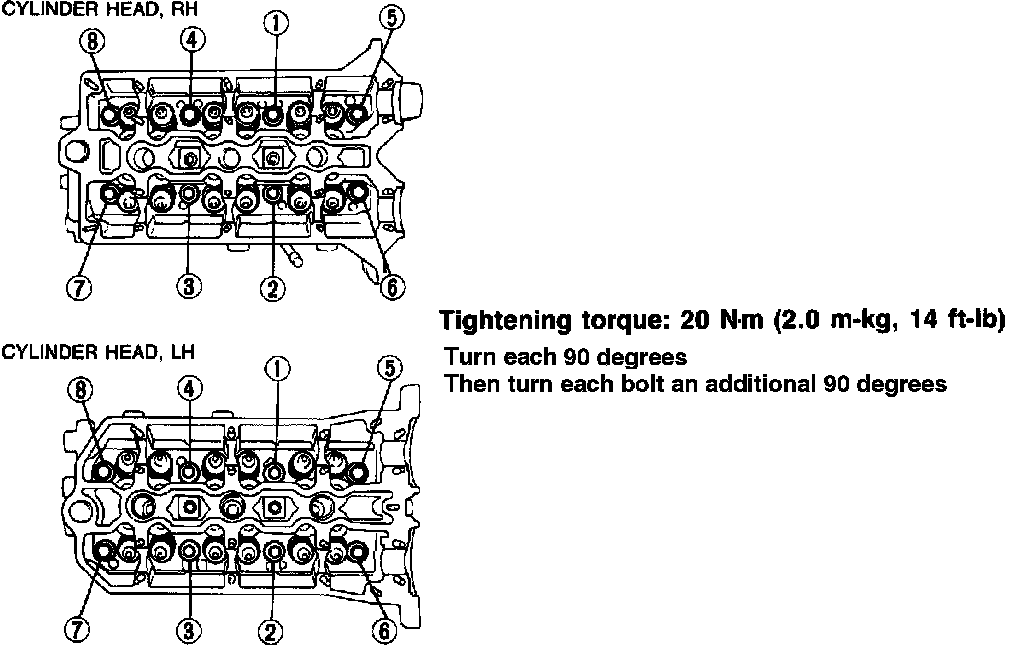

Head Torque/Sequence:






Camshaft Cap Torque/Sequence:











Timing Components:






Timing Cover:

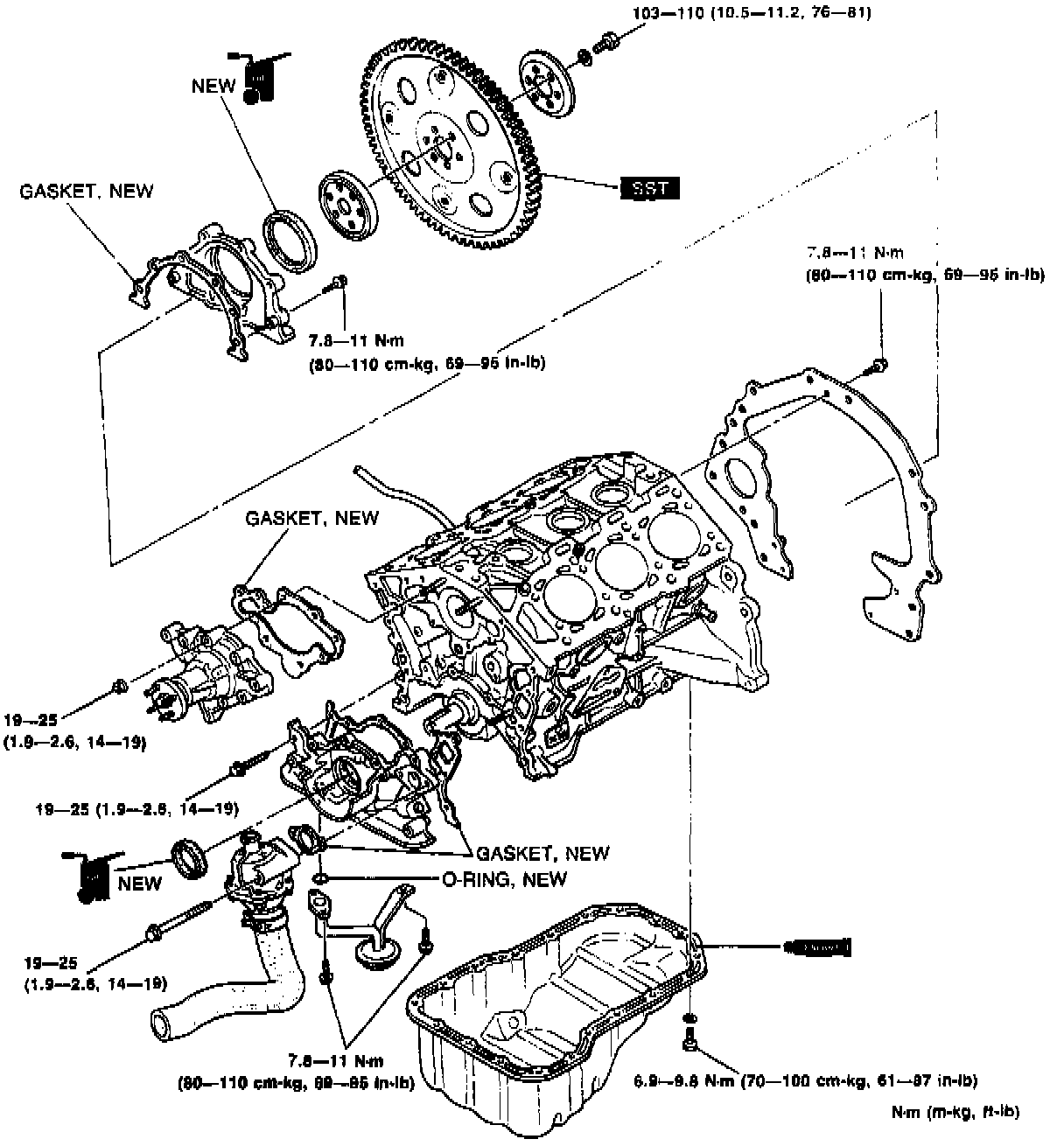

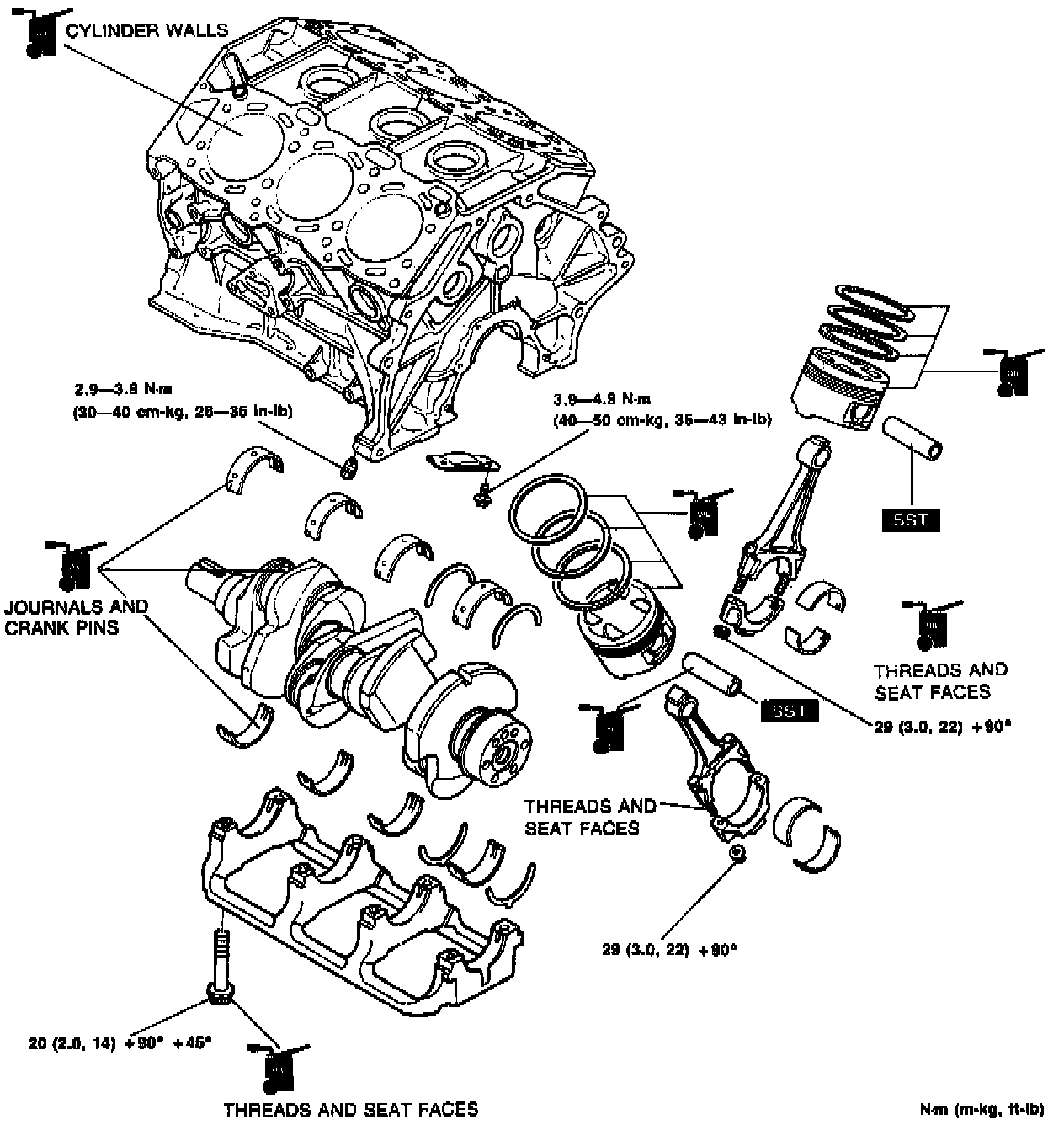

Lower Engine:
