Subframe: Service and Repair

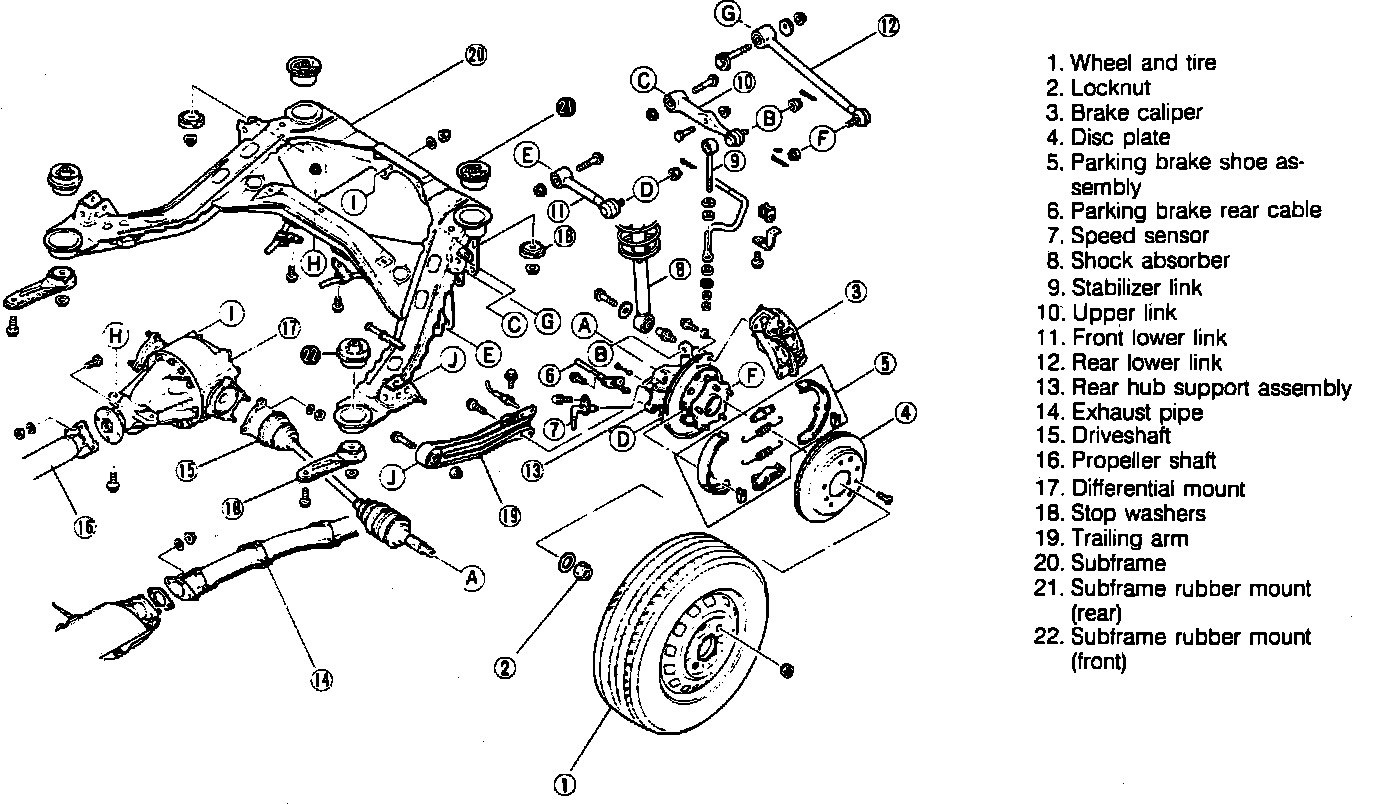

Fig. 8 Subframe Assembly:
When removing or installing subframe assembly, refer to Fig. 8. Reverse numerical removal sequence to install.
When removing or installing subframe assembly, refer to Fig. 8. Reverse numerical removal sequence to install.
