UNDERHOOD Fuse Block Identification (1992-95): Notes

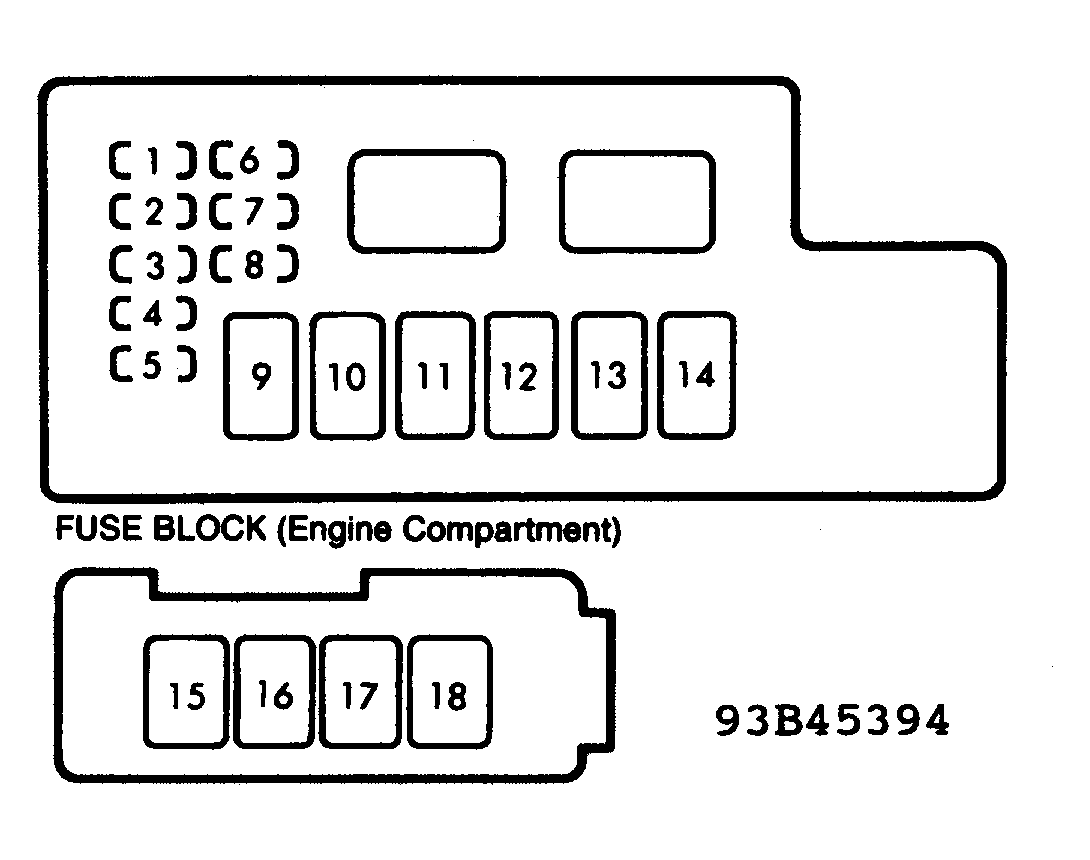

Fig 1: Underhood Fuse Block Identification (1992-95)
G93B45394Courtesy of MAZDA MOTOR OF AMERICA, INC.
WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
