Code 41: SOHC Variable Resonance Induction Solenoid Valve

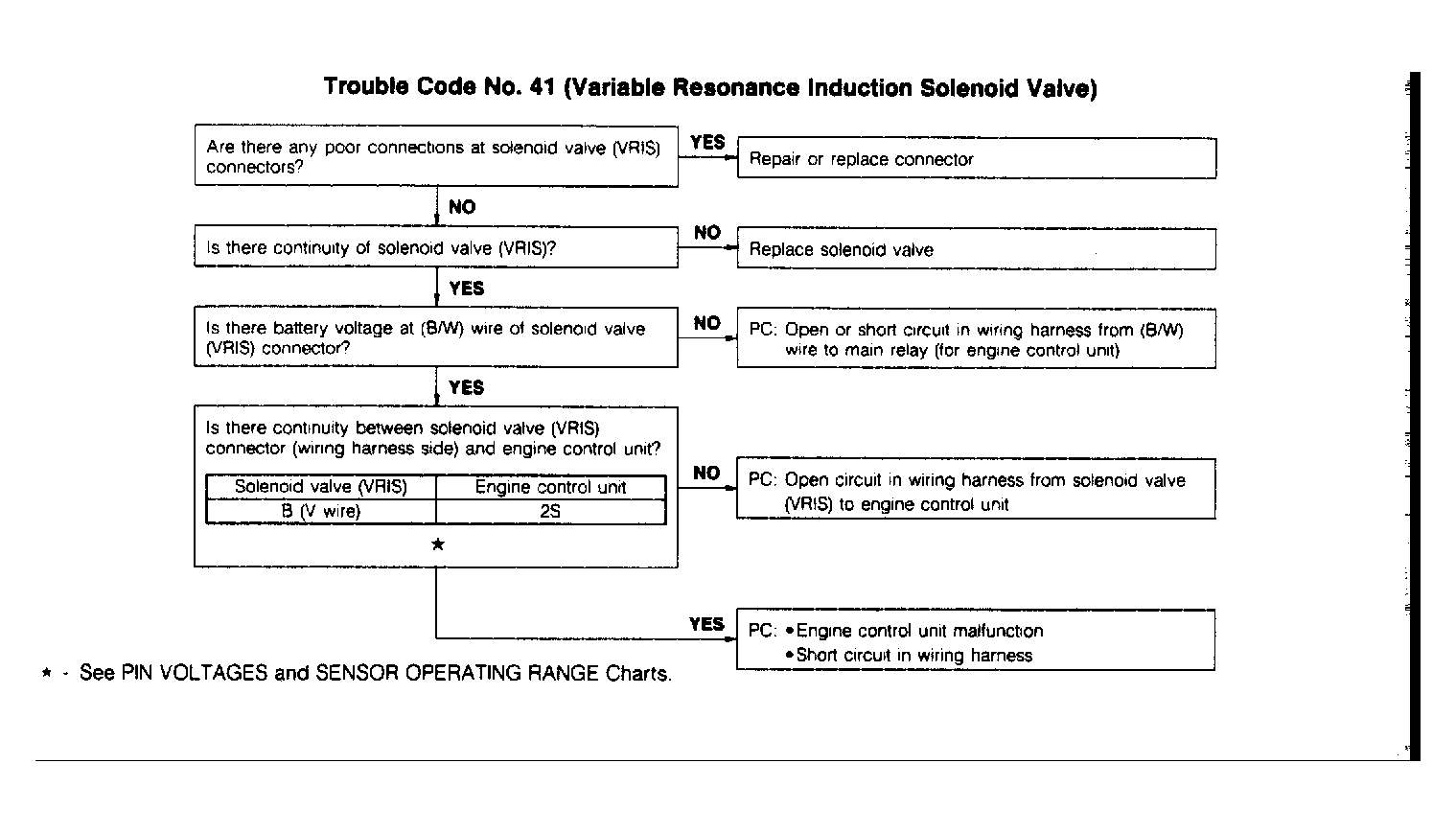

Fig 1: Code 41: Variable Resonance Induction System Flow Chart
G90I21541Courtesy of MAZDA MOTORS CORP.
