Home >> Mazda >> 1990 >> 626 L4-2184cc 2.2L SOHC F2 >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations >> Connector Locations >> With Additional Fan System >> Less Logical Mode Control Control A/C

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Less Logical Mode Control Control A/C

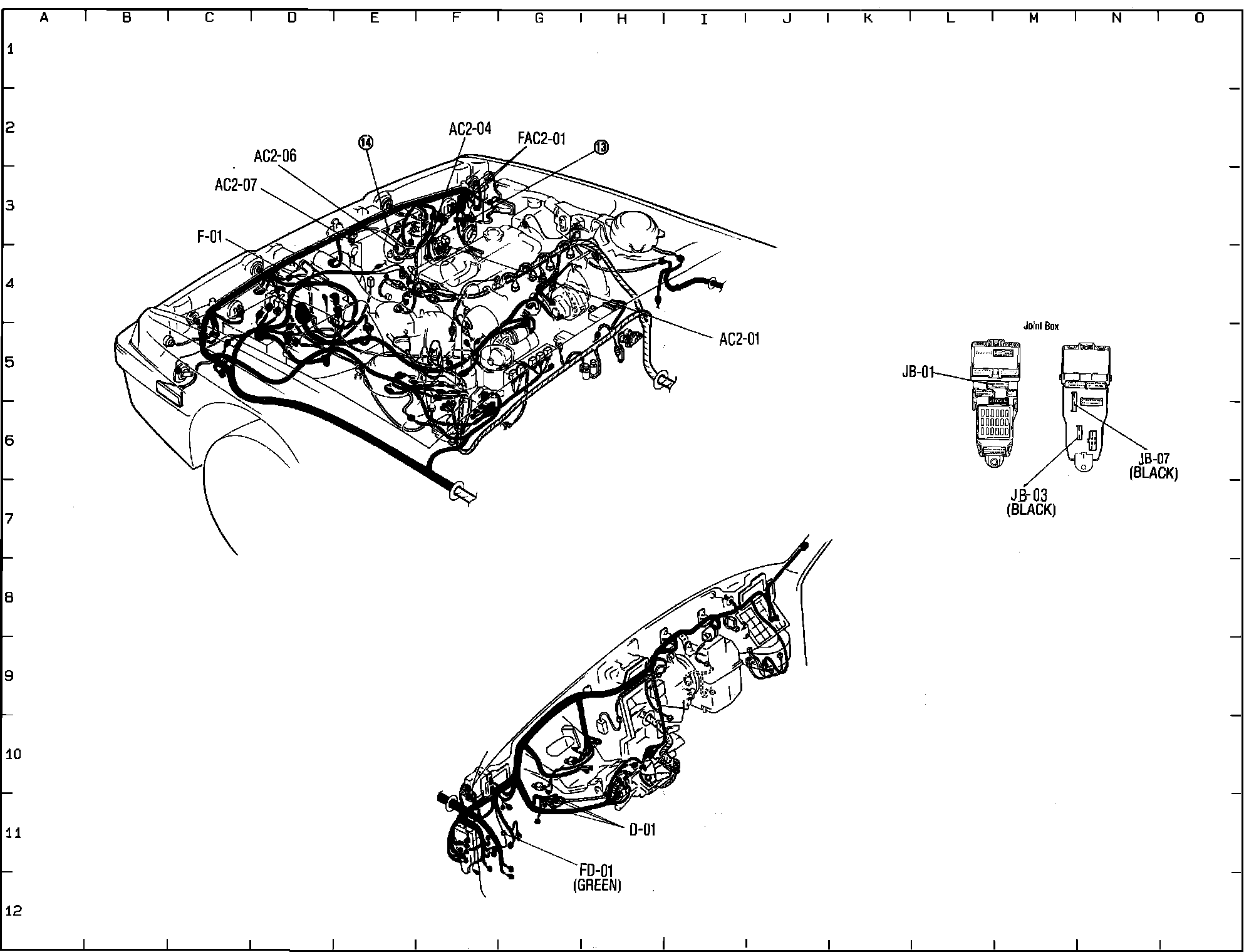

Additional Fan System. Without Logical Mode Control. Harness Locations:
