626 L4-2184cc 2.2L SOHC F2
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Disc Brake System
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

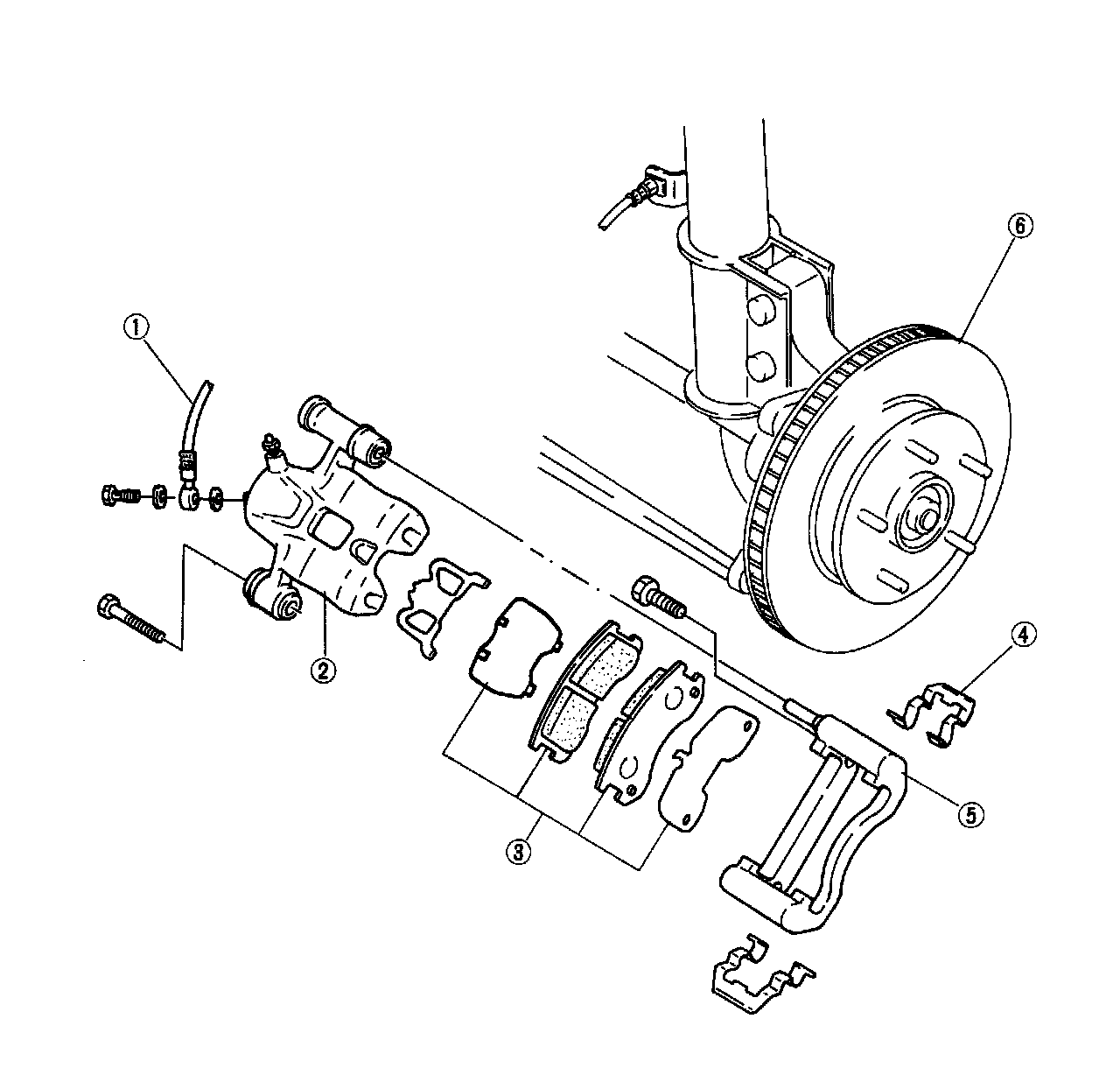

System Diagram
1.
Flexible hose
2.
Caliper assembly
3.
Pad and shim
4.
Guide plate
5.
Mounting support
6.
Disc plate
