Removal (323)

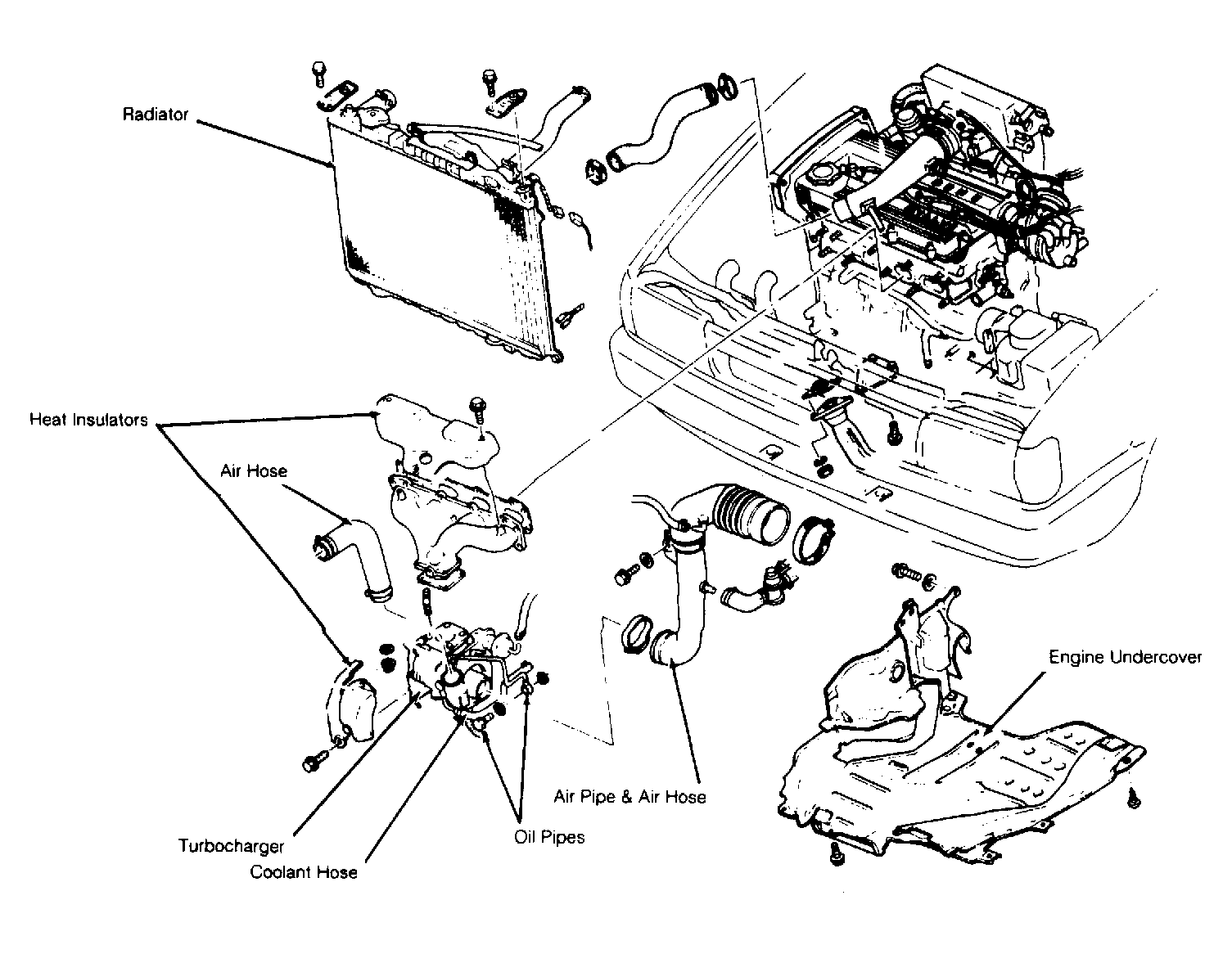

- Remove engine undercover. Drain engine coolant. Remove radiator. Remove intake air pipe and intake air hoses.
- Remove turbocharger heat insulators. Remove coolant hoses from turbocharger. Remove oil pipes from turbocharger.
- Loosen bolts securing turbocharger to bracket. Remove nuts attaching exhaust pipe to turbocharger. Remove nuts attaching turbocharger to exhaust manifold. Remove turbocharger.
