Electric Load Sensor: Locations

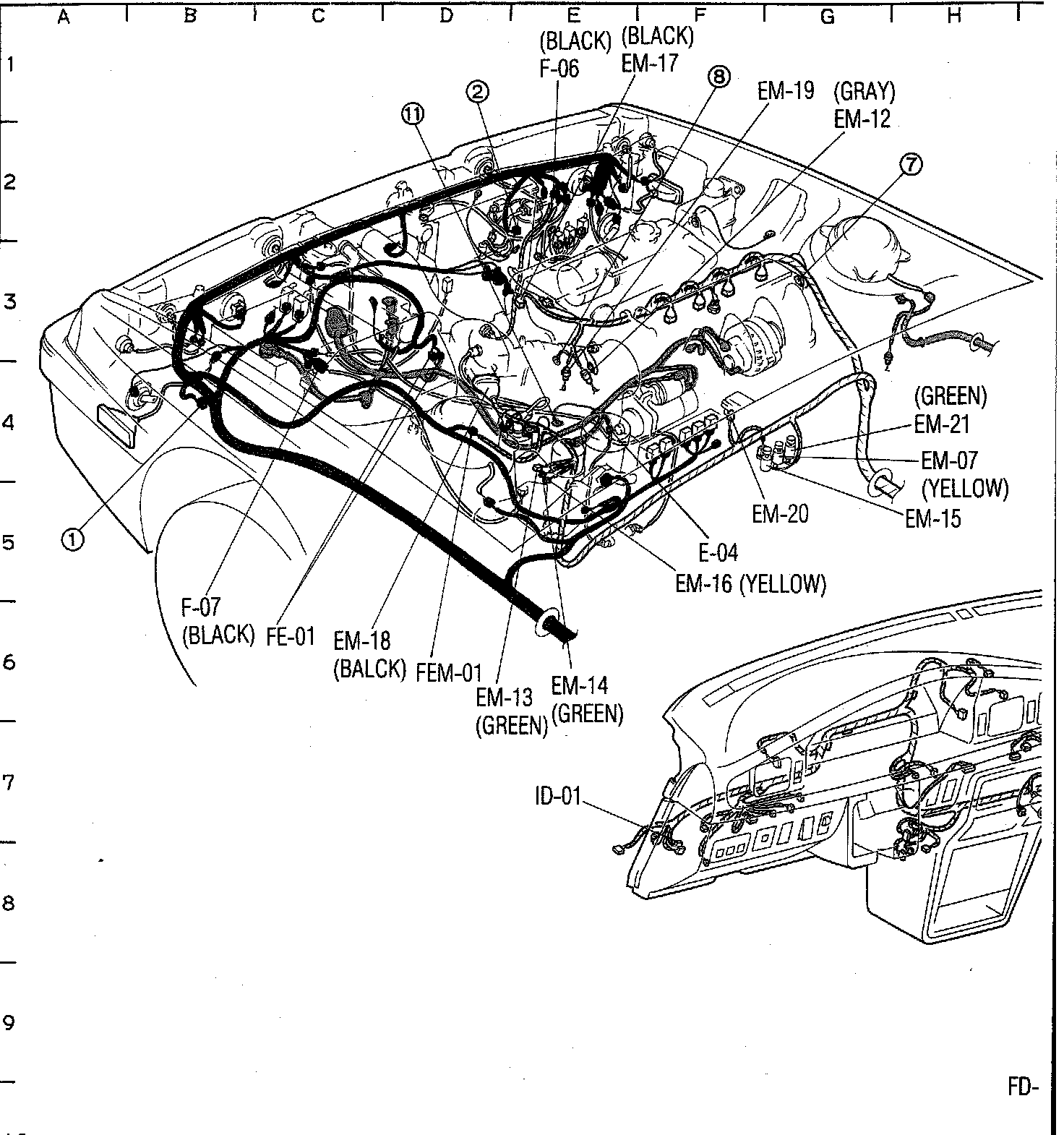

Fuel Tank Sending Unit, Fuel Injection & Ignition System. Non Turbo:

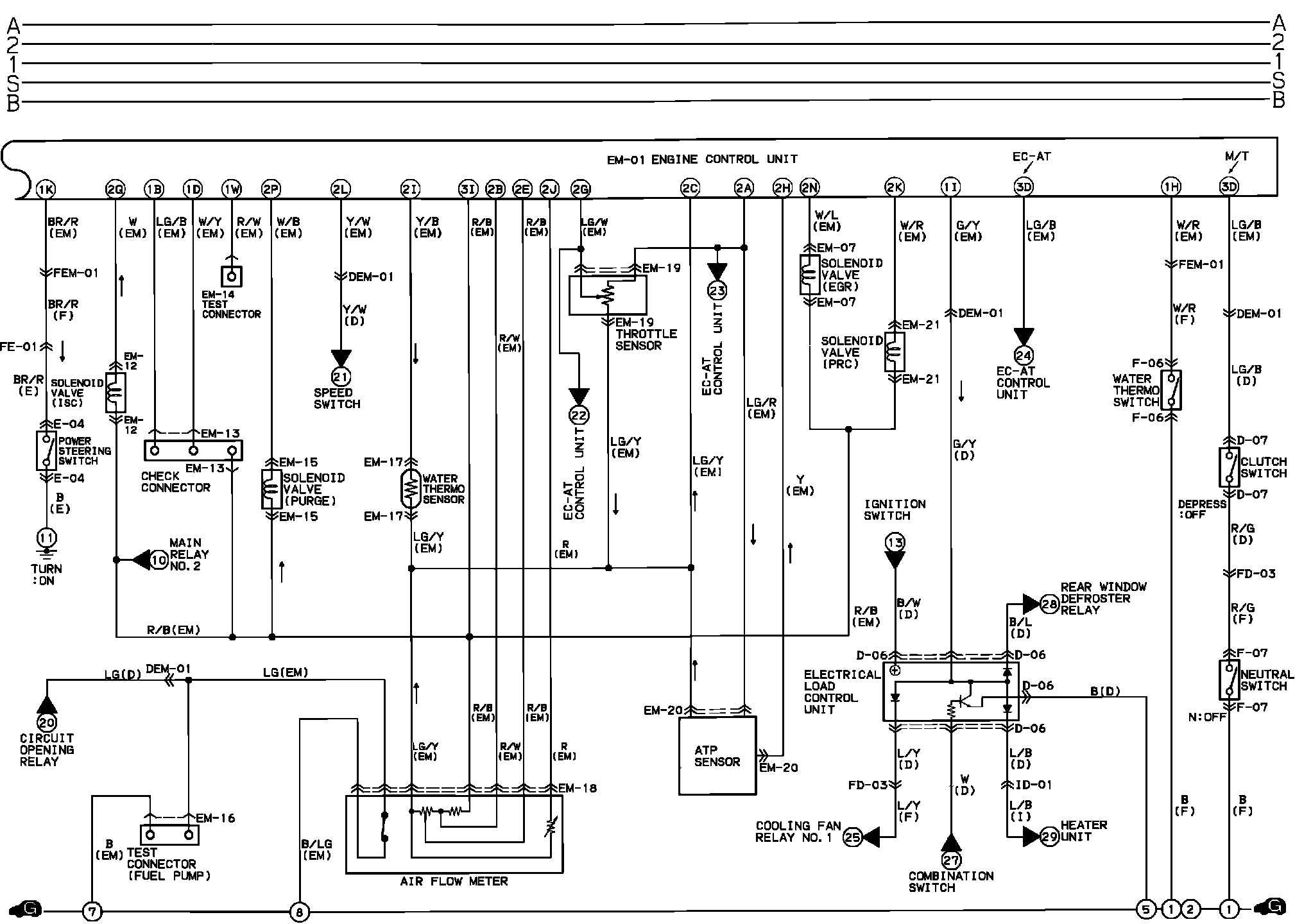

Fuel Injection System. Non Turbo:

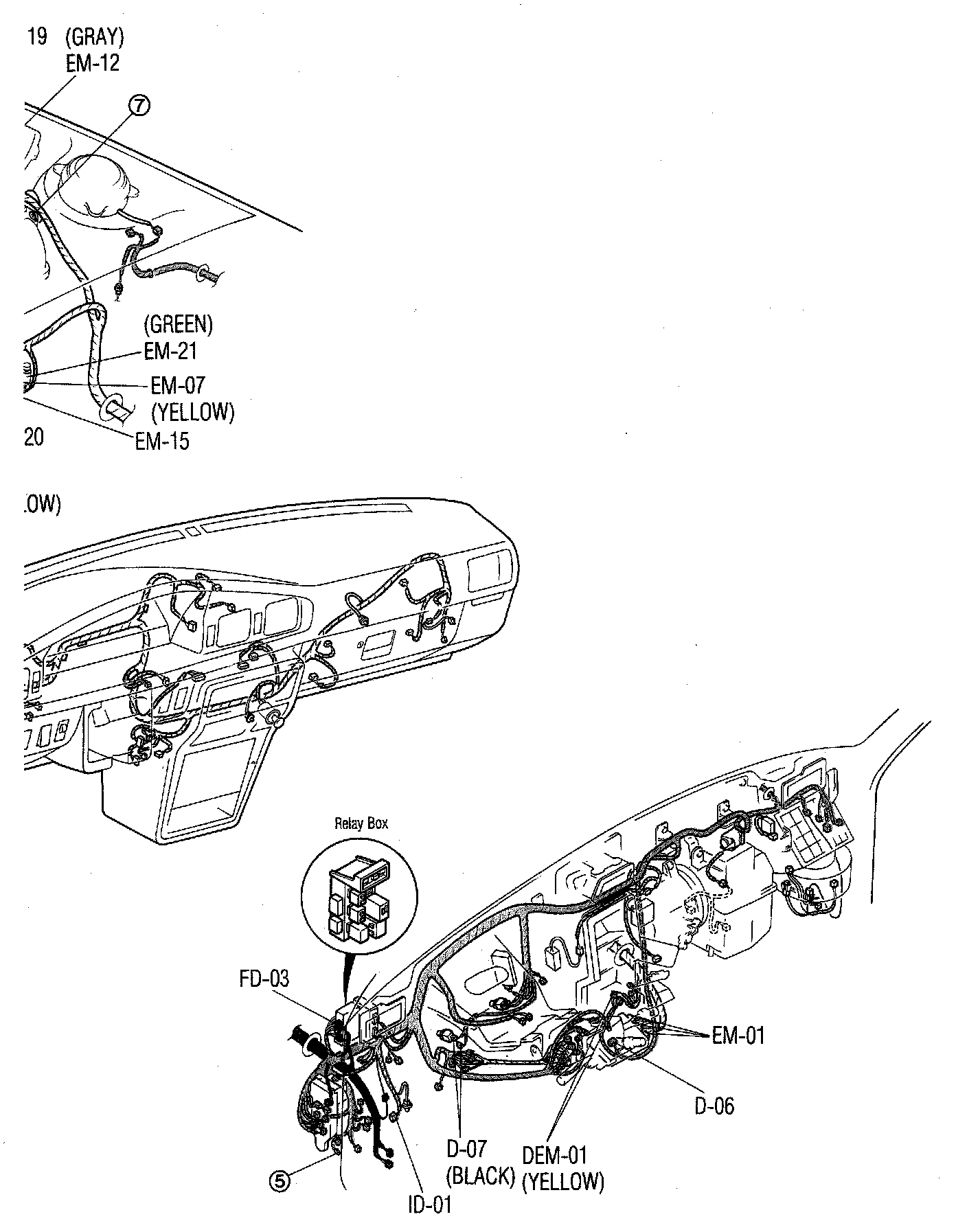

Center Of Dash
Applicable to: Non-Turbocharged Engine
