Electric Load Sensor: Testing and Inspection


Engine Load Control Unit Location And Terminal Identification:





1. Connect a voltmeter between the engine load control unit and ground.
2. Start the engine and check the terminal voltages as described in the chart below.

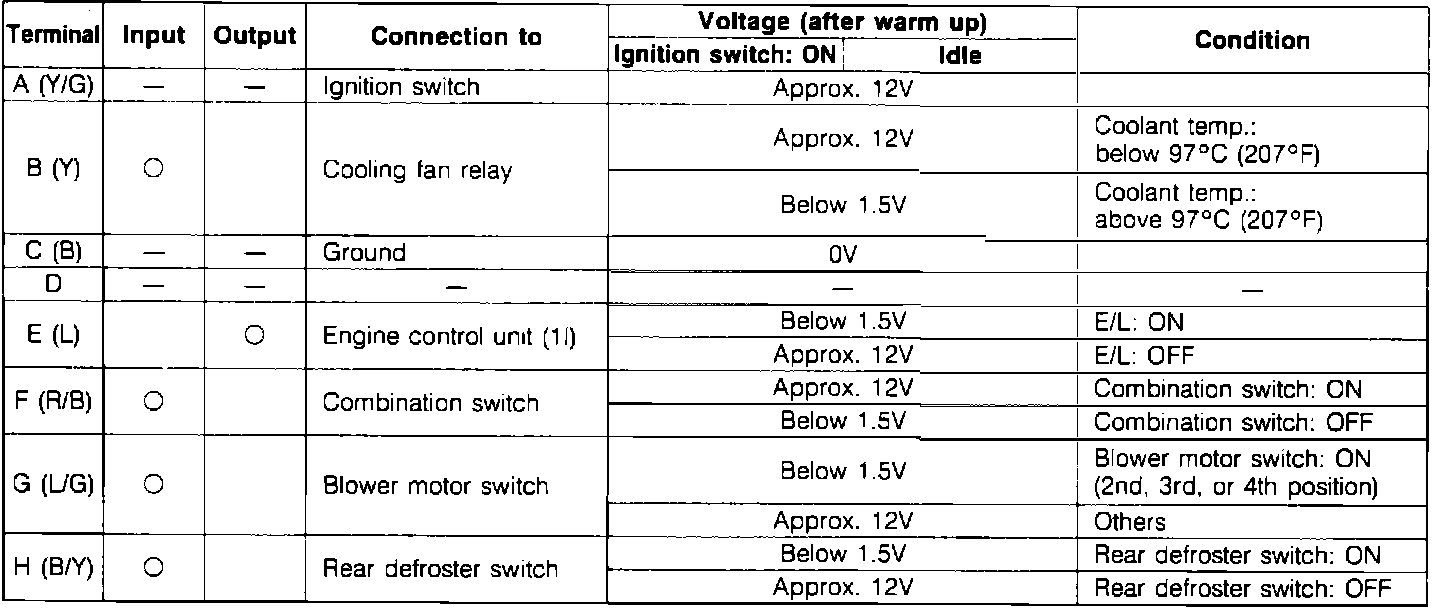

Engine Load Control Unit Chart:
