System Troubleshooting

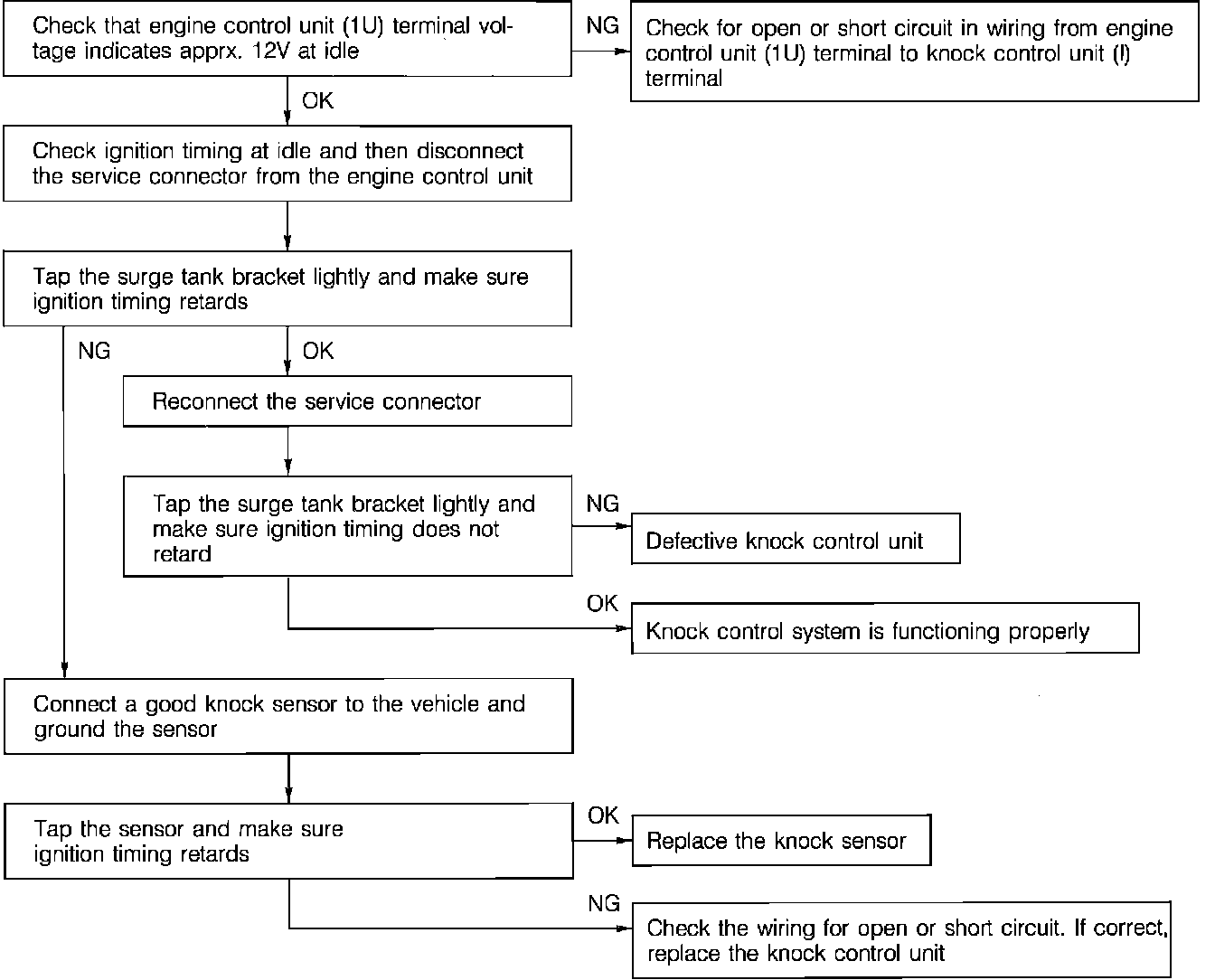

Fig. 28 Knock control system troubleshooting chart:

This troubleshooting, Fig. 28, is made for devices concerning the knock control system. Therefore this troubleshooting should be performed after first checking the distributor (pick-up coil, spark advances), the ignition coil, the spark plugs, and the high tension leads.
